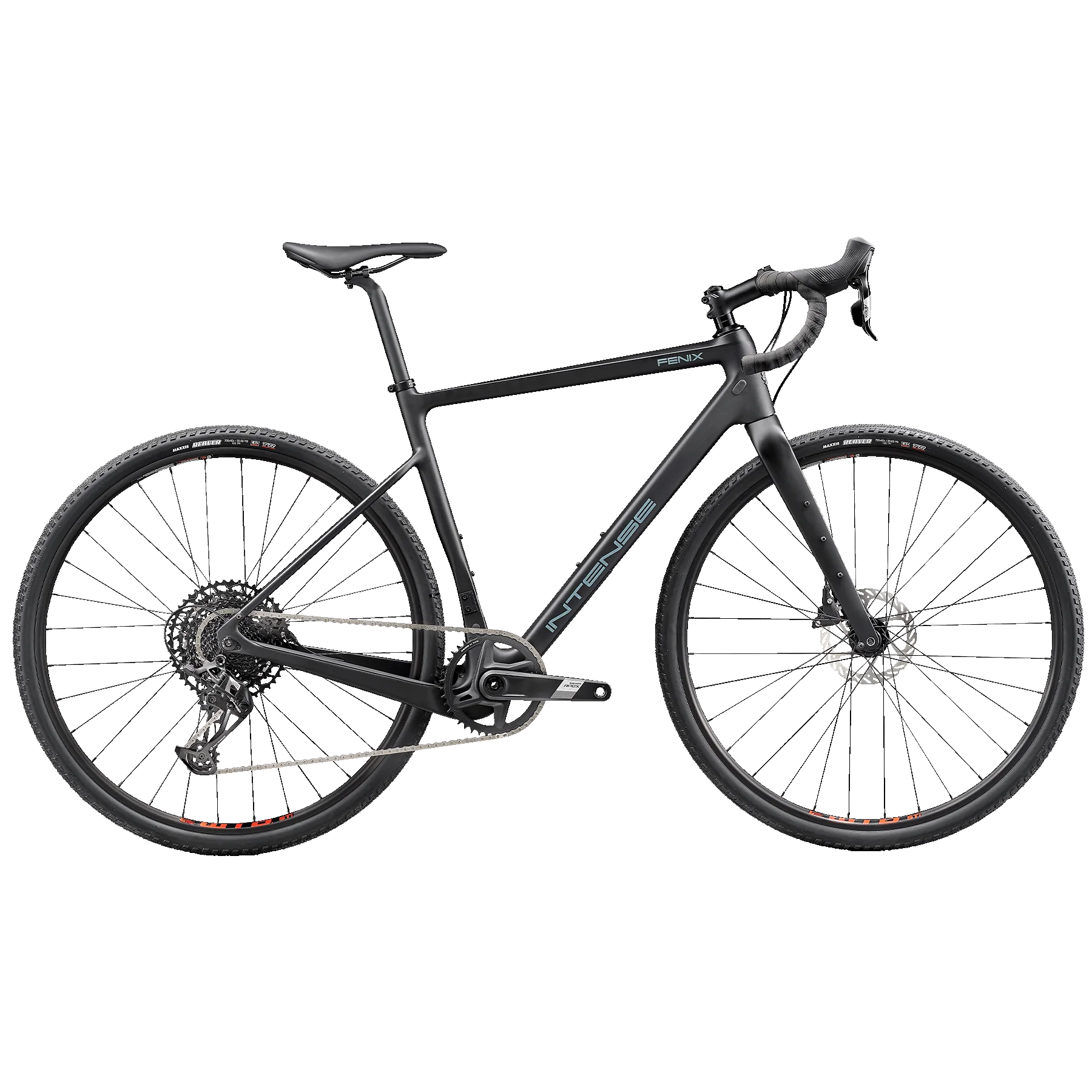

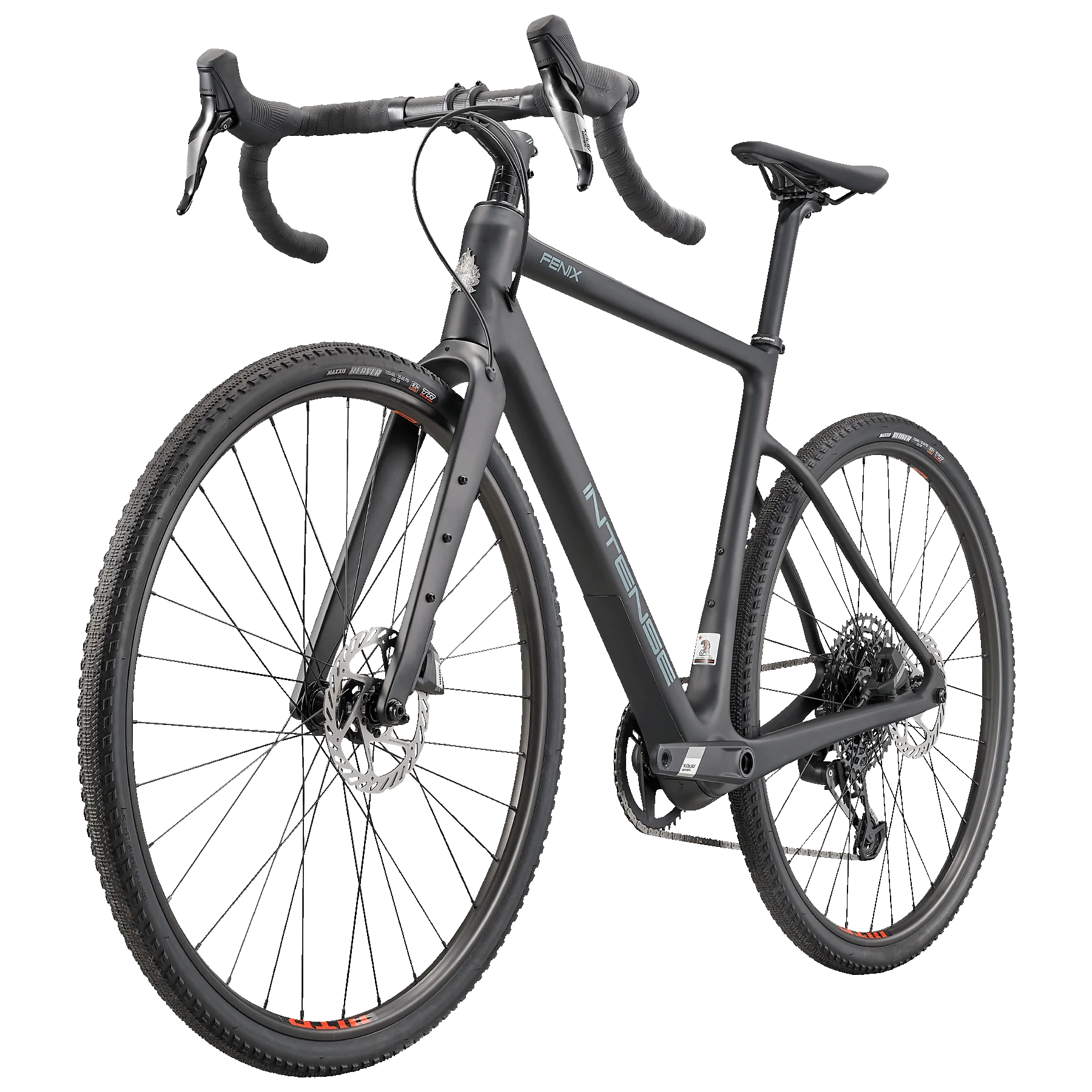

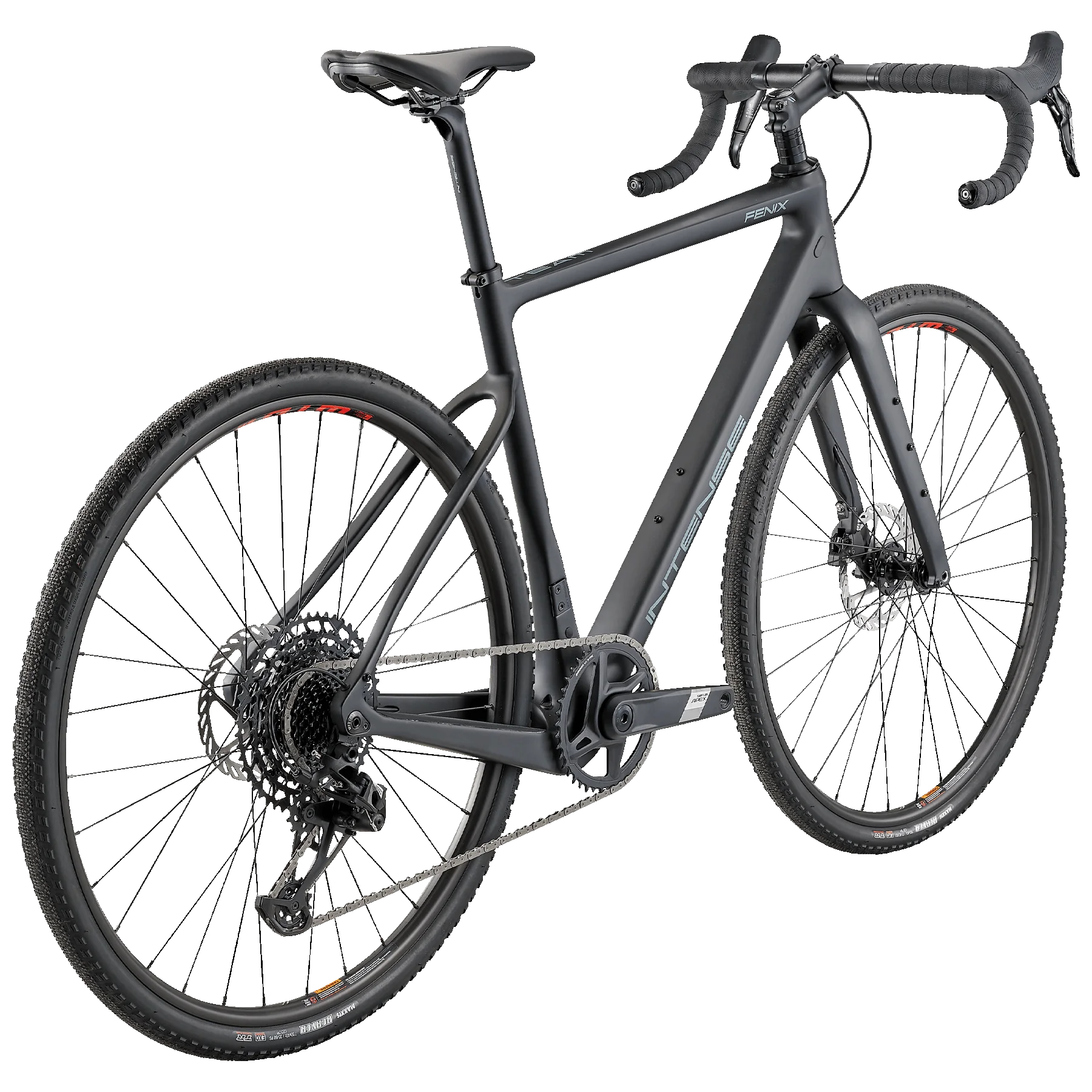

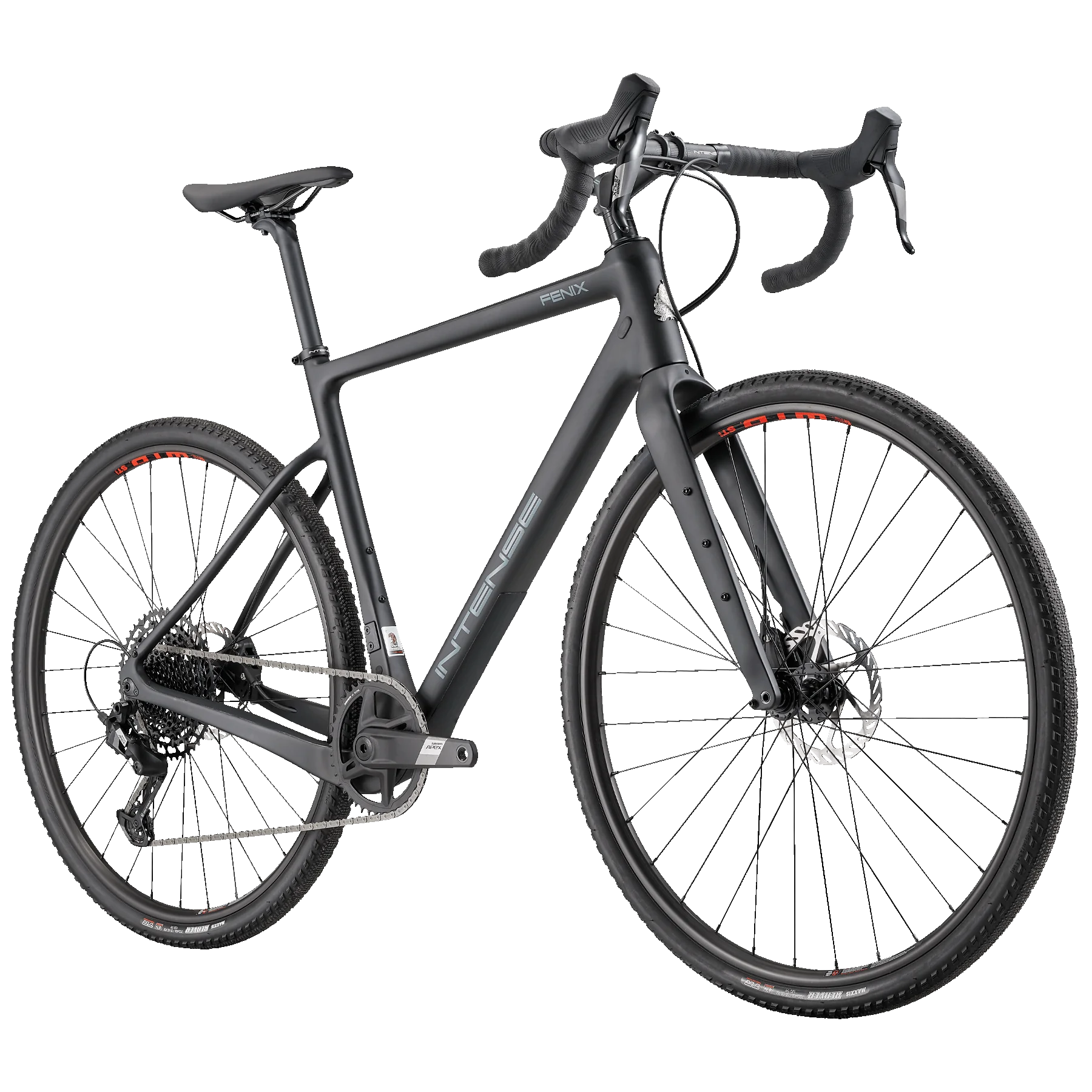

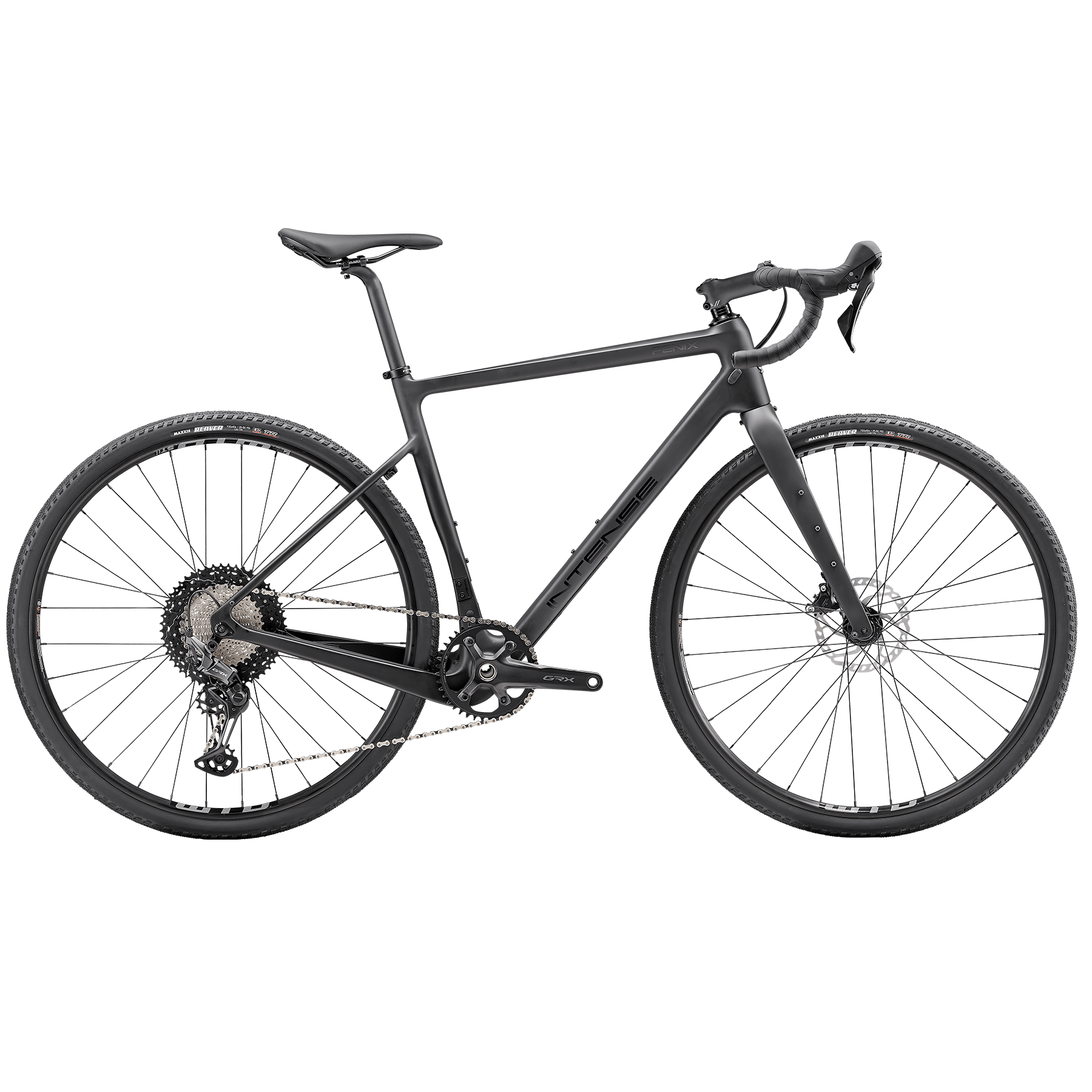

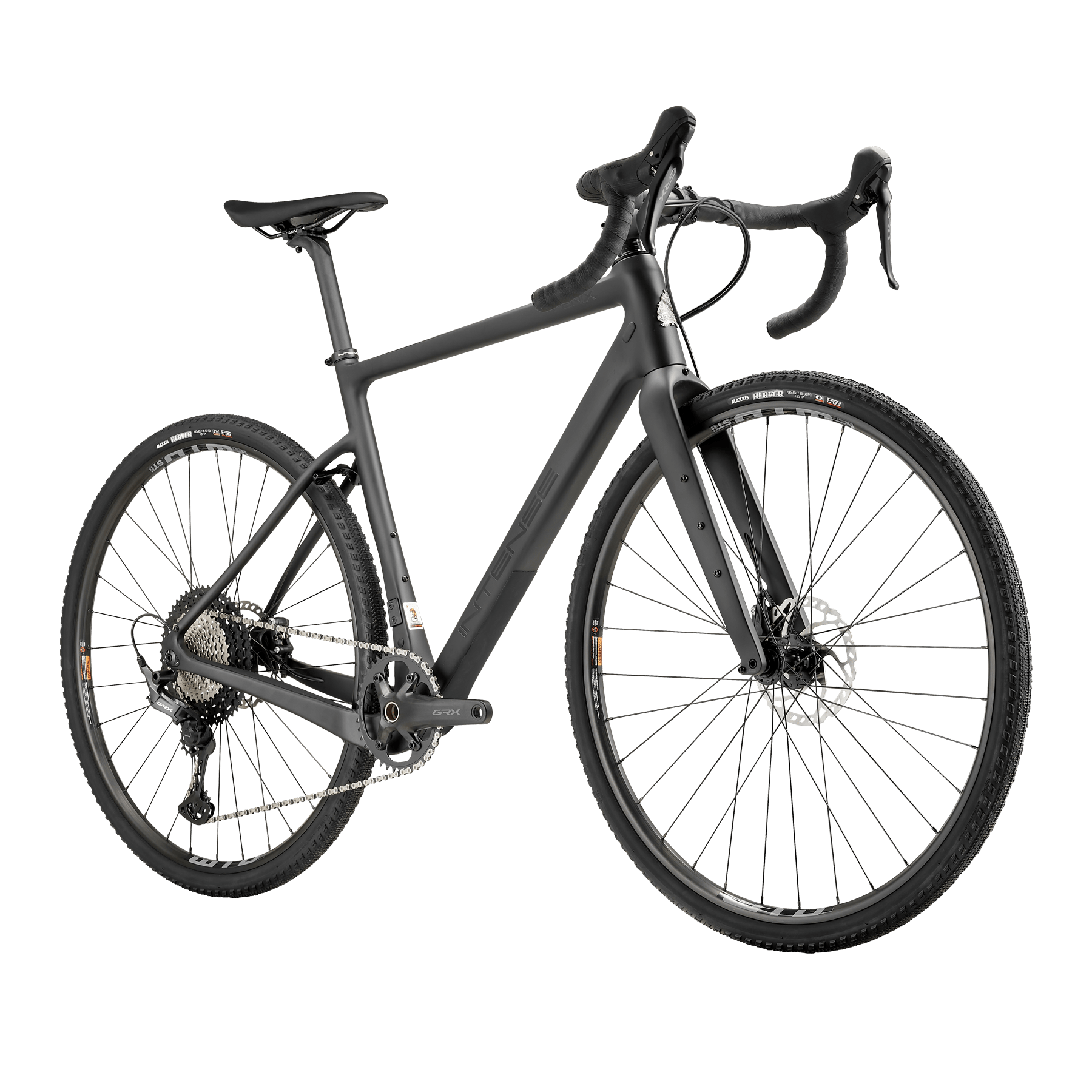

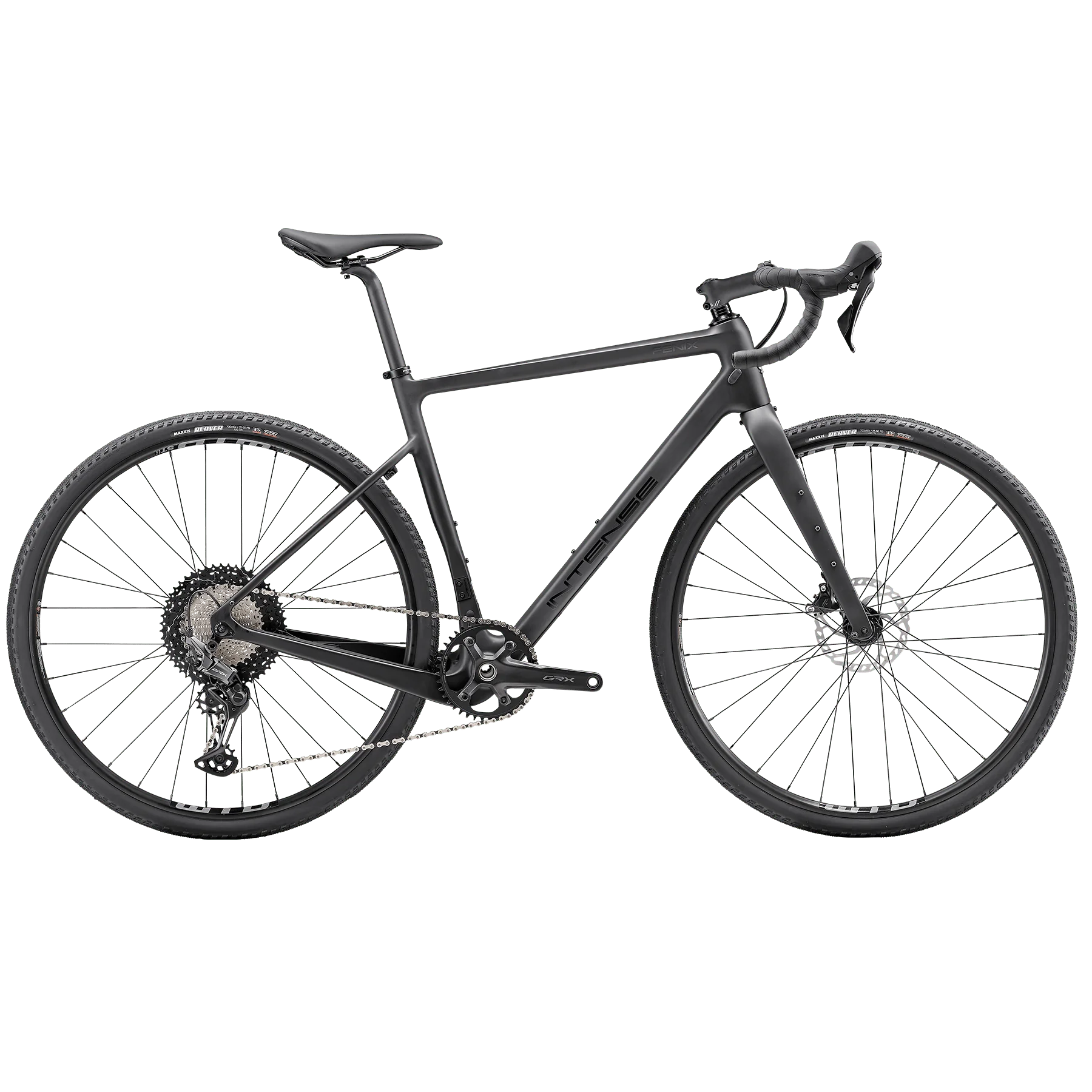

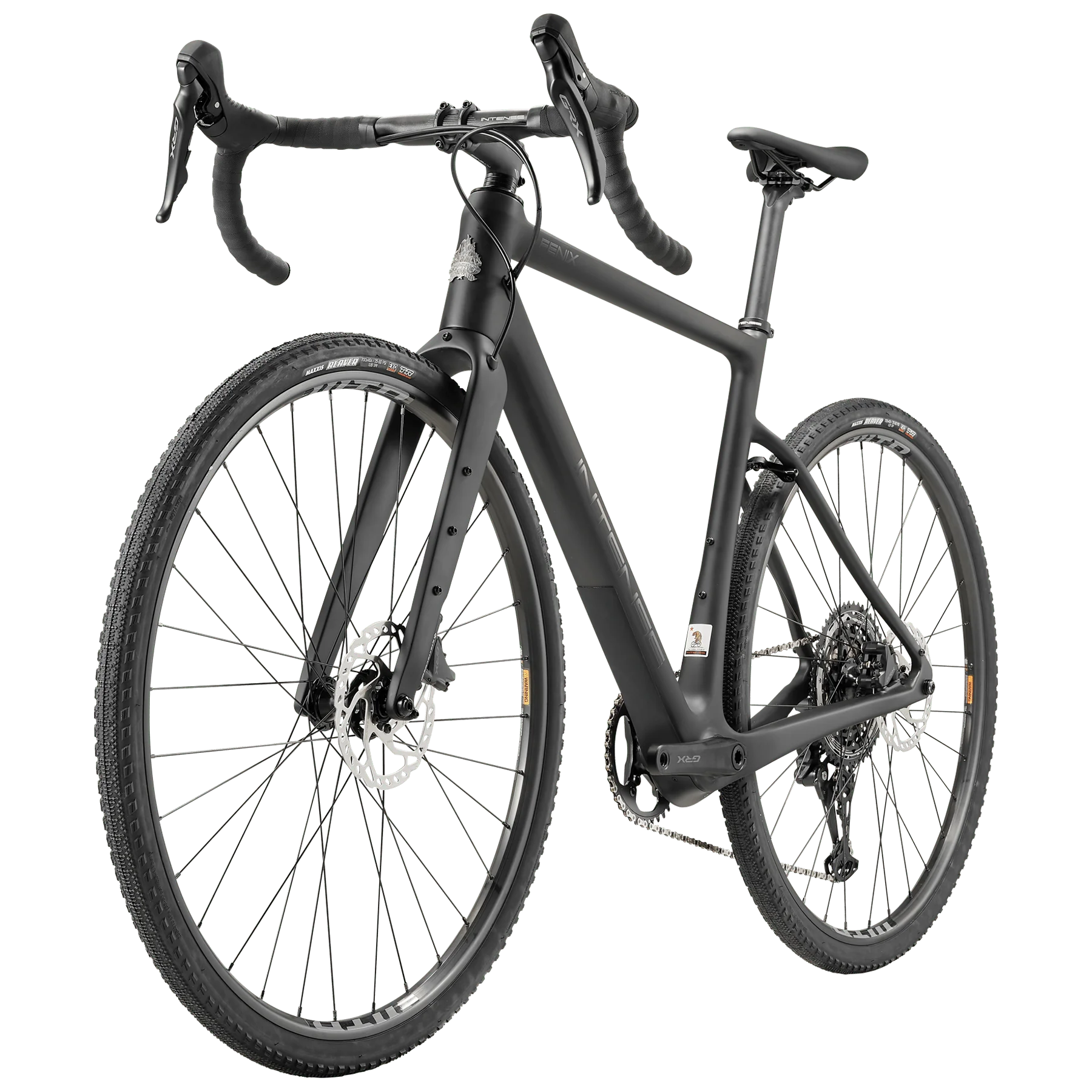

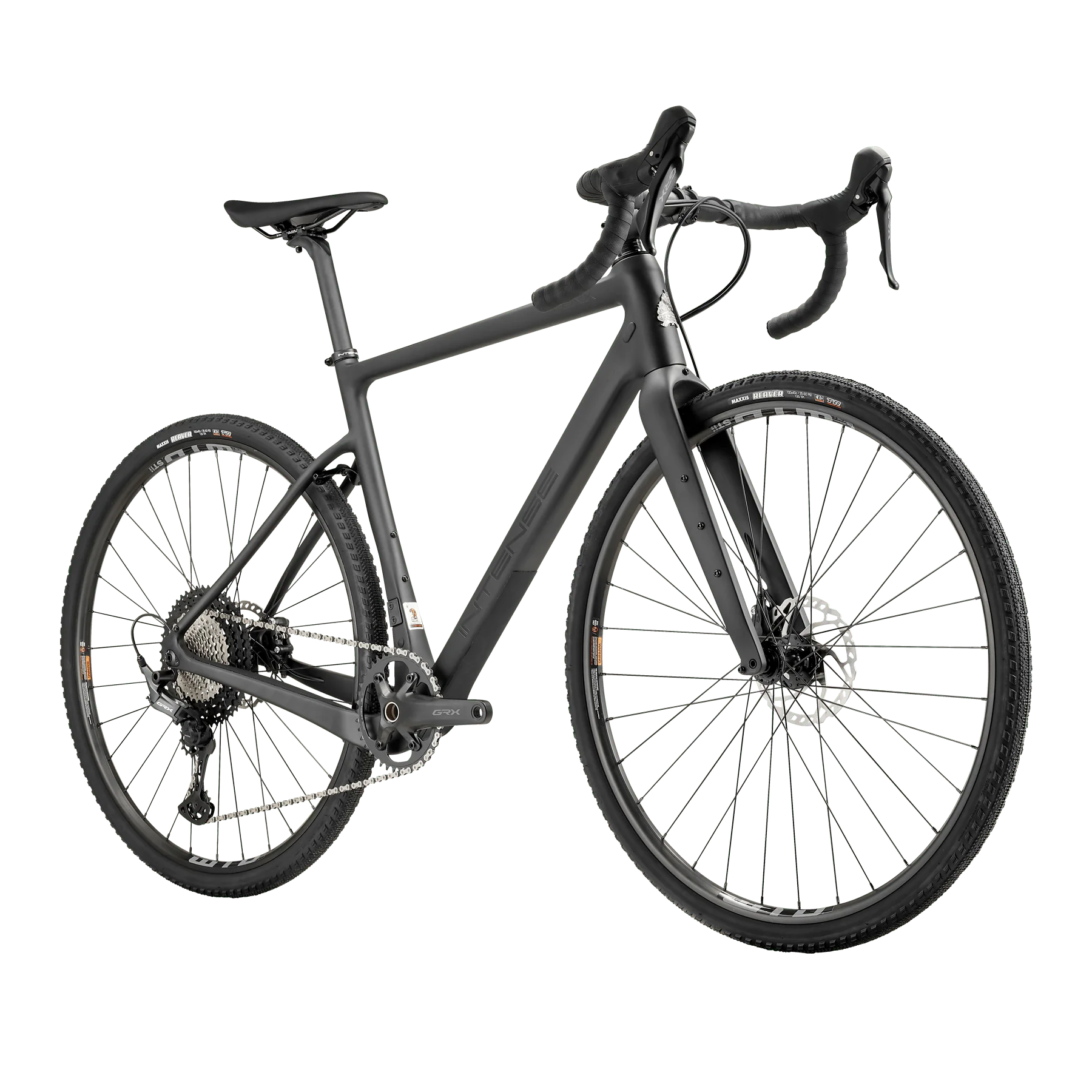

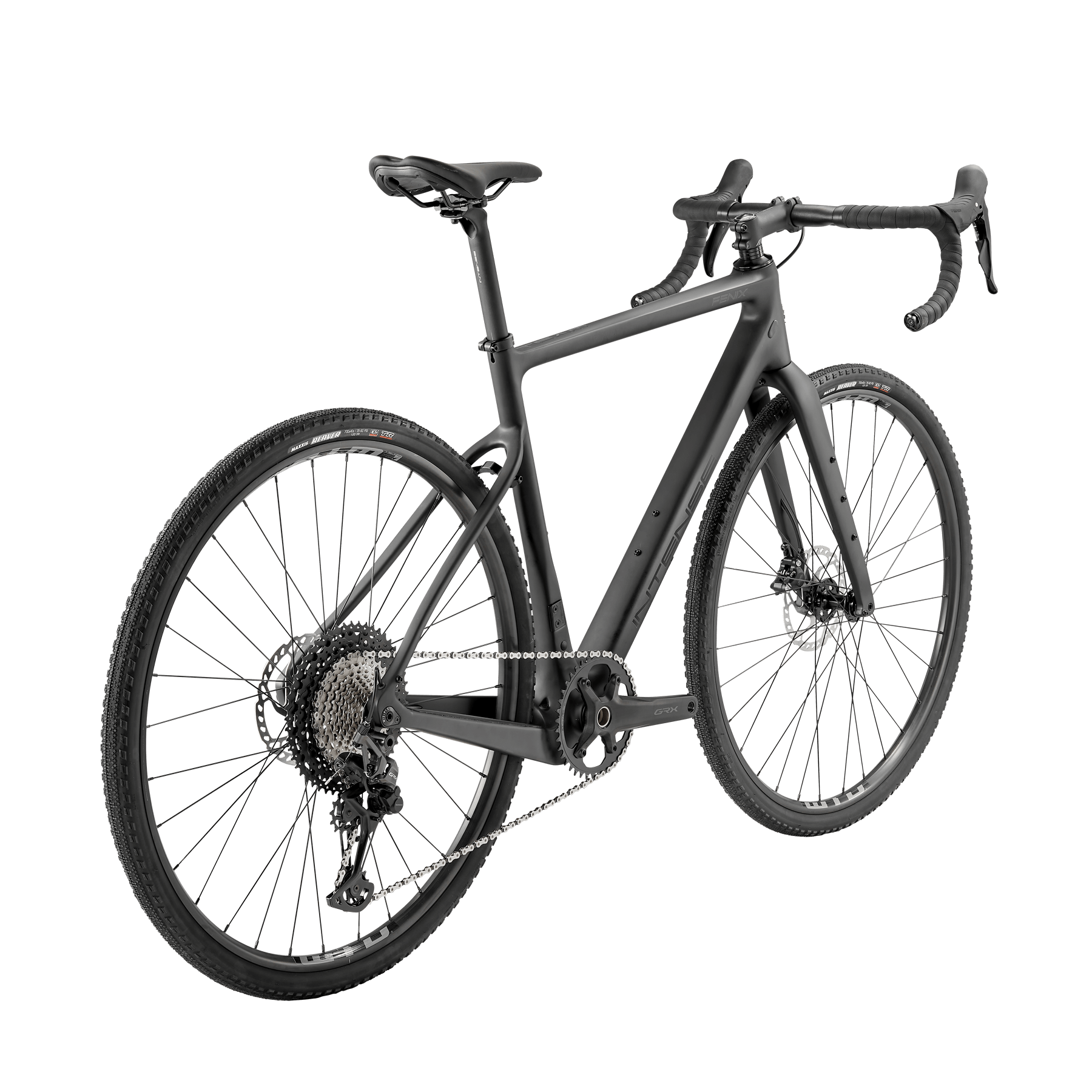

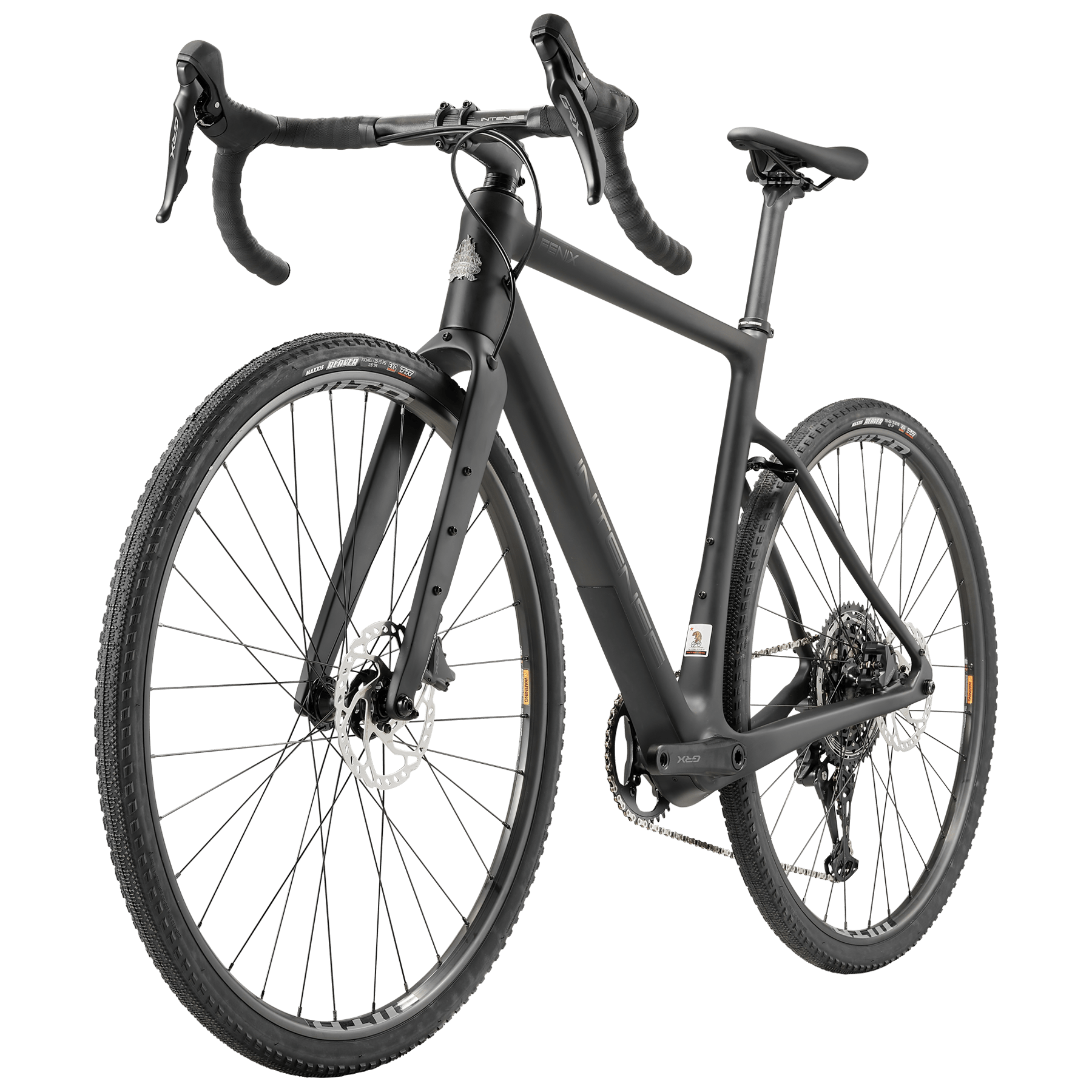

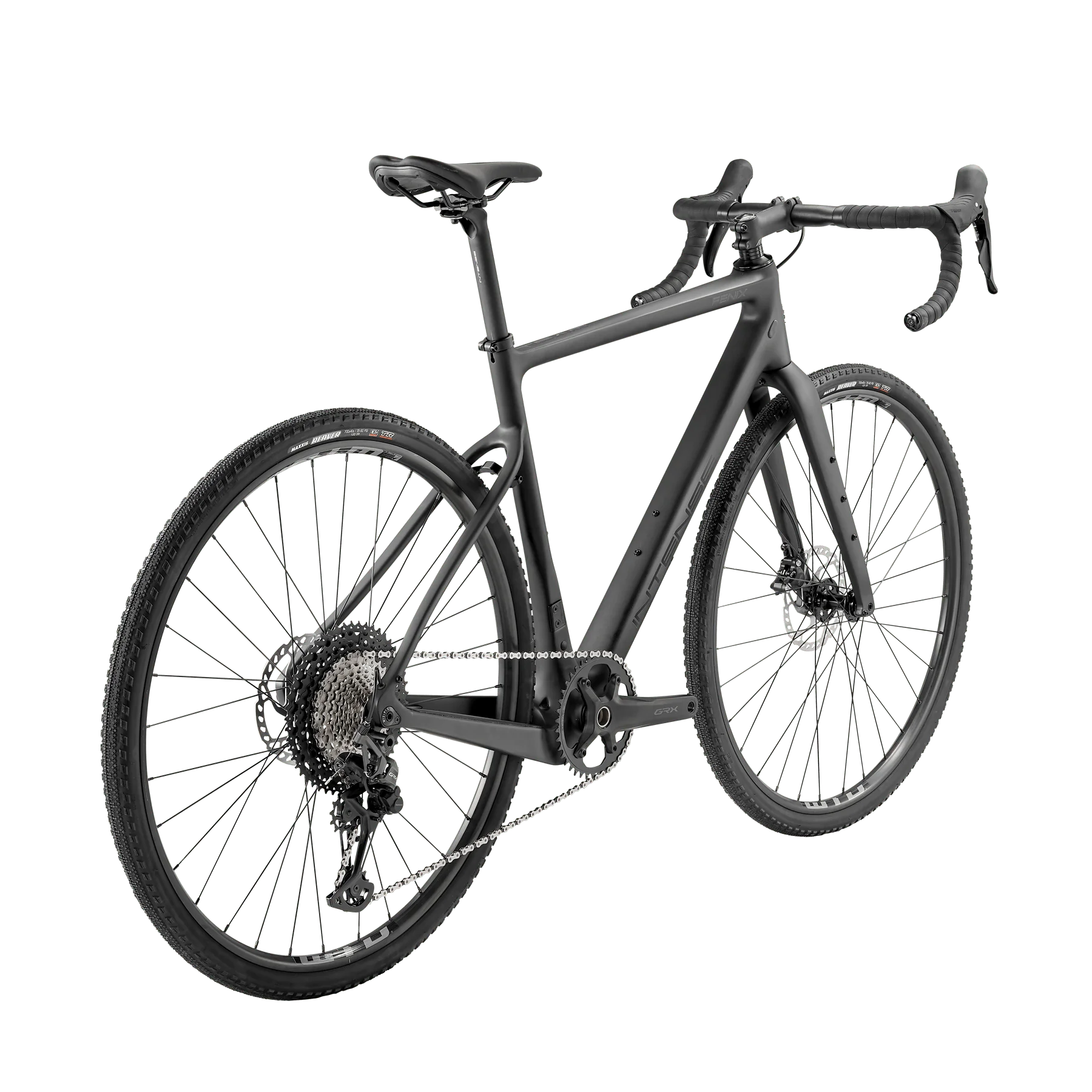

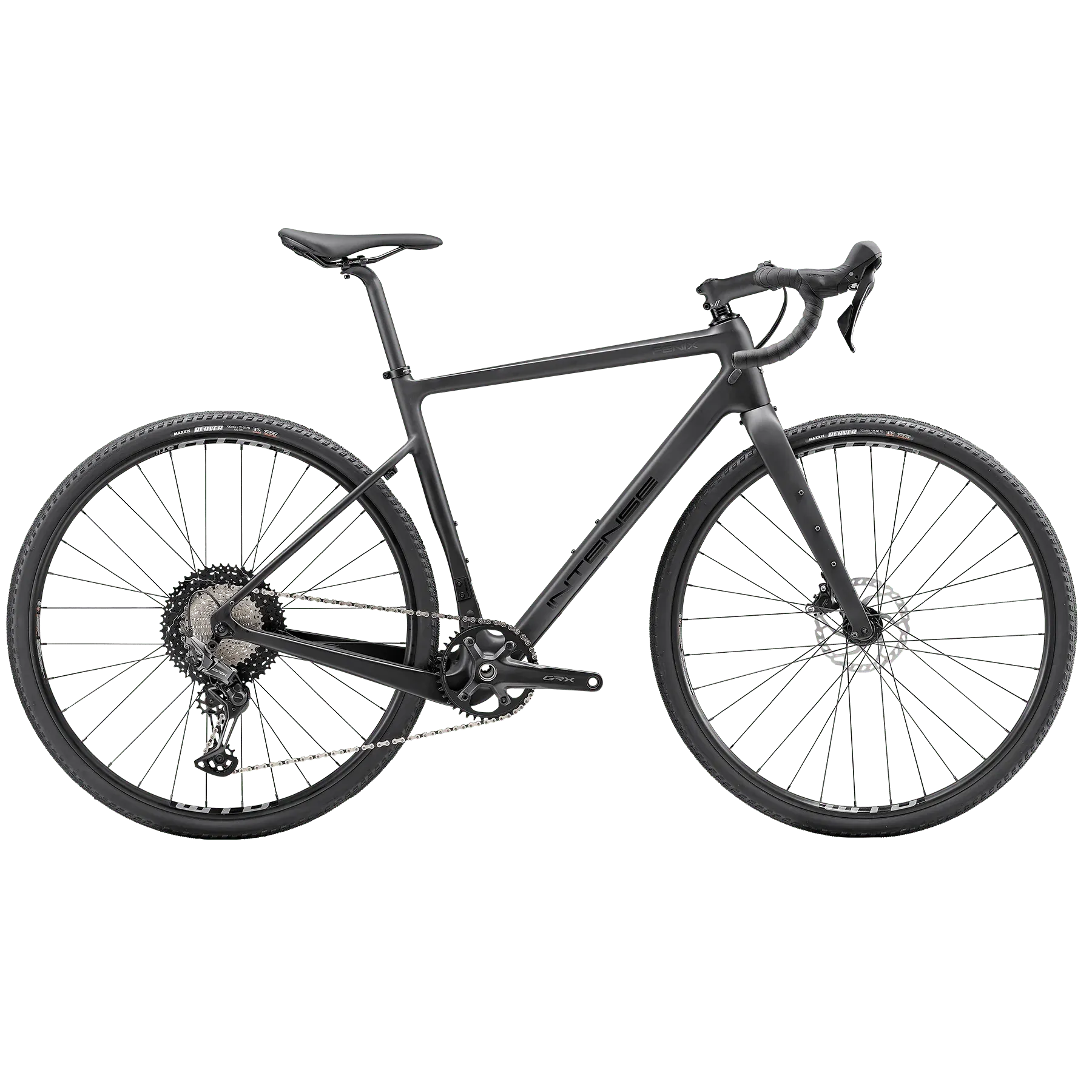

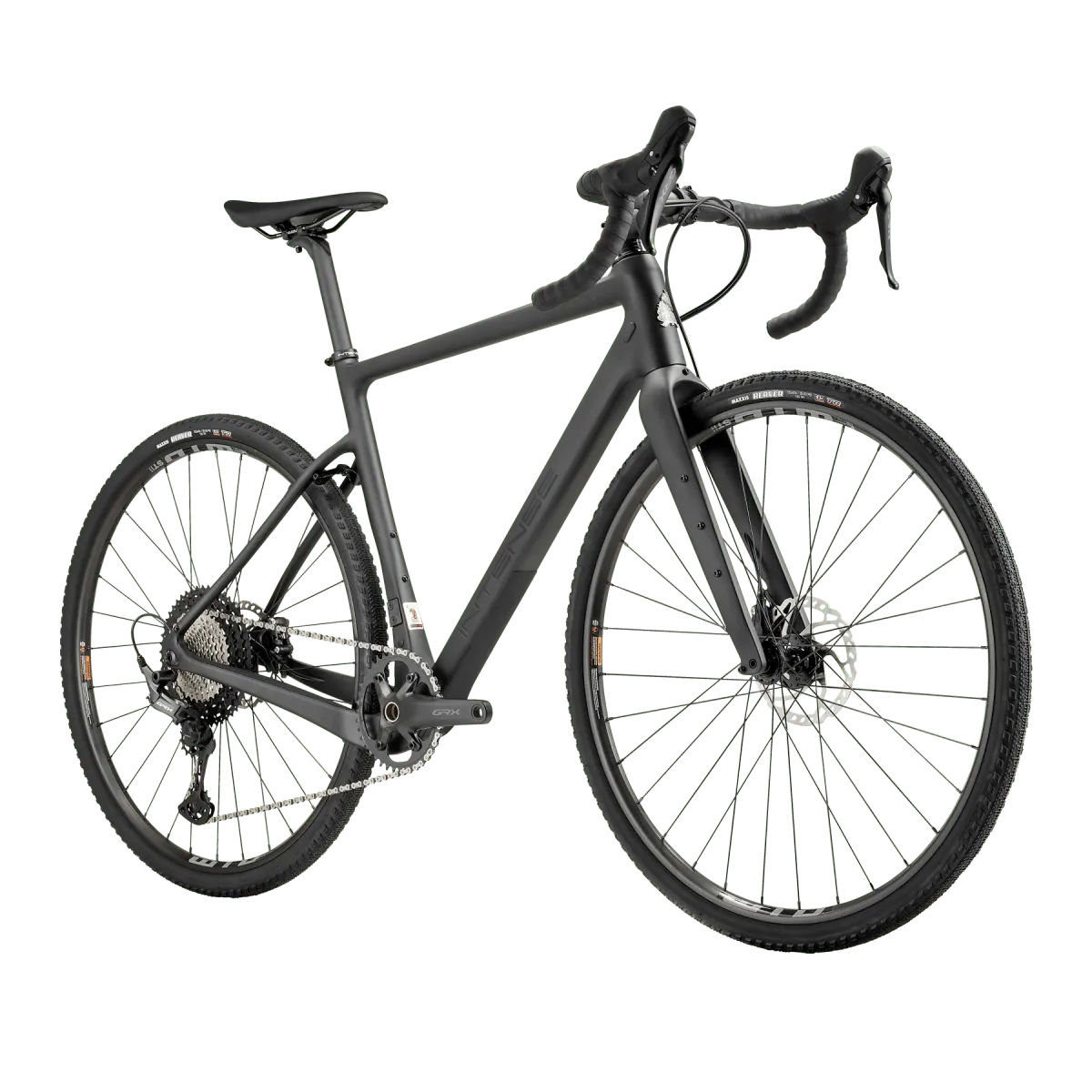

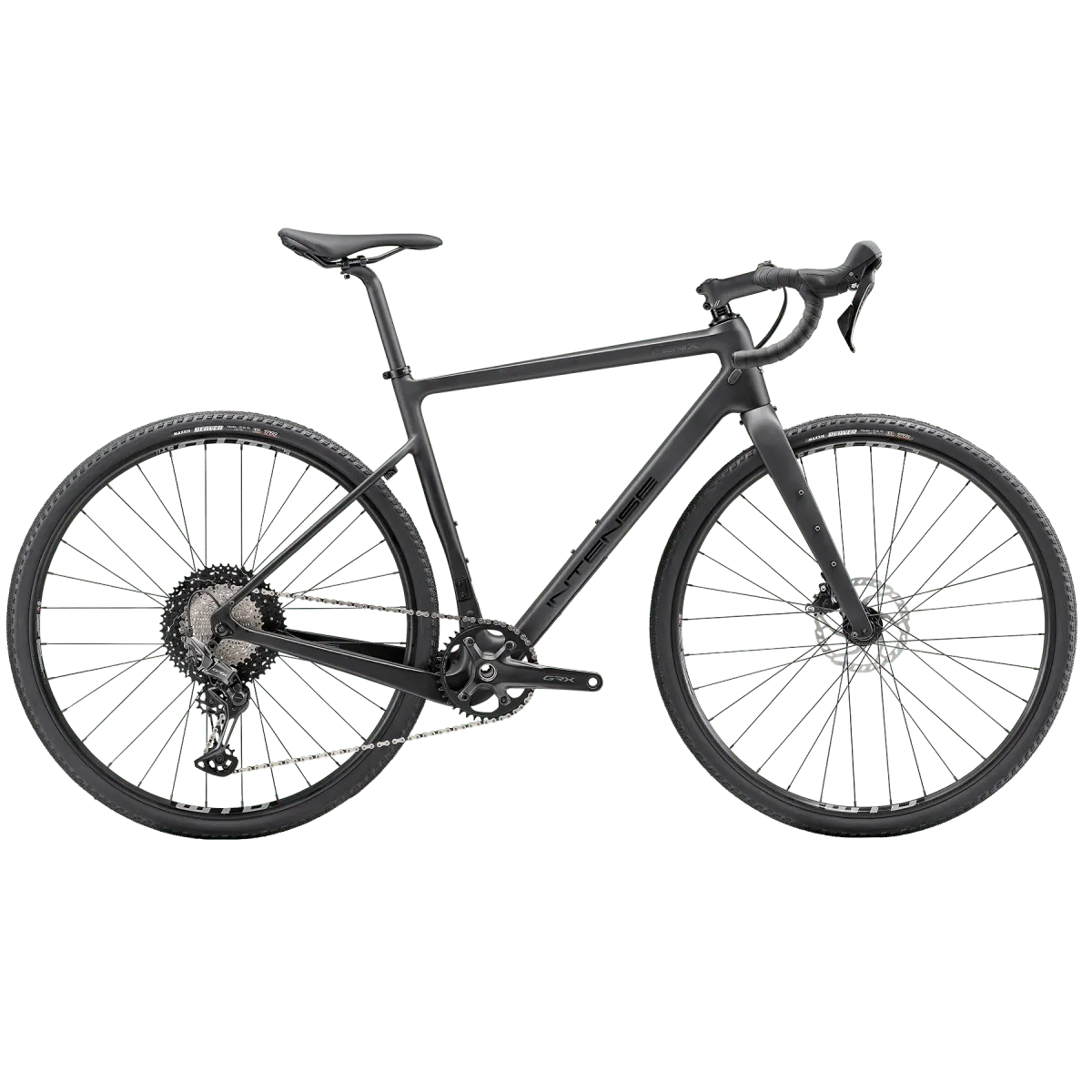

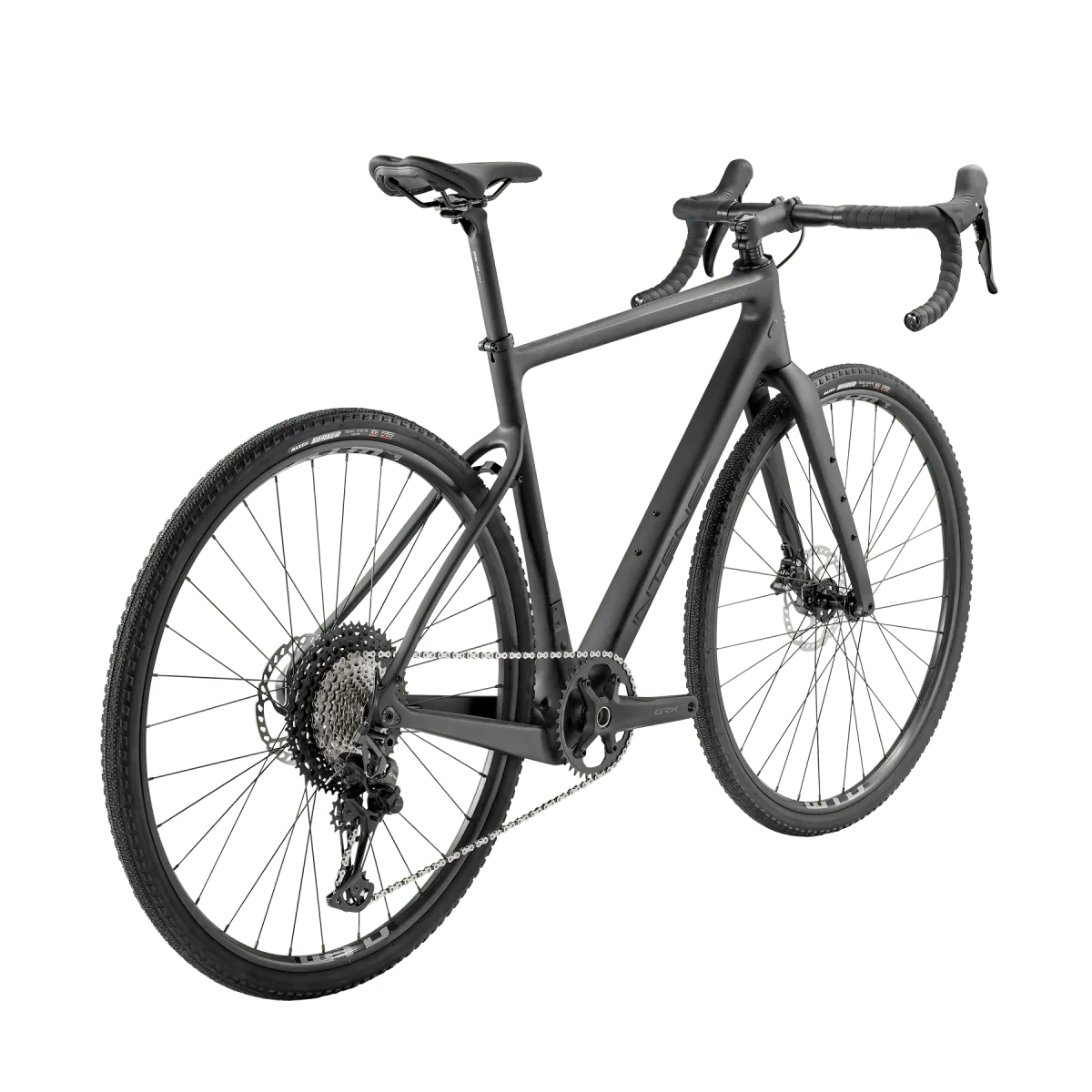

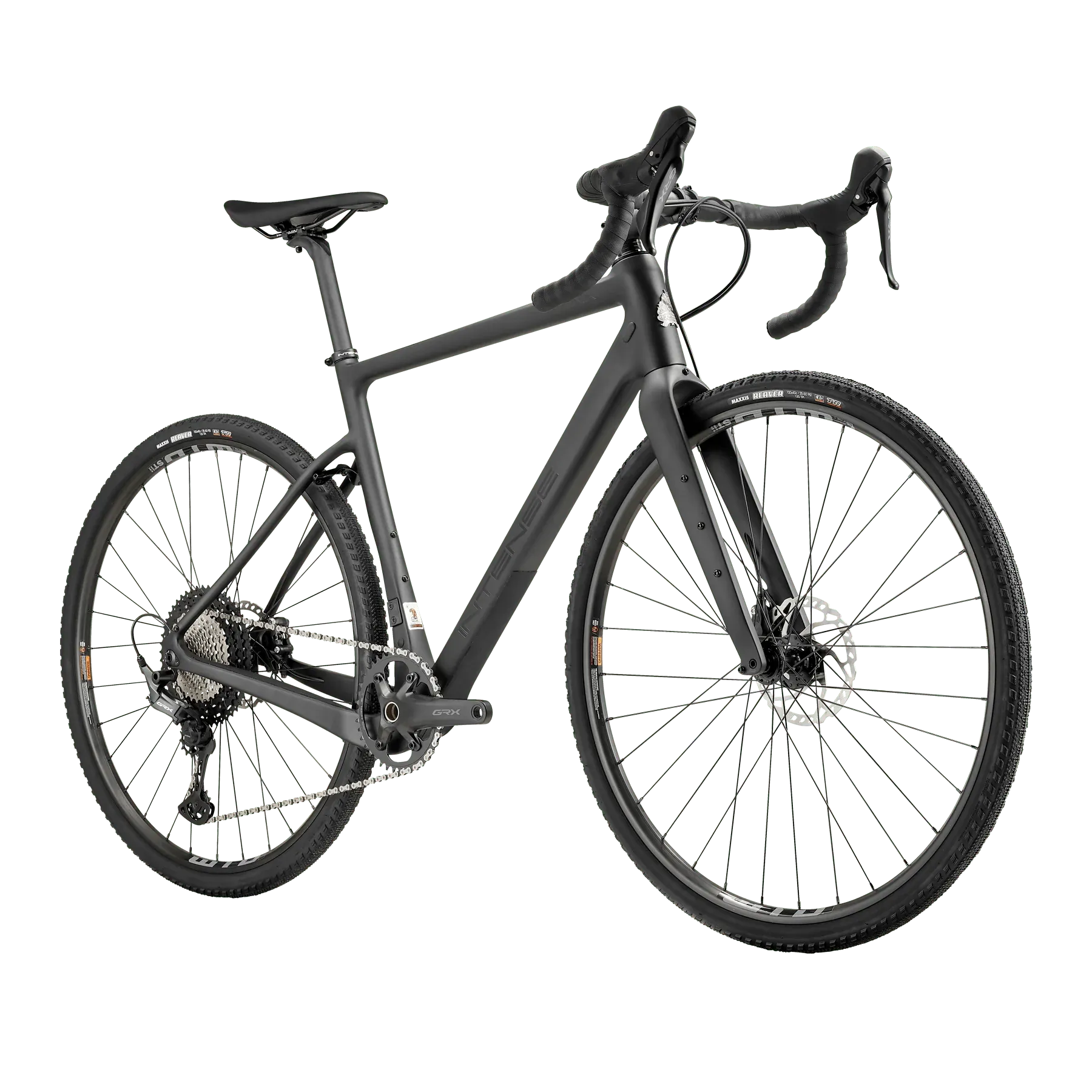

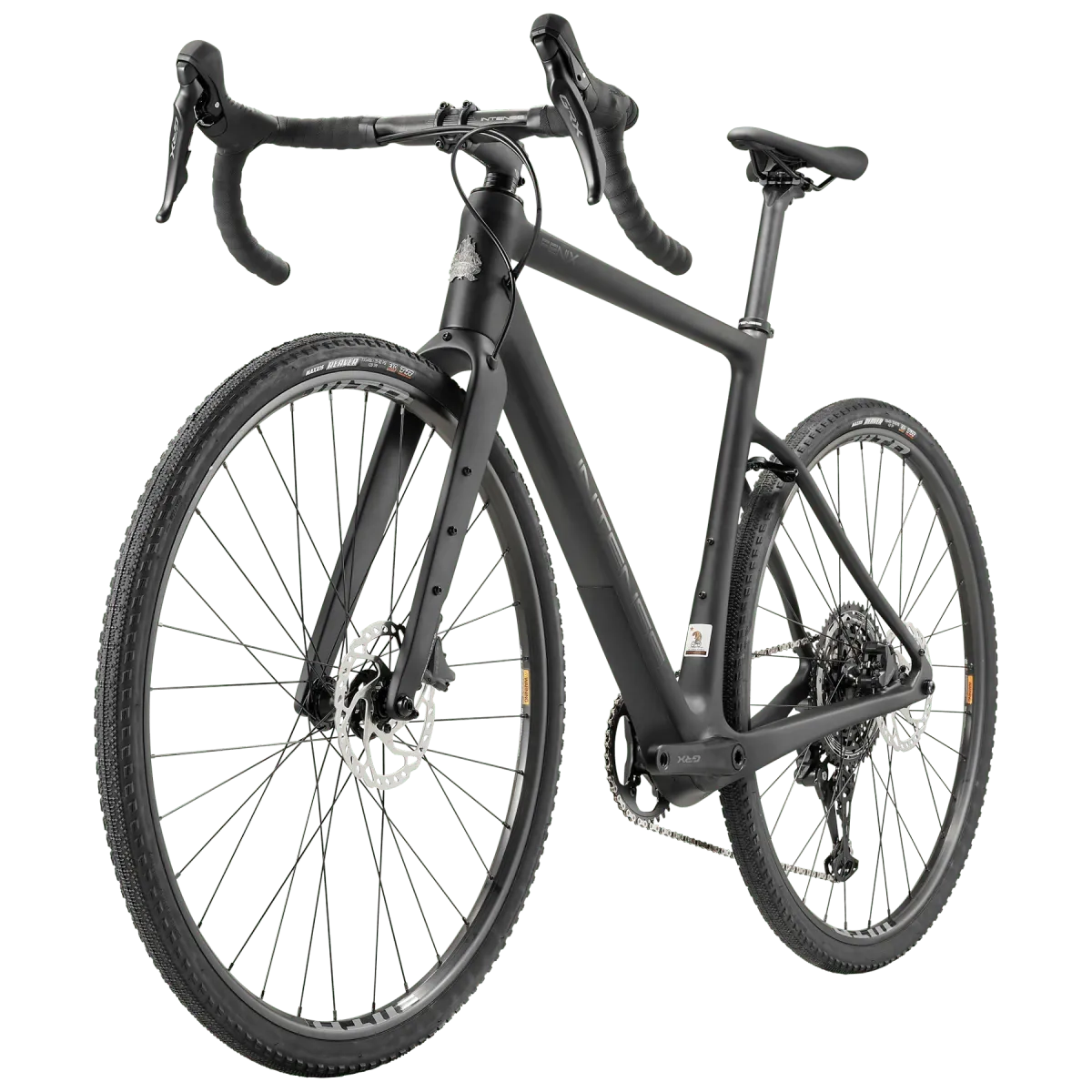

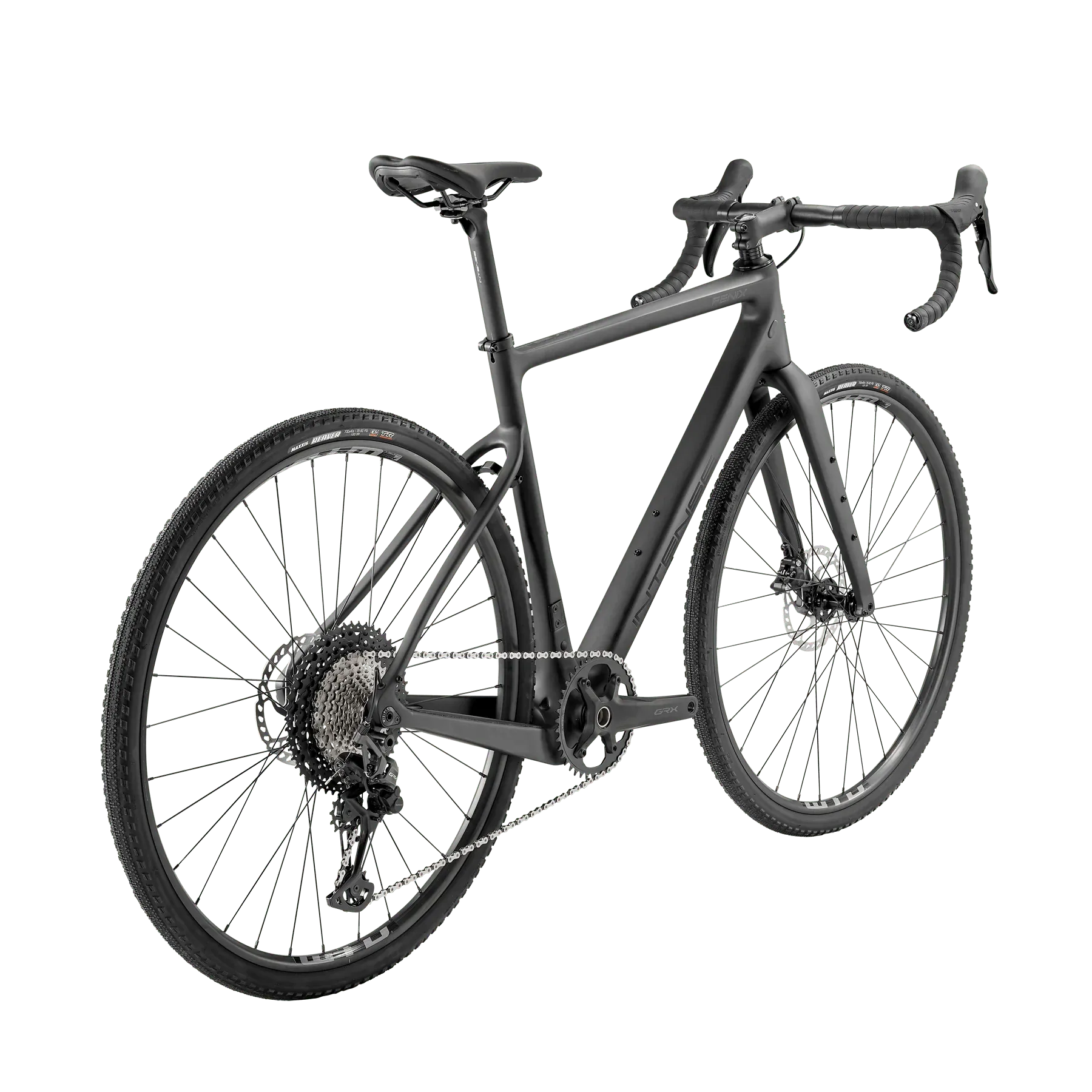

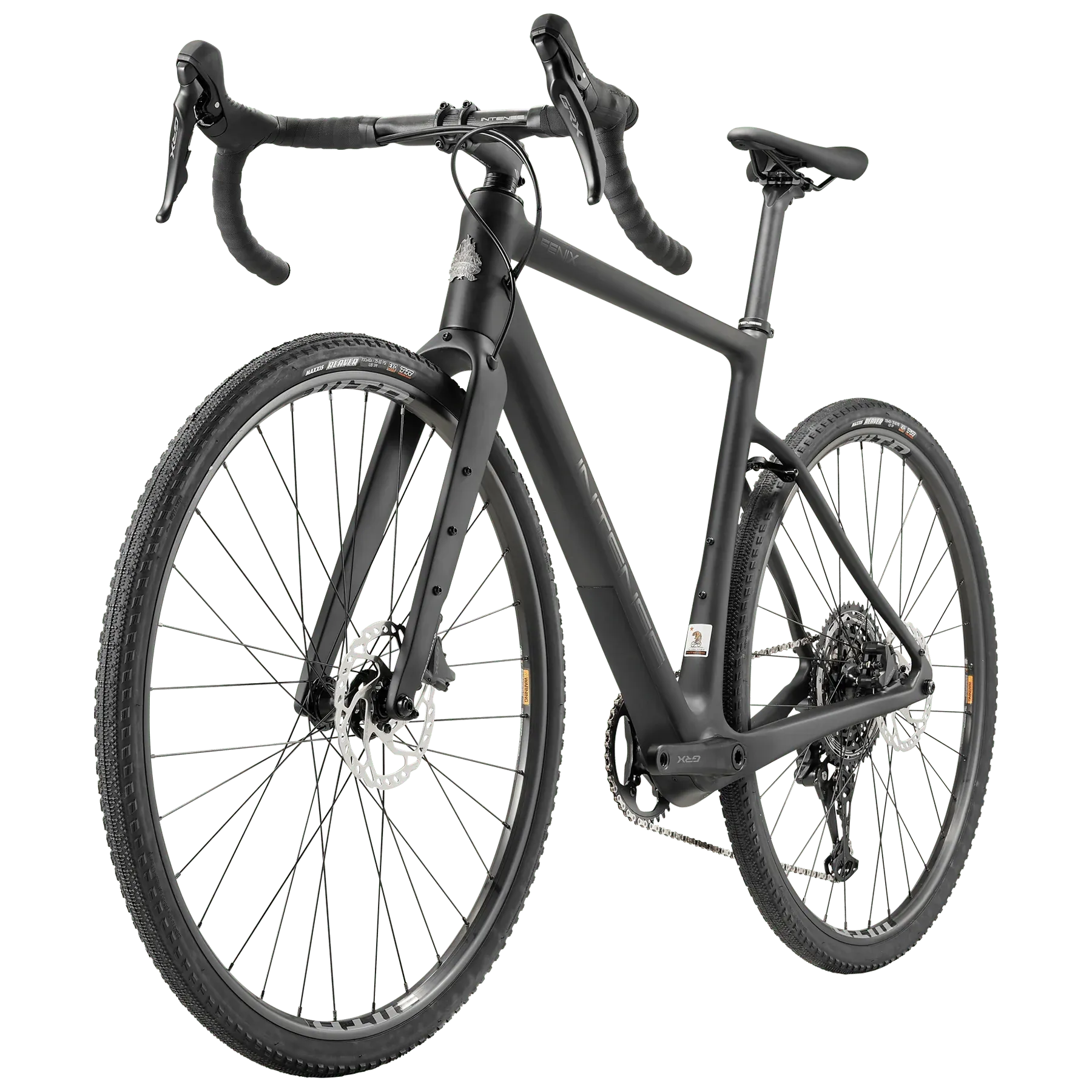

FENIX CARBON TEAM

Crafted for gravel enthusiasts, the Fenix Carbon Team features a robust thermoset carbon frame paired with a full carbon fork for responsive, stable handling. Outfitted with Shimano GRX components and a 1×12 drivetrain, it’s built for reliable shifting and control across rugged terrain—an exceptional choice for long-haul gravel adventures.

SIZE

View Specs

BUILD SPECS

FRAME SET

FRAMEIntense gravel frame, thermoset carbon fiber construction, built to Sram UDH standard

FORKIntense design carbon gravel fork with carbon tapered steerer, disc brake mount, 100 × 12mm thru-axle

HEADSETSealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt

HEADSET SPACERSAlloy headset spacers, 3 × 5mm

BAR / STEM

HANDLEBARIntense design, 6061 Aluminum, 31.8mm bar bore, 125mm drop

HANDLEBAR SIZESS: 400mm, M&L: 420mm, XL: 440mm

STEMIntense design, 6061 Aluminum, Forged Face plate

STEM DIMENSIONSExtension: S: 70mm, M&L: 90mm, XL: 100mm; Angle: 6°; Bar bore: 31.8mm; Height: 40mm

GRIPHi Friction bar tape

WHEEL SET

TIREMaxxis Reaver, 700x40C, 120TPI, Folding tubeless

RIMWTB I23 TCS 2.0 (Light), 700c, 32h

FRONT HUBFormula RX812, alloy body, 100mm, 6-bolt disc, 32h, J-bend, 12mm thru-axle, without QR

REAR HUBFormula RX142, anodized black, 142mm O.L.D., 12mm axle, 11-speed

SPOKEStainless steel / 14G

SHIFTING DRIVE TRAIN

CRANKSETShimano FC-RX610-1, single 40T chainring

BOTTOM BRACKETShimano BB-RS500-PB, PressFit

FRONT SHIFTERShimano GRX BL-RX610 left brake lever with BR-RX400 hydraulic front brake caliper

REAR SHIFTERShimano GRX ST-RX610 right shift/brake lever with BR-RX400 hydraulic rear brake caliper

REAR DERAILLEURShimano GRX RD-RX822-SGS, 12-speed, long cage

CASETTE / FREEWHEELSunrace CSMZ603, 12-speed, 11–51T

CHAINKMC X12, 12-speed

BRAKES

FRONT BRAKEShimano BR-RX400F hydraulic disc brake with SM-RT66 160mm 6-bolt rotor (resin pad only)

REAR BRAKEShimano BR-RX400R hydraulic disc brake with SM-RT66 160mm 6-bolt rotor (resin pad only)

SEATING

SADDLEIntense gravel design, dual density base and cro-mo rail

SEAT POSTIntense alloy 27.2mm × 350mm

SEAT CLAMPIntense φ31.8mm
