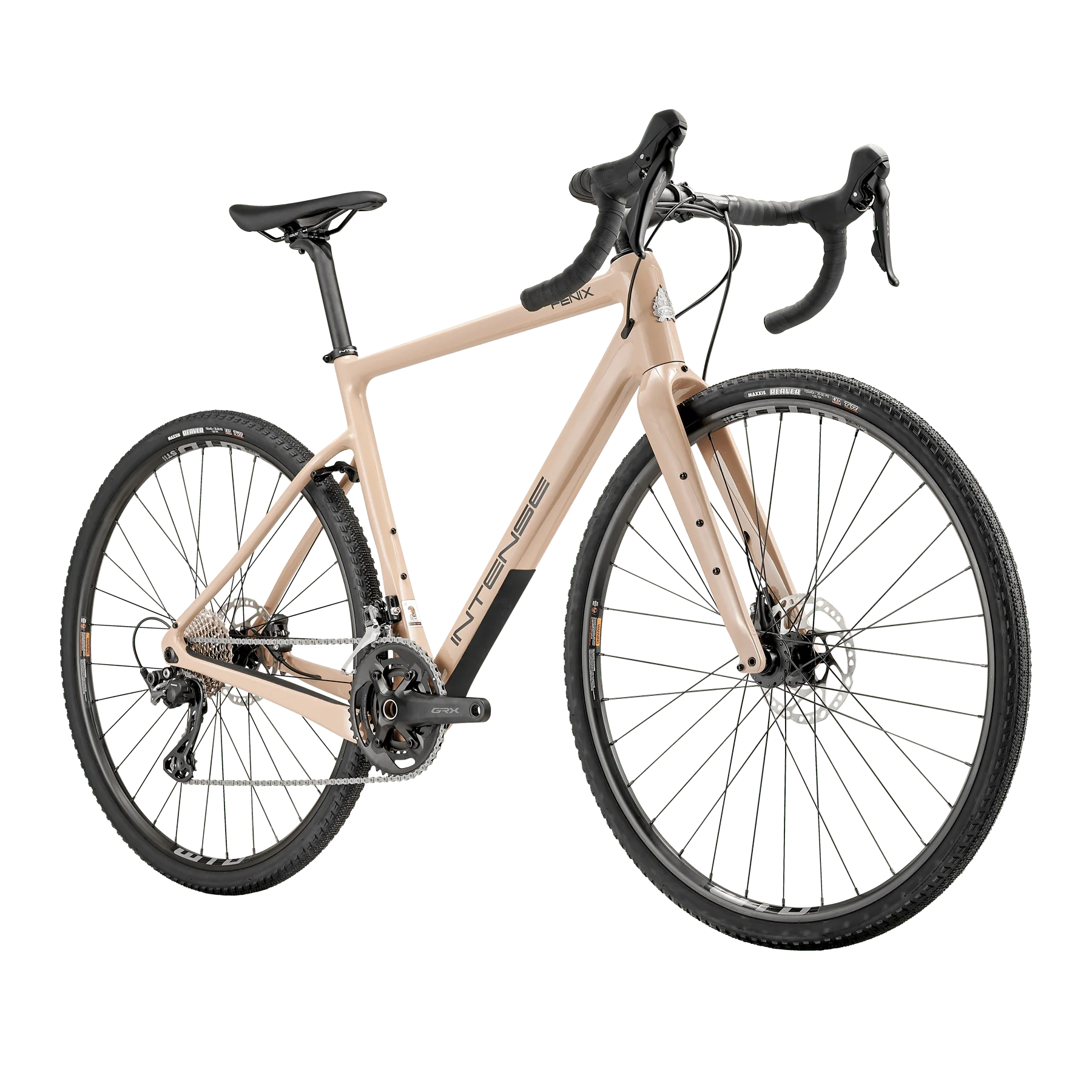

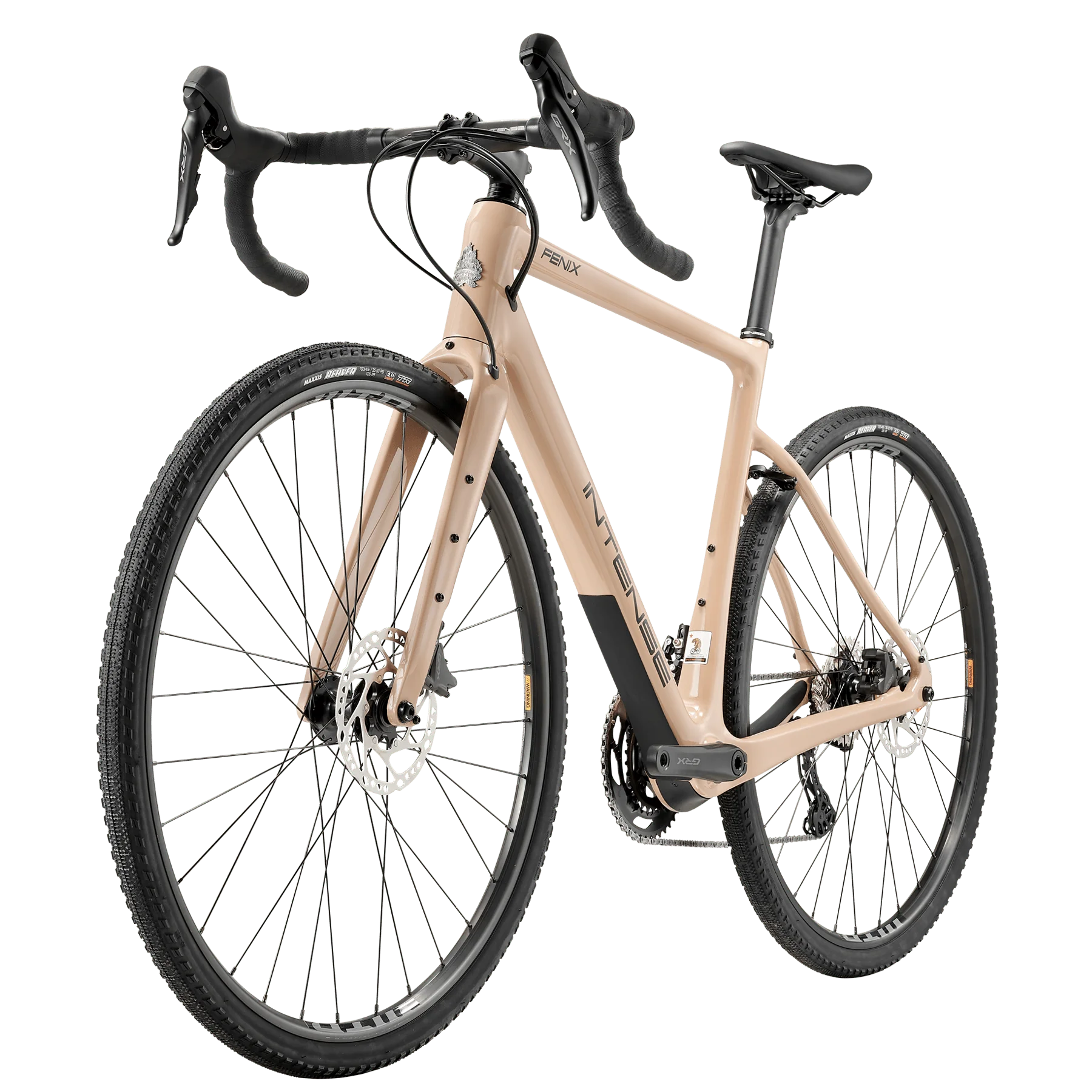

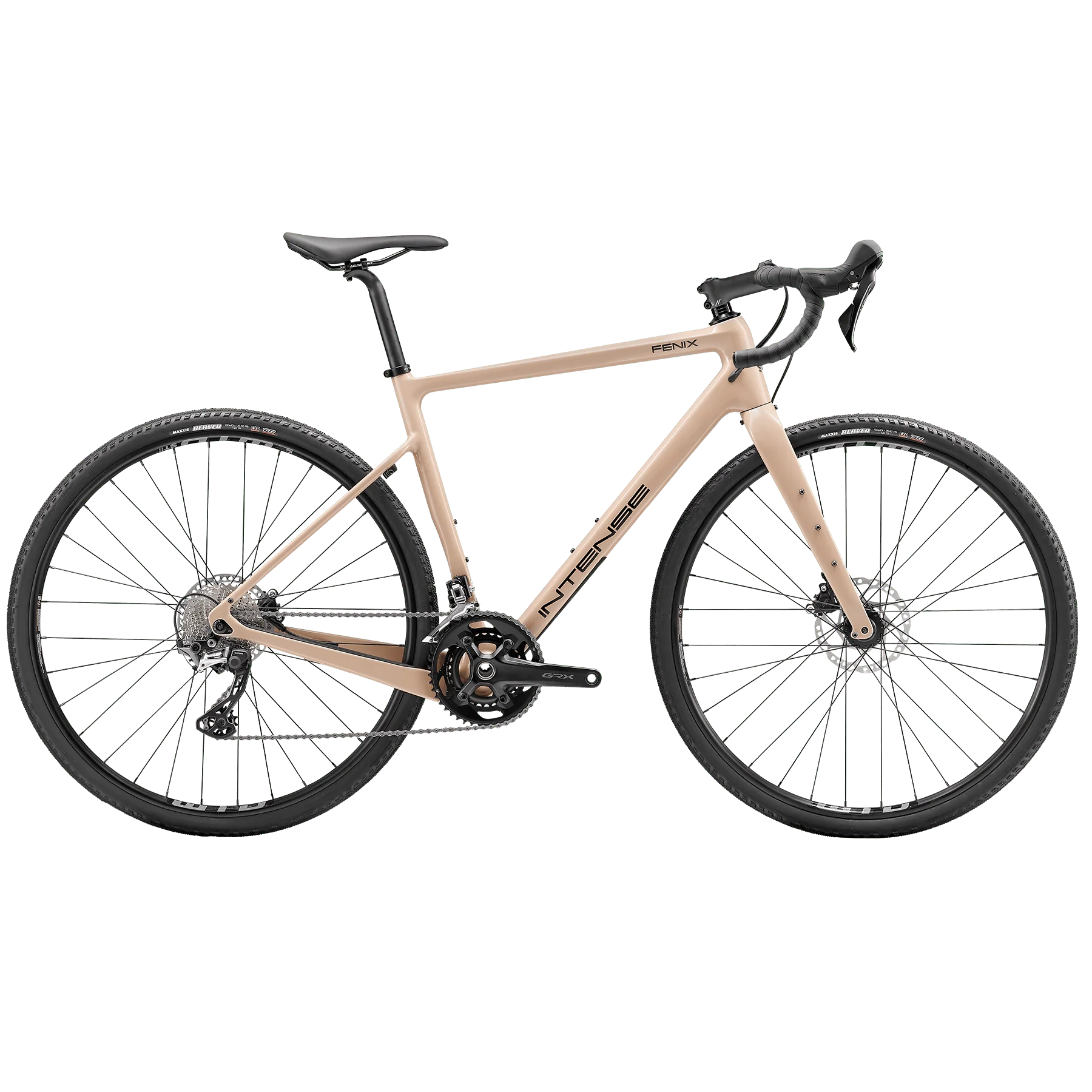

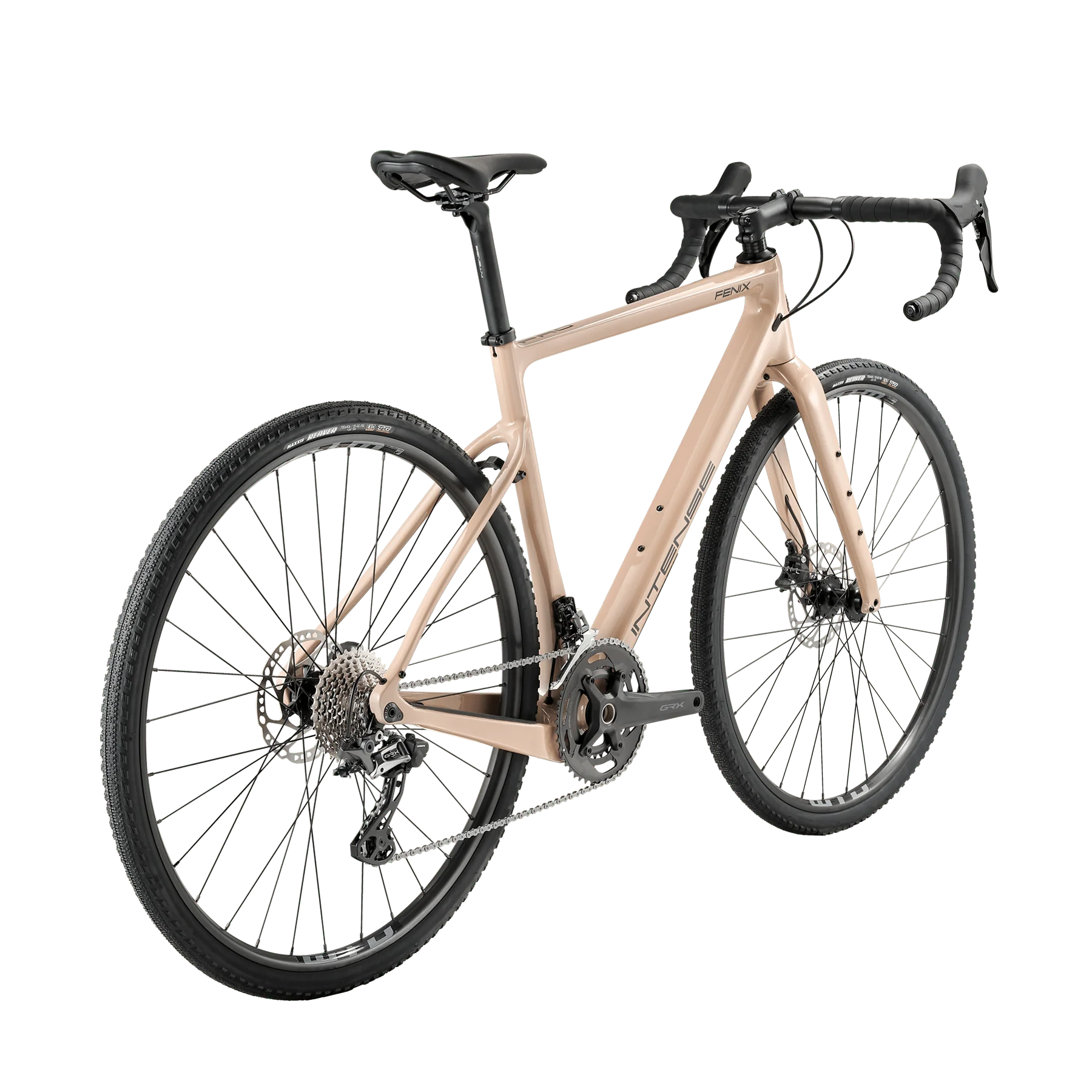

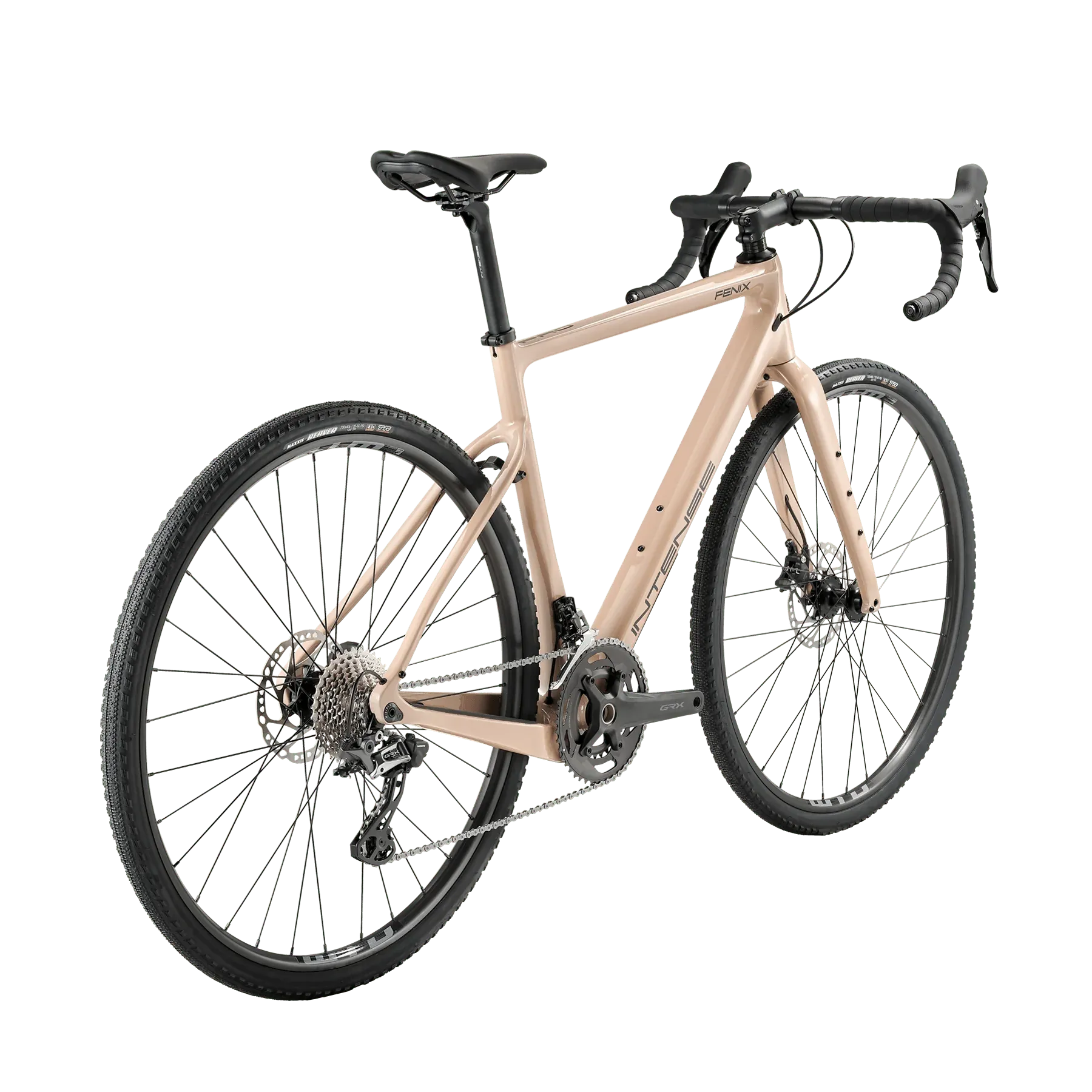

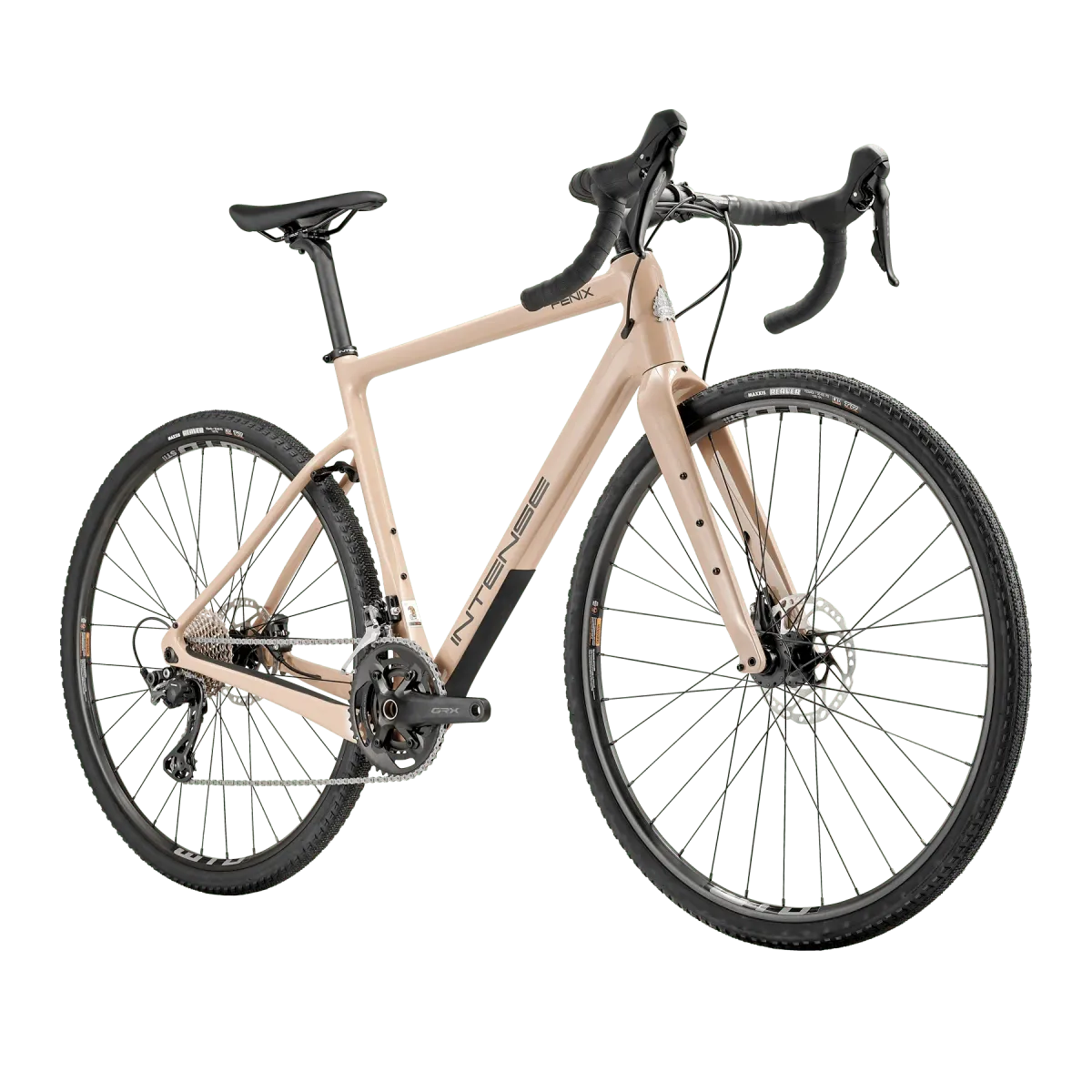

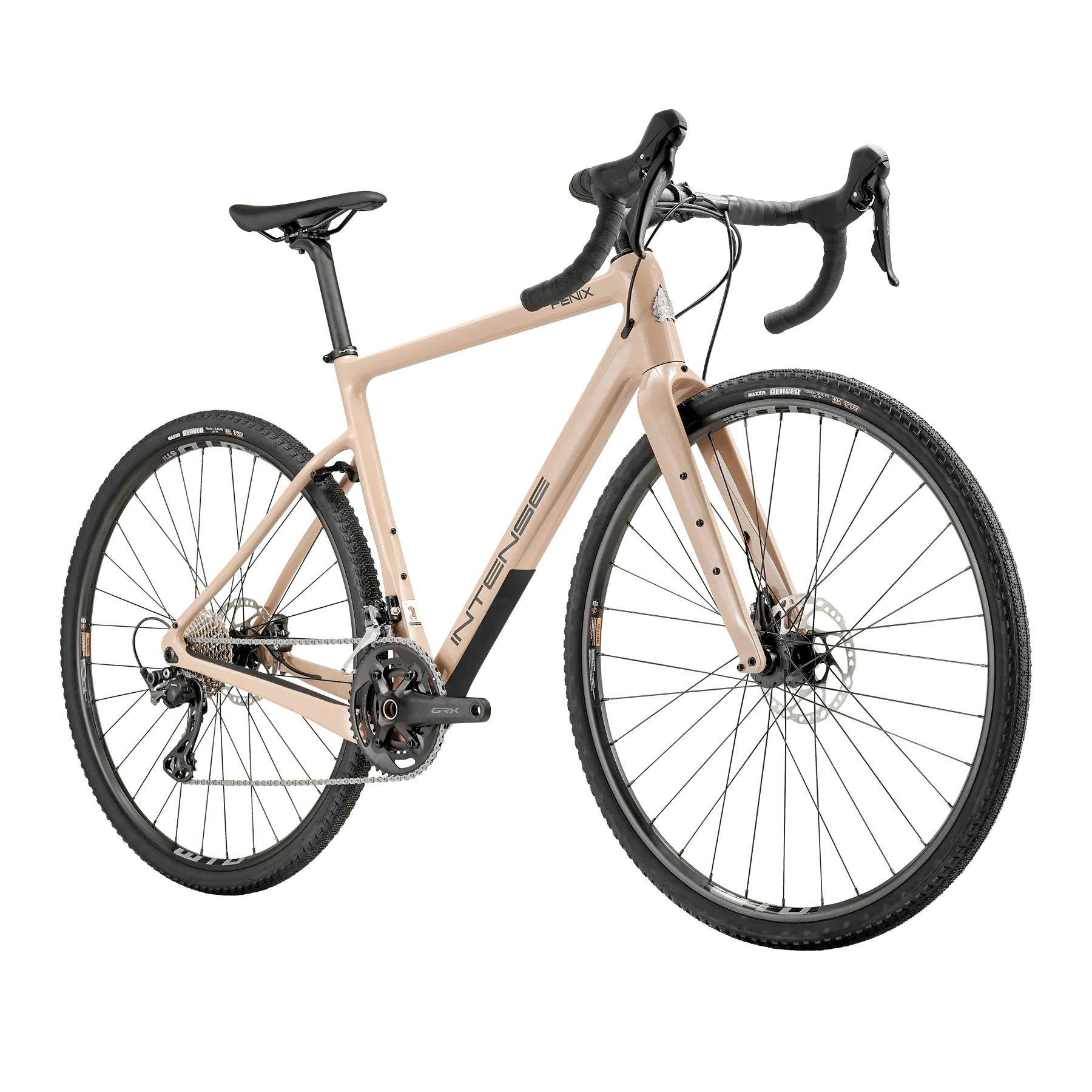

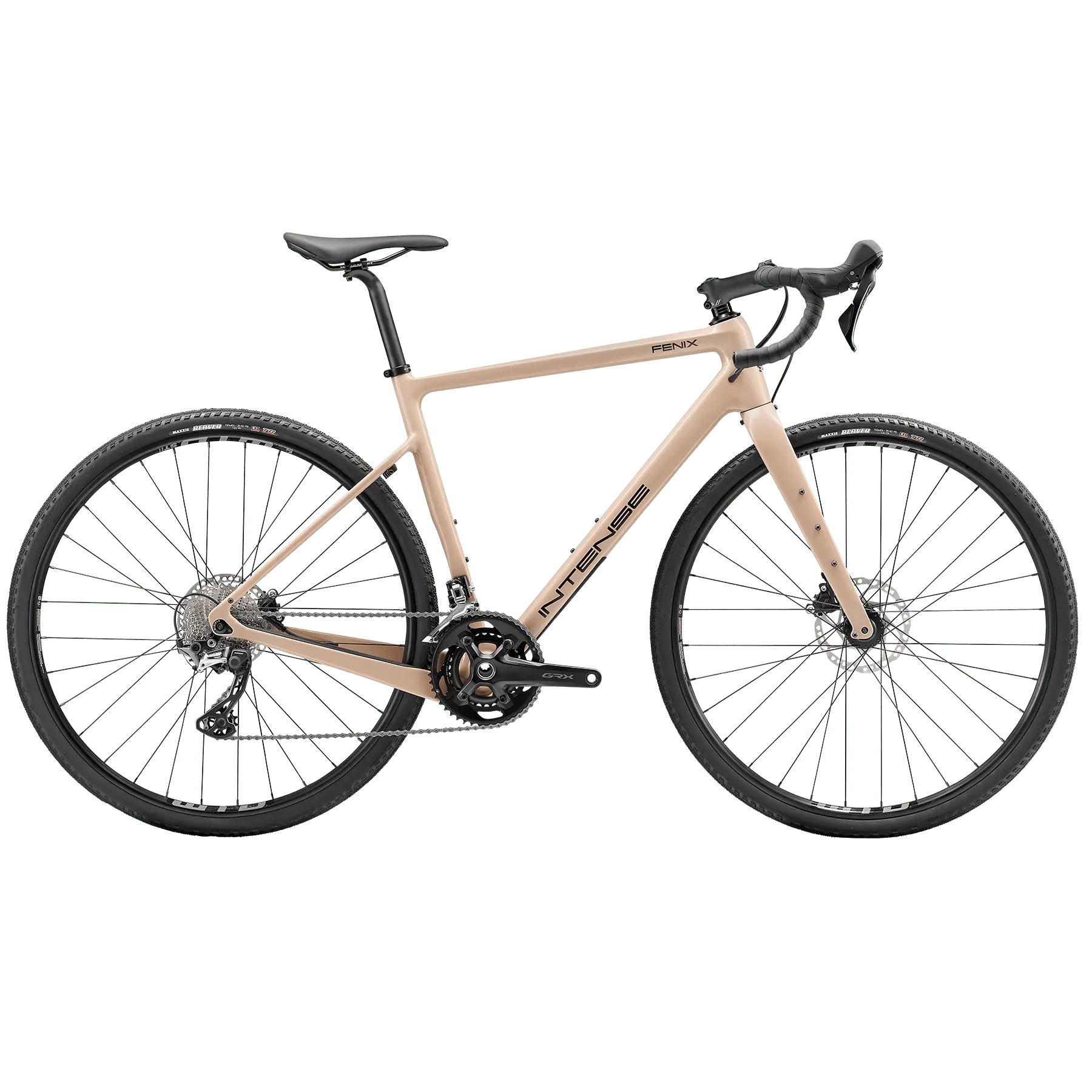

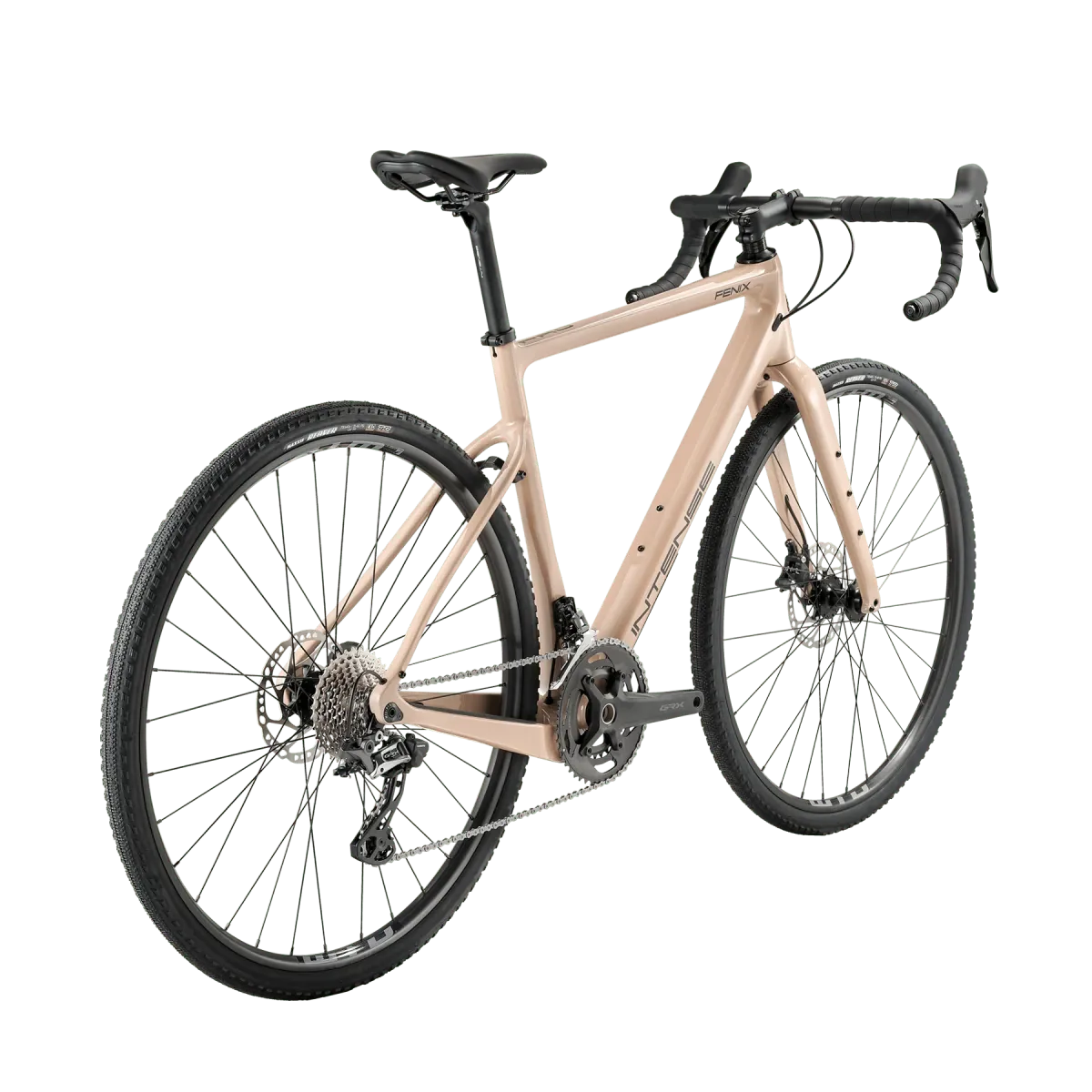

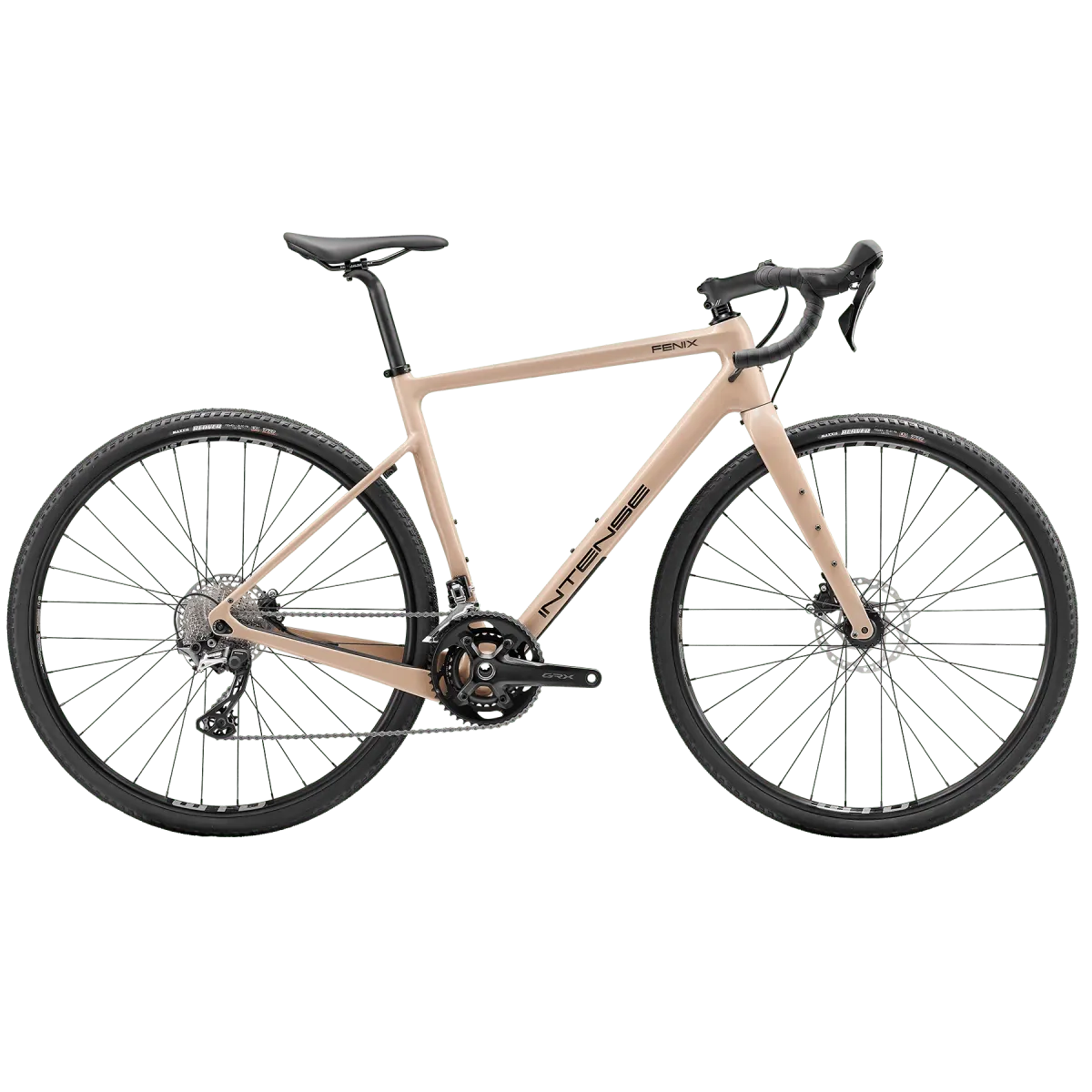

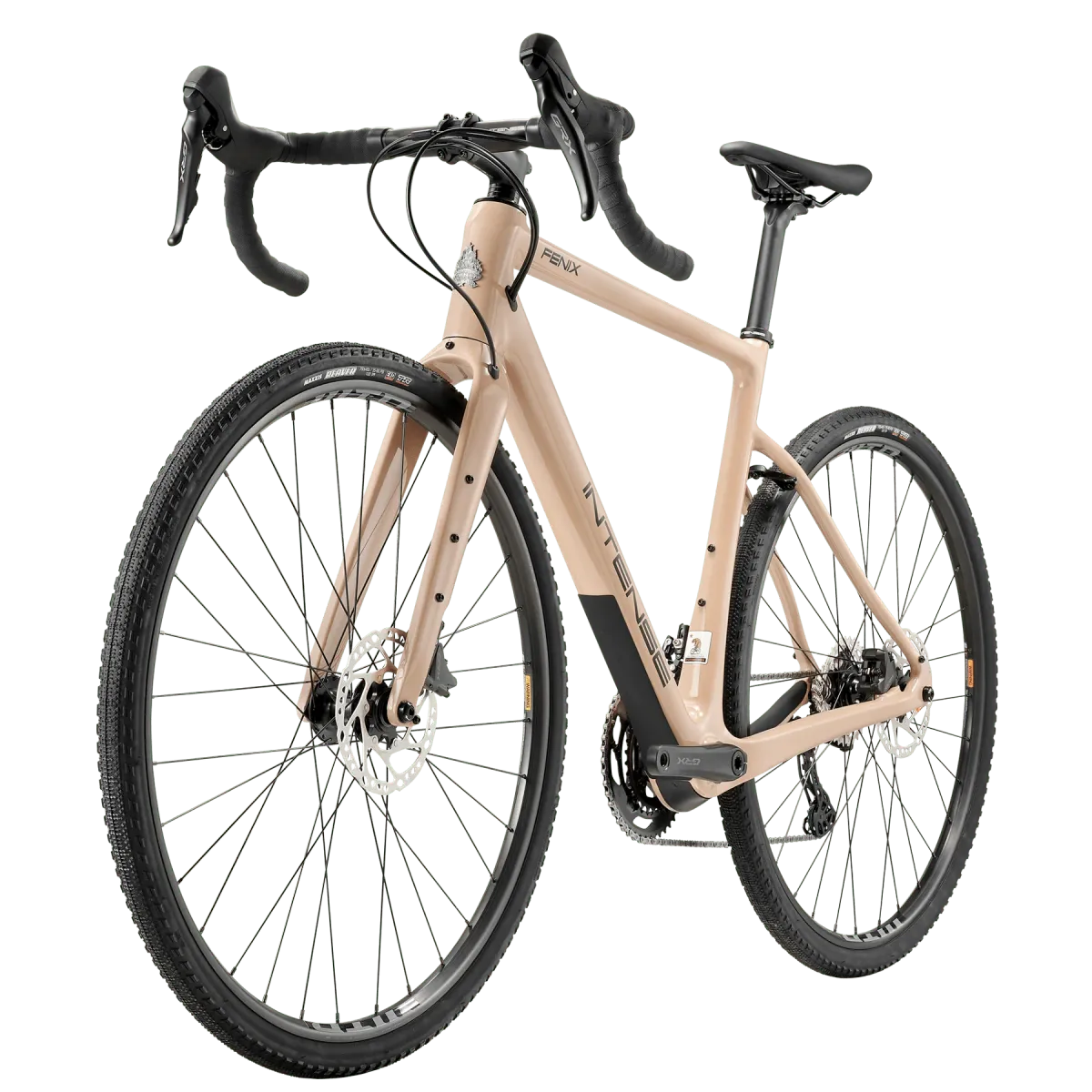

FENIX CR PRO

The Fenix CR Pro stands out with its refined carbon frame and full carbon fork, delivering agility and comfort on any terrain. Featuring Shimano’s GRX 2×12 drivetrain and hydraulic disc brakes, it offers a wide gear range and responsive control—ideal for riders seeking precision and versatility on mixed gravel surfaces.

SIZE

View Specs

BUILD SPECS

FRAME SET

FRAMEIntense gravel frame, carbon fiber construction, built to SRAM UDH standard

FORKIntense design, carbon gravel fork with tapered steerer, disc brake mount, 100 × 12mm thru-axle

HEADSETSealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt

HEADSET SPACERSAlloy headset spacers, 3 × 5mm

BAR / STEM

HANDLEBAR6061 aluminum, 31.8mm bar bore, 125mm drop

HANDLEBAR SIZESS: 400mm, M&L: 420mm, XL: 440mm

STEM6061 aluminum, forged face plate

STEM DIMENSIONSExtension: S: 70mm, M&L: 90mm, XL: 100mm; angle: 6°; bar bore: 31.8mm; height: 40mm

GRIPHi Friction bar tape

WHEEL SET

TIREMaxxis Reaver, 700x40C, 120TPI, folding tubeless

RIMWTB I23 TCS 2.0 (Light), 700c, 32h

FRONT HUBFormula RX812, allow body 100mm, 6-bolt, J-bend, 32h, thru-axle, without QR, 100 × 12mm

REAR HUBFormula RX142, anodized black, 142mm O.L.D., 12mm axle, 11-speed

SPOKEStainless steel / 14G

SHIFTING DRIVE TRAIN

CRANKSETShimano FC-RX600 crankset, 46/30T

BOTTOM BRACKETShimano BB-RS500-PB, press-fit

FRONT SHIFTERShimano GRX ST-RX600 left shift/brake lever with BR-RX400 hydraulic front brake caliper

REAR SHIFTERShimano GRX ST-RX600 right shift/brake lever with BR-RX400 hydraulic rear brake caliper

FRONT DERAILLEURShimano GRX FD-RX810 front derailleur

REAR DERAILLEURShimano GRX RD-RX810, 11-speed

CASETTE / FREEWHEELShimano CS-HG700-11, 11-speed, 11–34T

CHAINKMC X11 EPT, anti-rust, 11-speed, 114 links

BRAKES

FRONT BRAKEShimano BR-RX400F hydraulic disc brake with SM-RT66 160mm 6-bolt rotor (resin pad only)

REAR BRAKEShimano BR-RX400R hydraulic disc brake with SM-RT66 160mm 6-bolt rotor (resin pad only)

SEATING

SADDLEIntense Gravel Design, dual density base and cro-mo rail

SEAT POSTIntense alloy 27.2mm × 350mm

SEAT CLAMPAnodized black, without lever, φ31.8
