XC RACEView Specs
SPIDER EXPERT

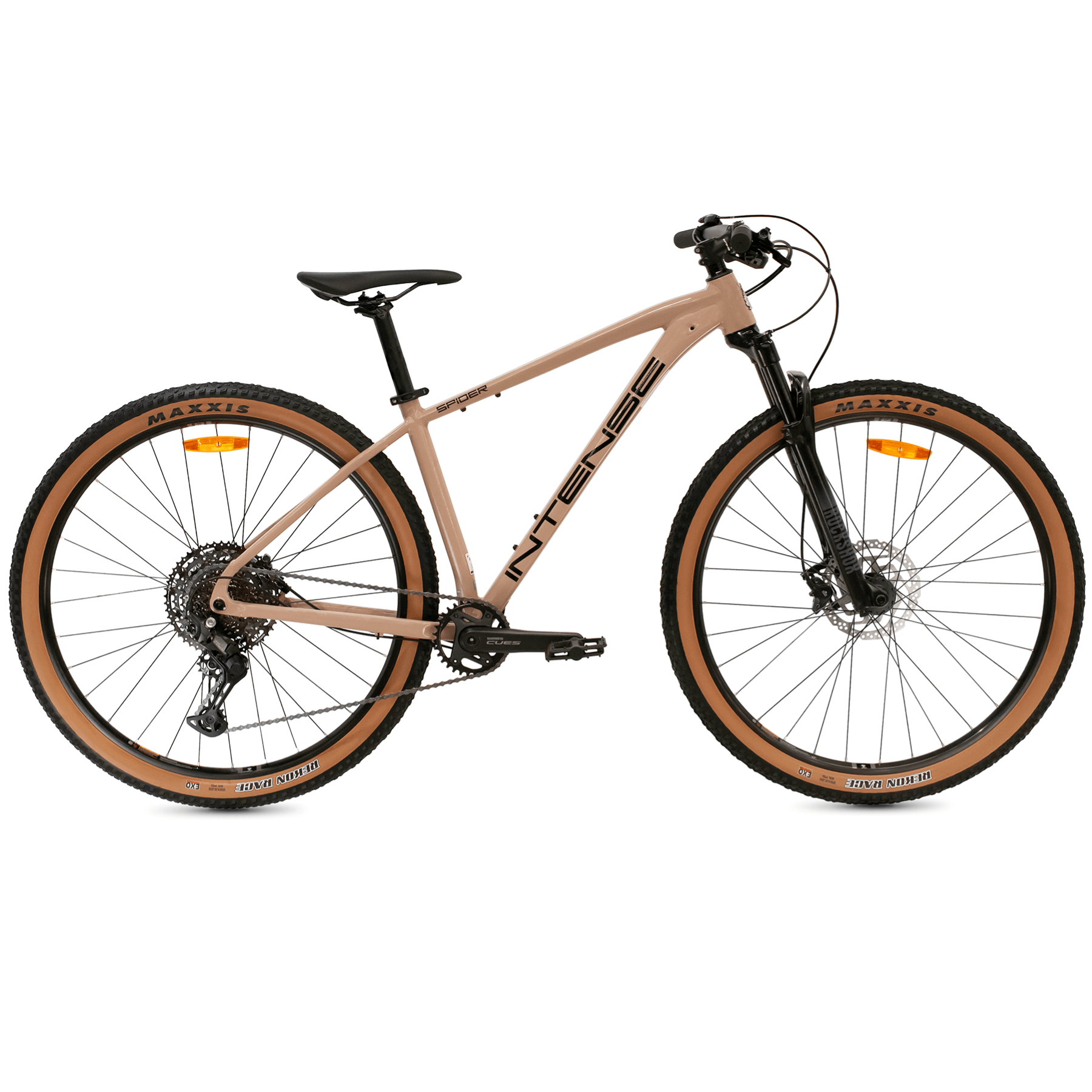

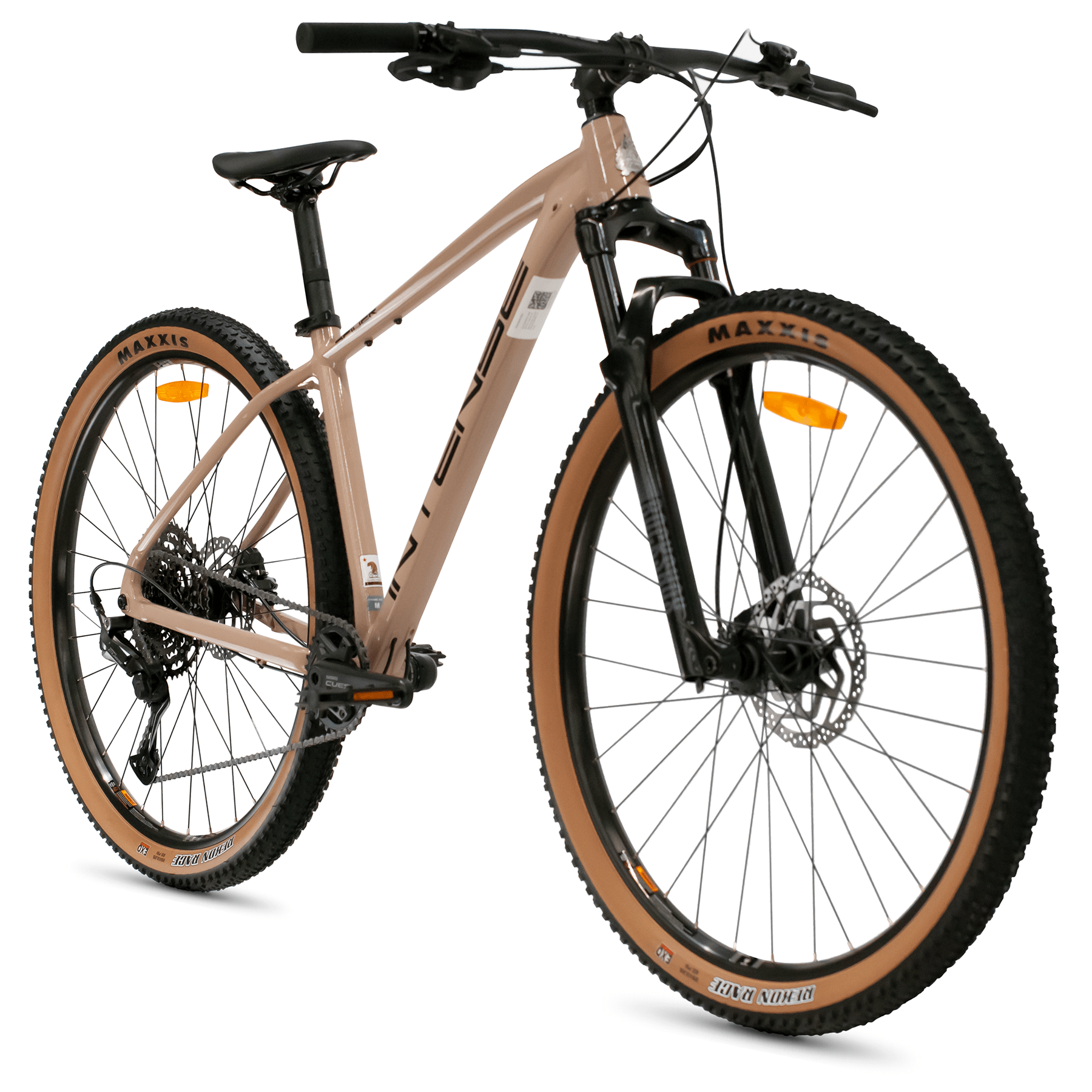

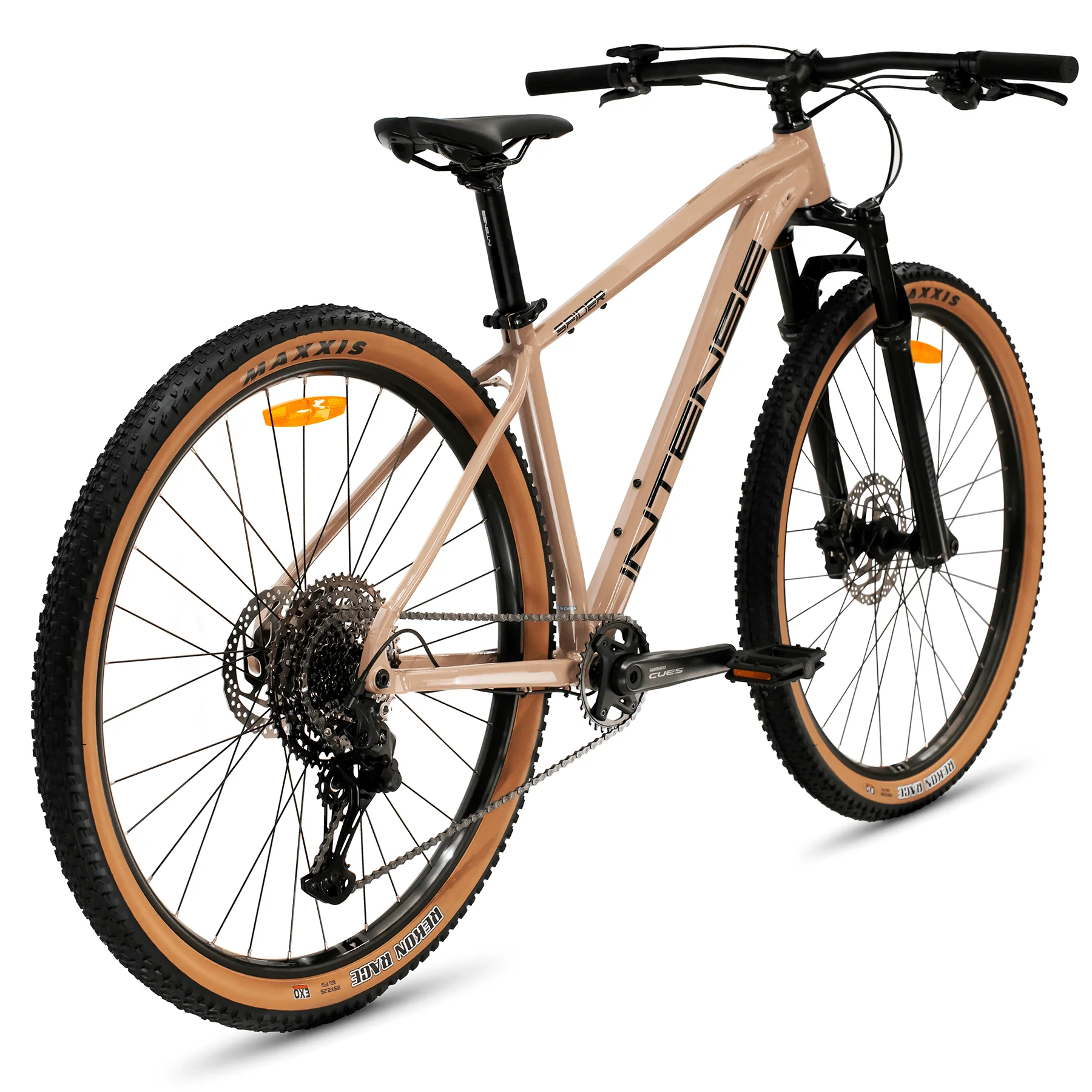

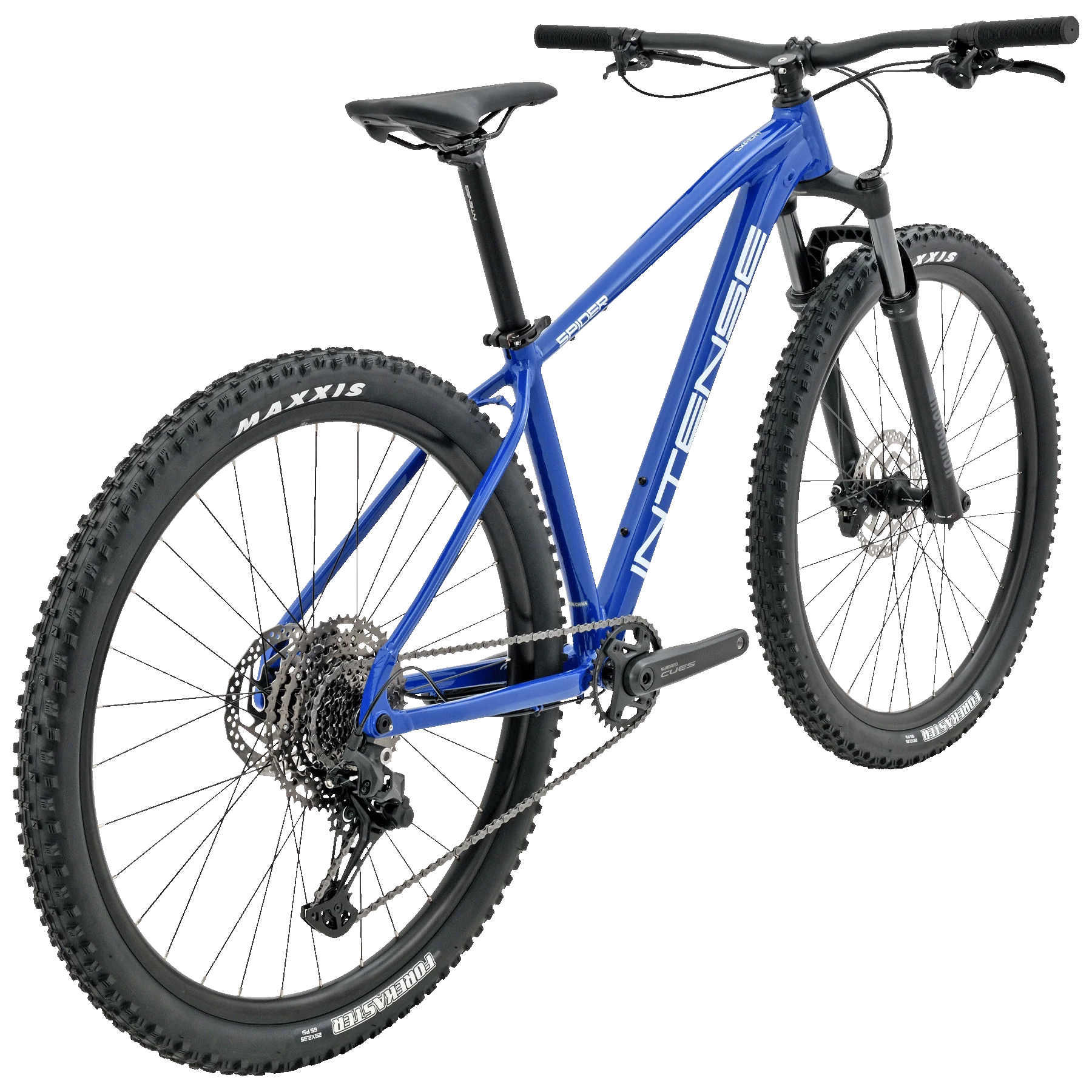

The Spider Expert delivers trail-proven performance with a 6061 alloy frame and RockShox Judy Gold RL fork. Riders can choose 27.5″ or 29″ wheels, while Shimano’s CUES 11-speed system and MT401 brakes ensure confident shifting and stopping. it’s designed for emerging racers and trail enthusiasts looking for quality at a great value.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense XC race frame, 6061 alloy, TIG-welded with UDH rear dropout
FORKRockShox Judy Gold RL 100mm, OneLoc remote, 27.5" or 29" options
HEADSETSealed aluminum Aheadset with 6mm cro-mo bolt and top cap
HEADSET SPACERSAlloy headset spacers, 3 × 5mm
BAR / STEM

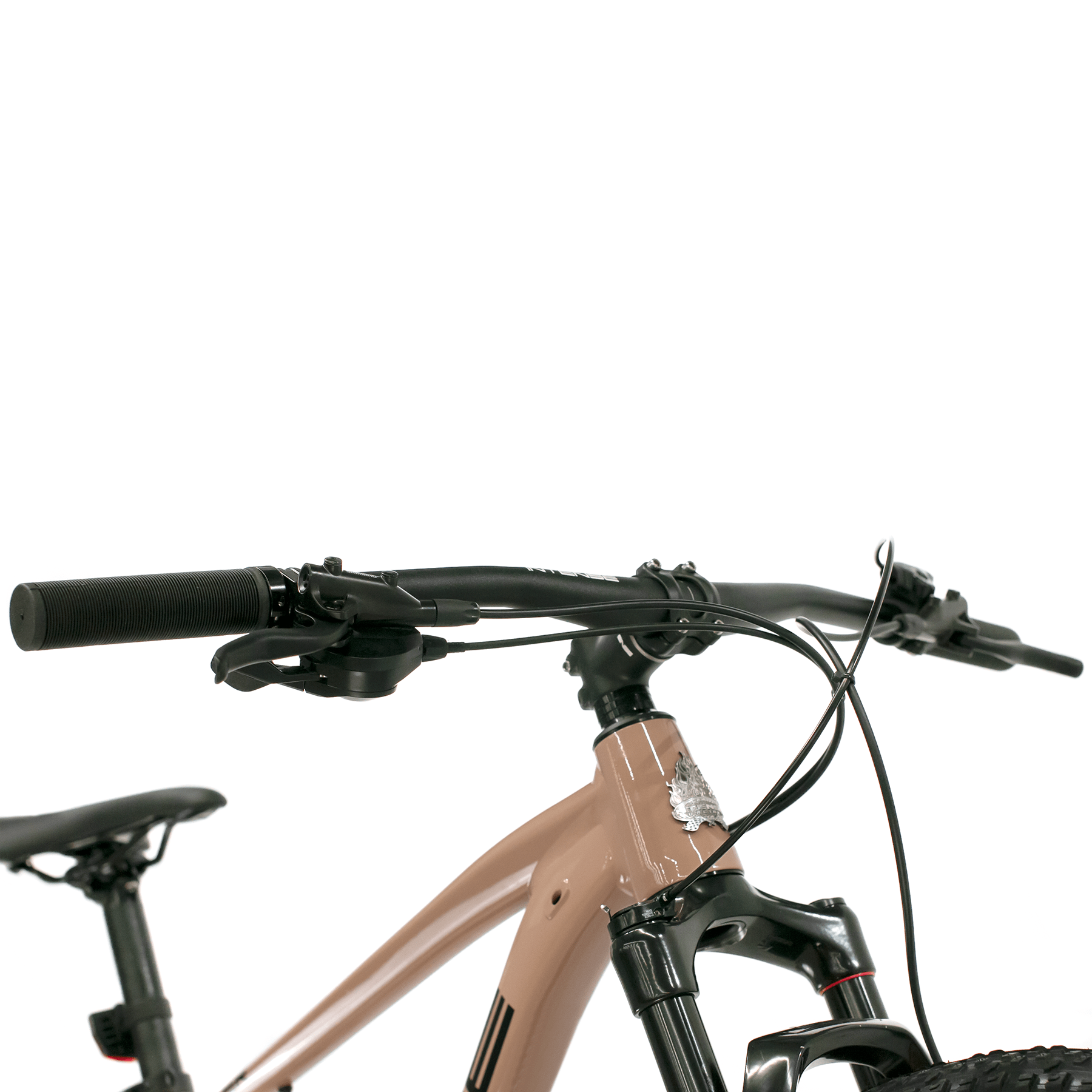

HANDLEBAR6061 aluminum, 760mm width, 31.8mm clamp, 20mm rise, 7° backsweep
STEM6061 aluminum, 60mm extension, 6° angle, 31.8mm clamp, 40mm height
GRIPDual-density grips with alloy lock-on and plastic cap
WHEEL SET
TIREMaxxis Rekon Race 29x2.25 / 27.5x2.25, 60TPI, wire, EXO Tanwall
RIMFORMULA DHT 148, AXLE SIZE: 12mm
FRONT HUBFormula DC-711, 110mm, 15mm axle, 6-bolt rotor
REAR HUBFormula DHT-252X, 148mm, 12mm axle, sealed bearing
SPOKEStainless steel spokes / 14G
SHIFTING DRIVE TRAIN

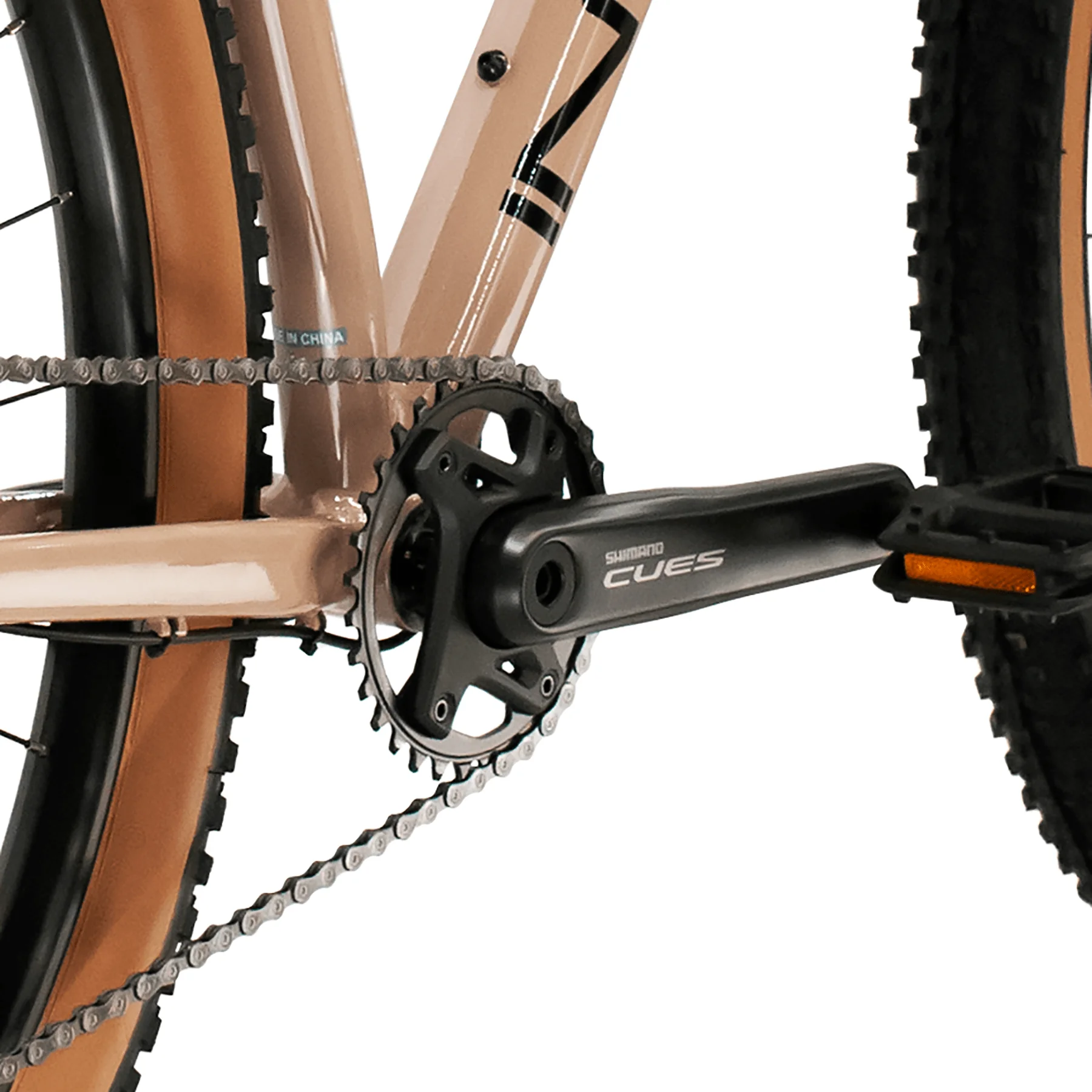

CRANKSETShimano FC-U6000-1, 32T, 170/175mm
BOTTOM BRACKETShimano BB-UR400, 68mm
REAR SHIFTERSHIMANO SL-U6000-11R, CUES, RIGHT, 11-SPEED RAPIDFIRE

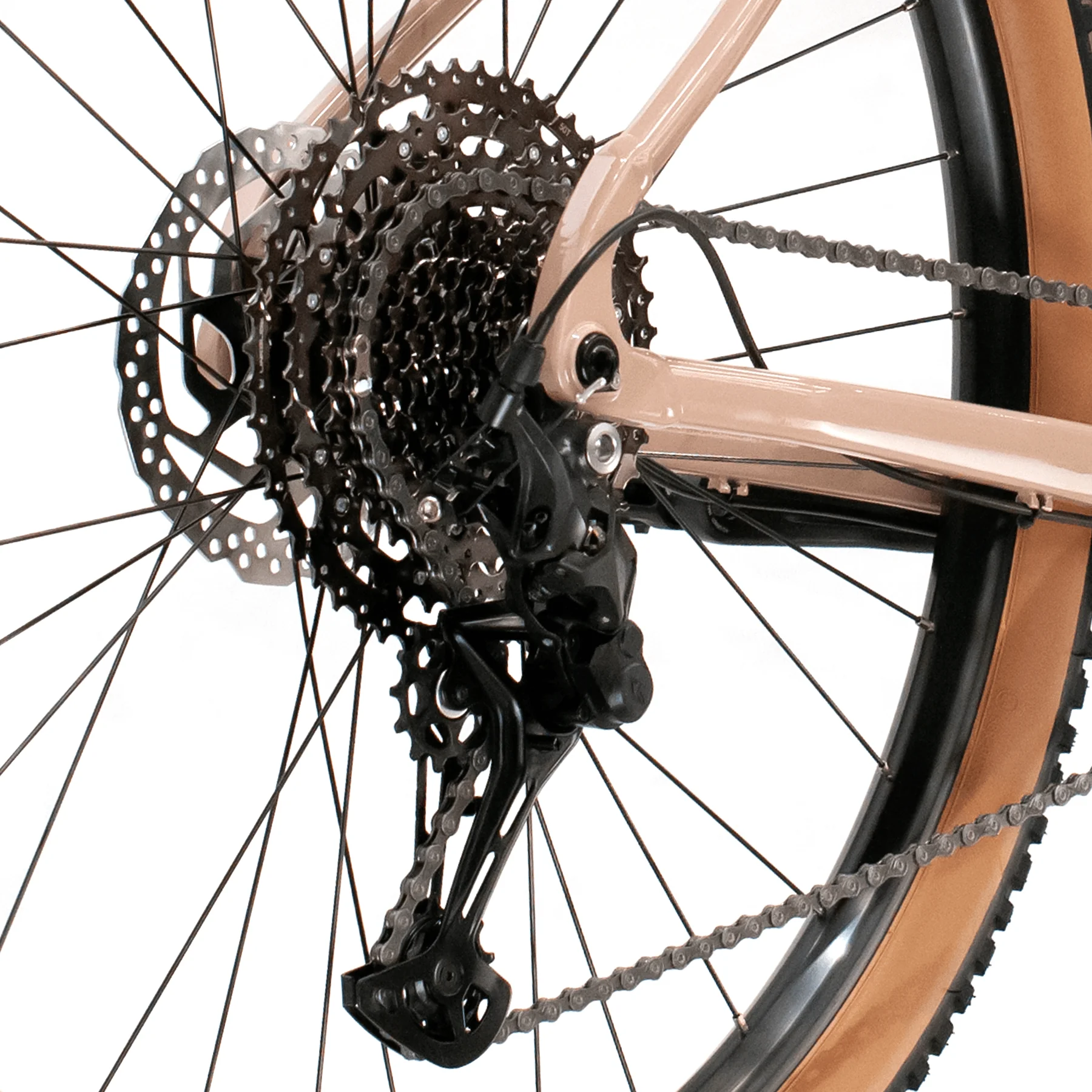

REAR DERAILLEURShimano SL-U6000-11R, CUES, 11-speed, with window display
CASETTE / FREEWHEELShimano CS-LG400-11, 11-speed, 11–50T
CHAINKMC XGlide, silver, 11-speed
BRAKES
FRONT BRAKEShimano MT401/MT410 brakes, 180mm front rotor
REAR BRAKEShimano MT401/MT410 brakes, 160mm rear rotoror
SEATING

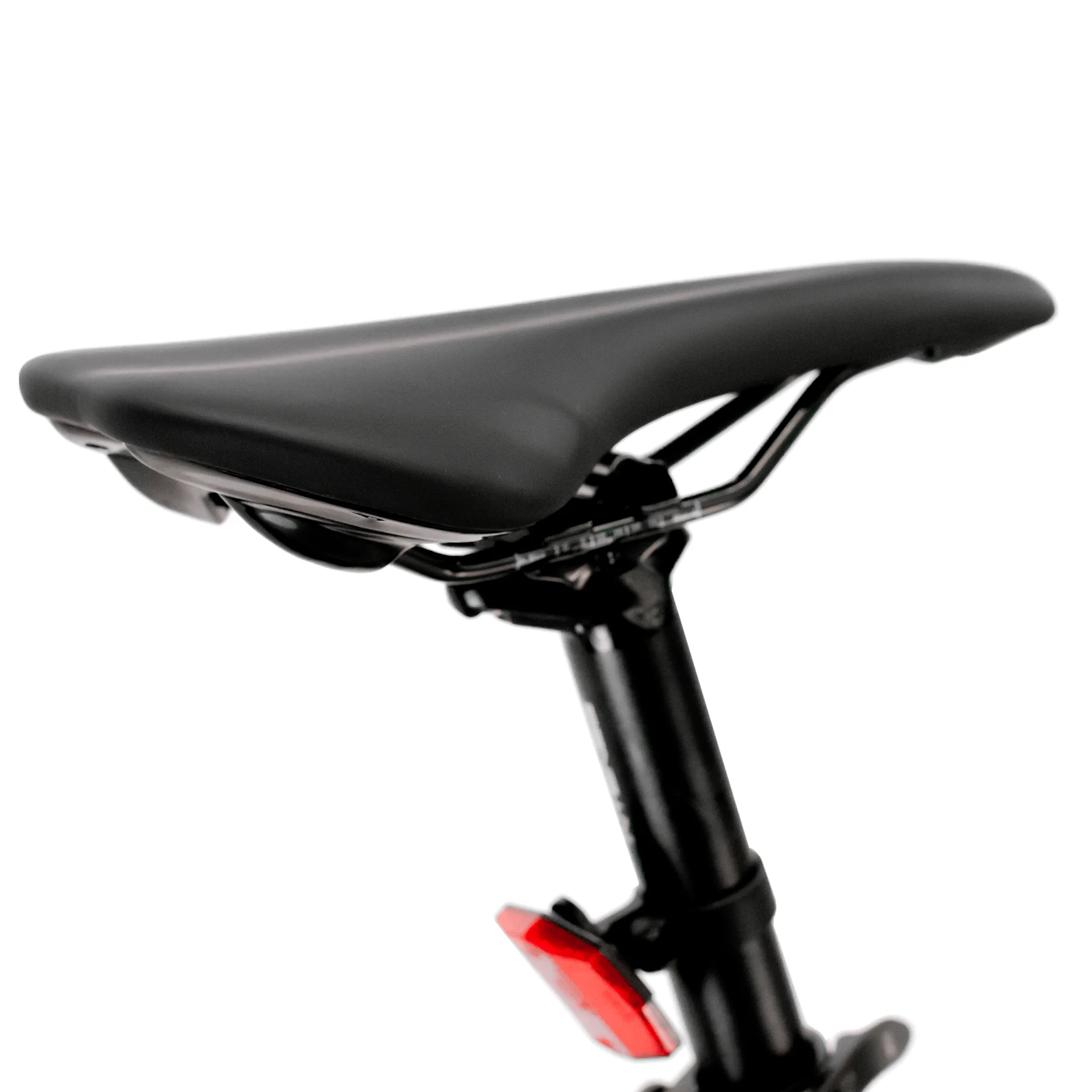

SADDLEIntense XC saddle, dual density base, cro-mo rails
SEAT POSTSP-2016 aluminum, 31.6mm diameter, 400mm length
SEAT CLAMPForged aluminum lever, anodized black, 36.4mm
PEDALVP-535, nylon body
