XC RACEView Specs

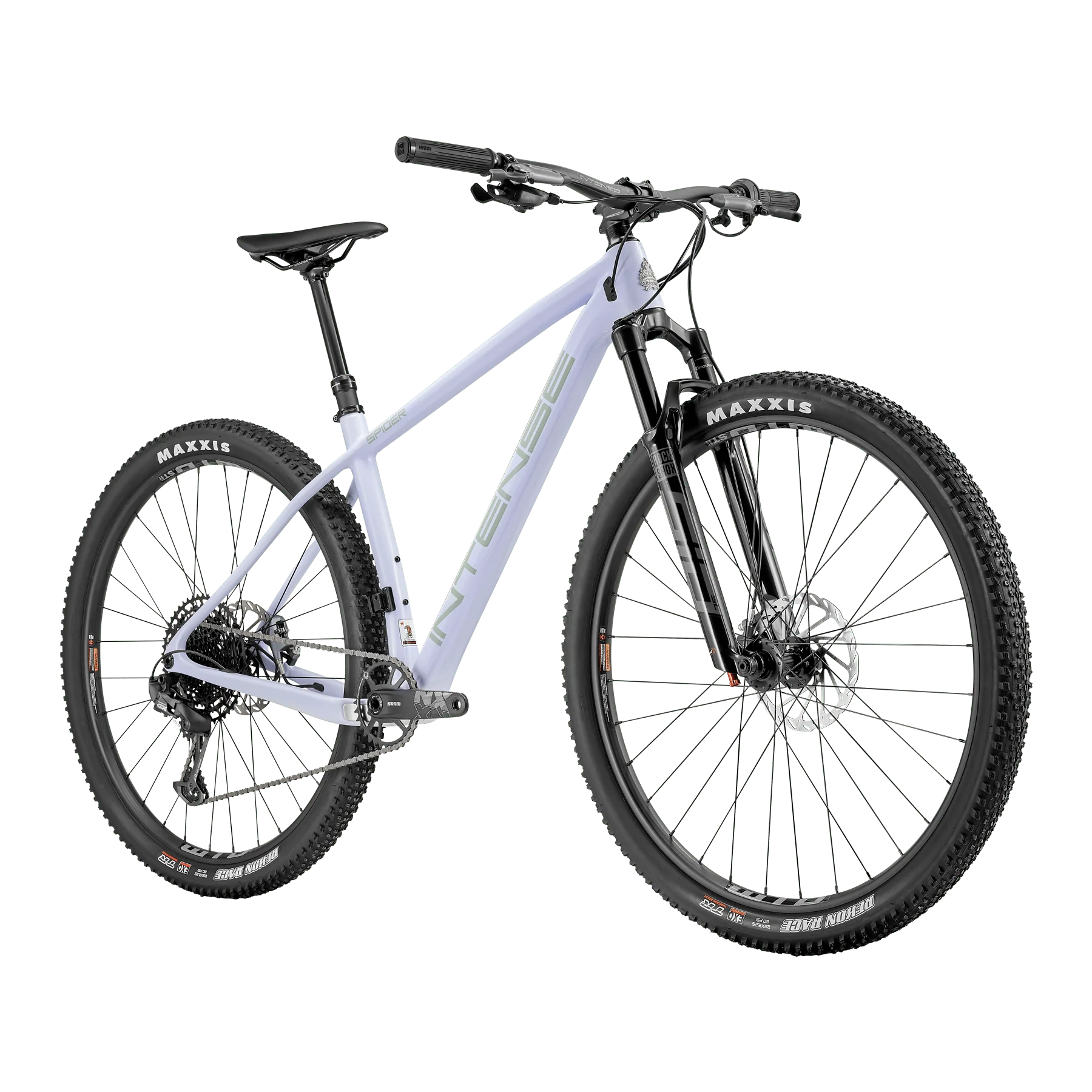

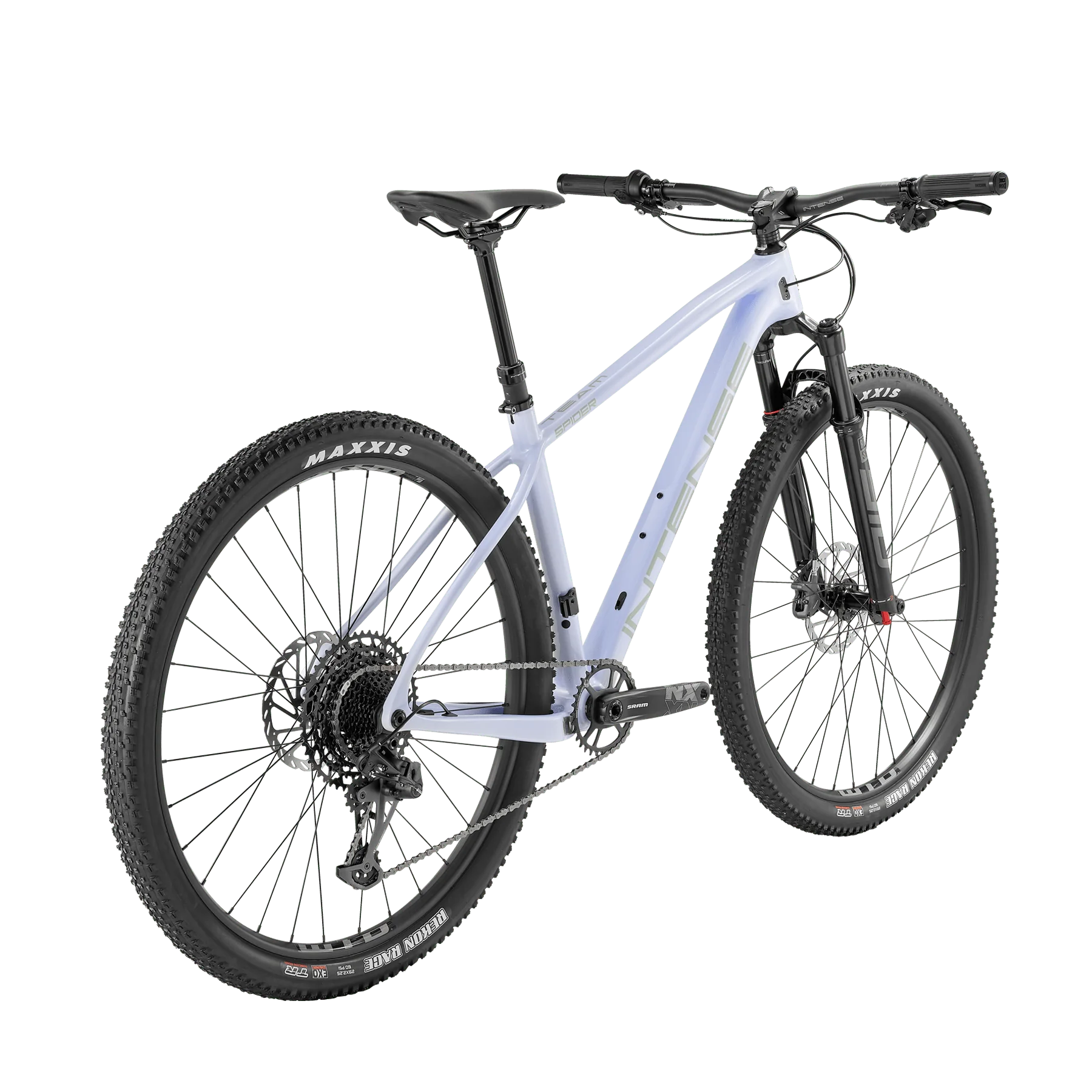

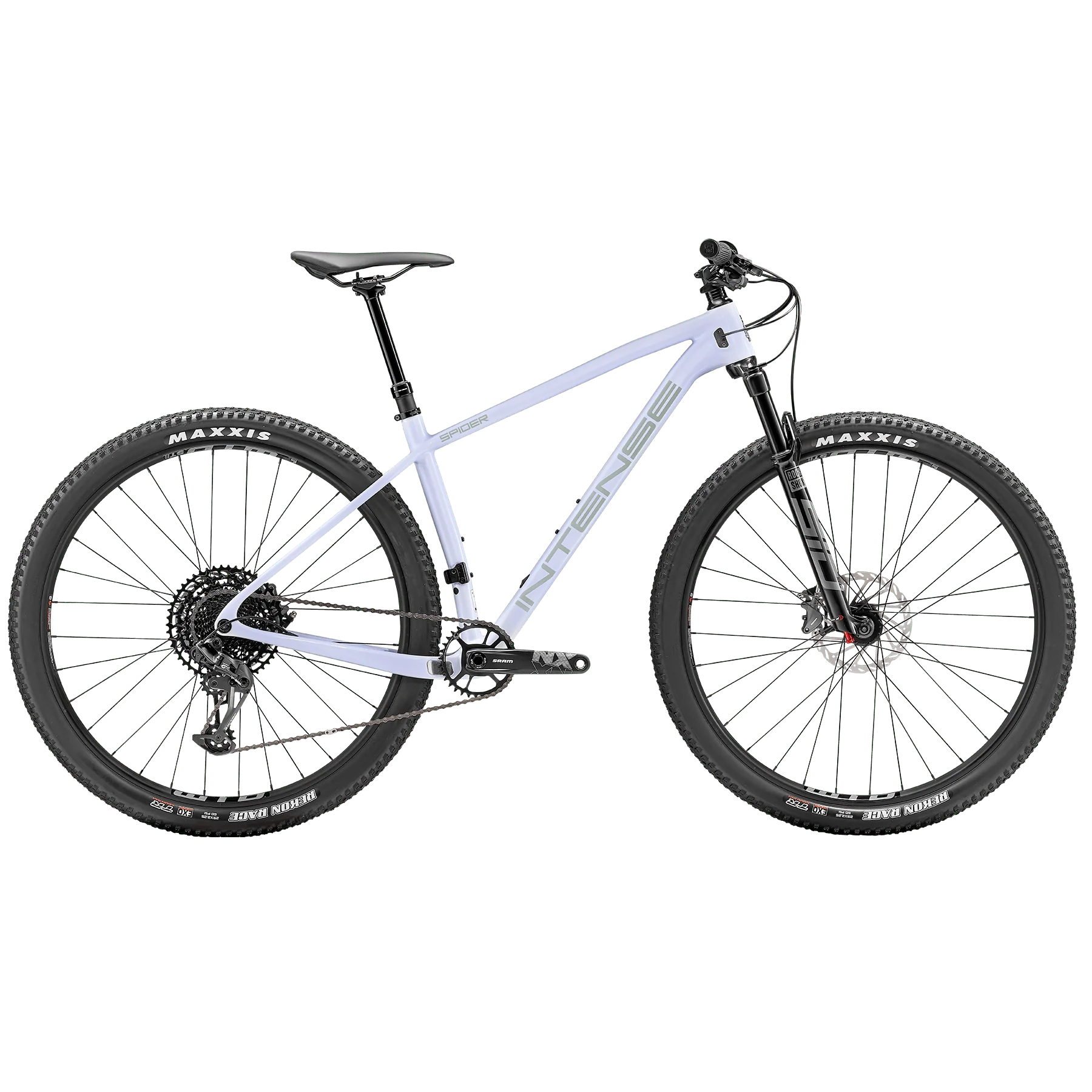

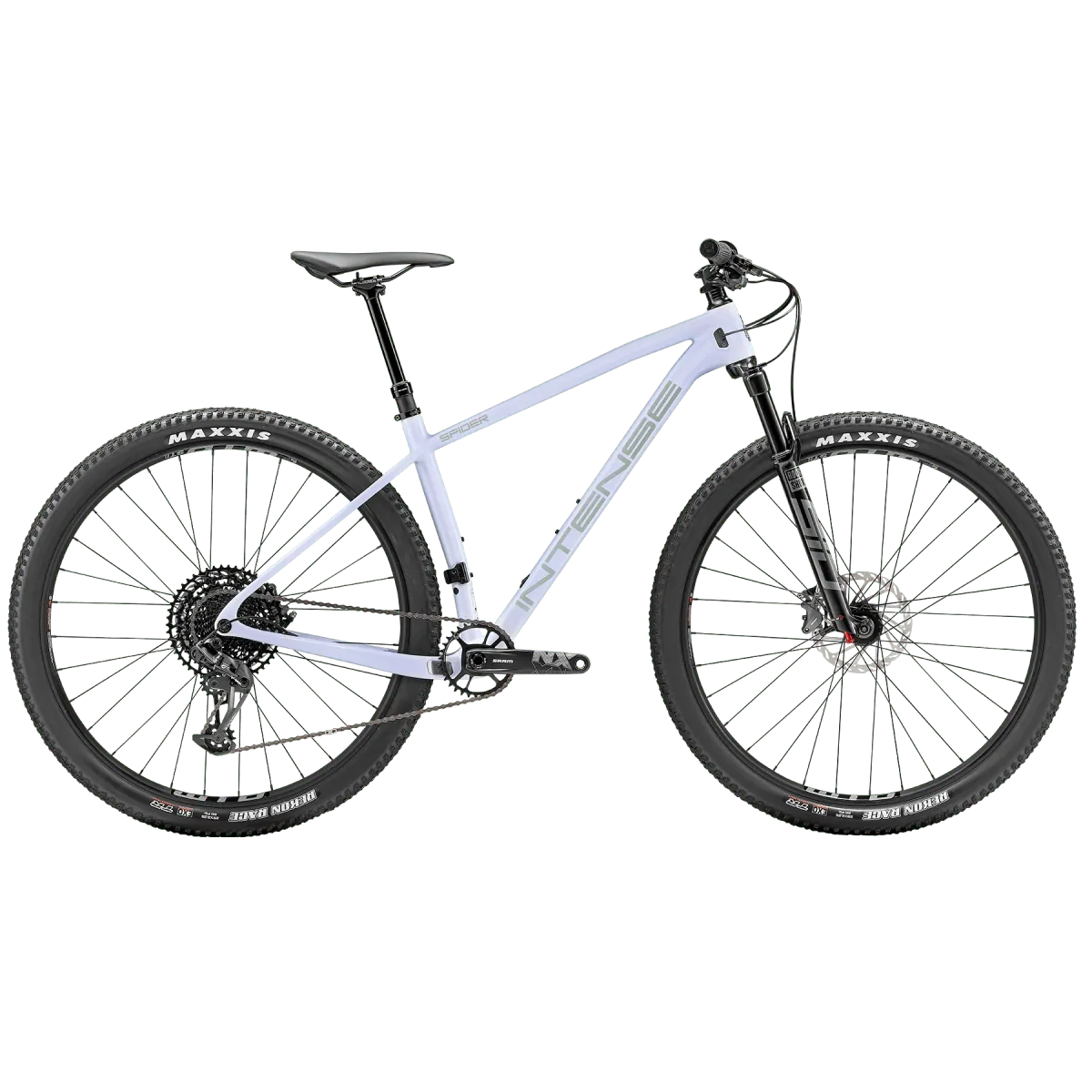

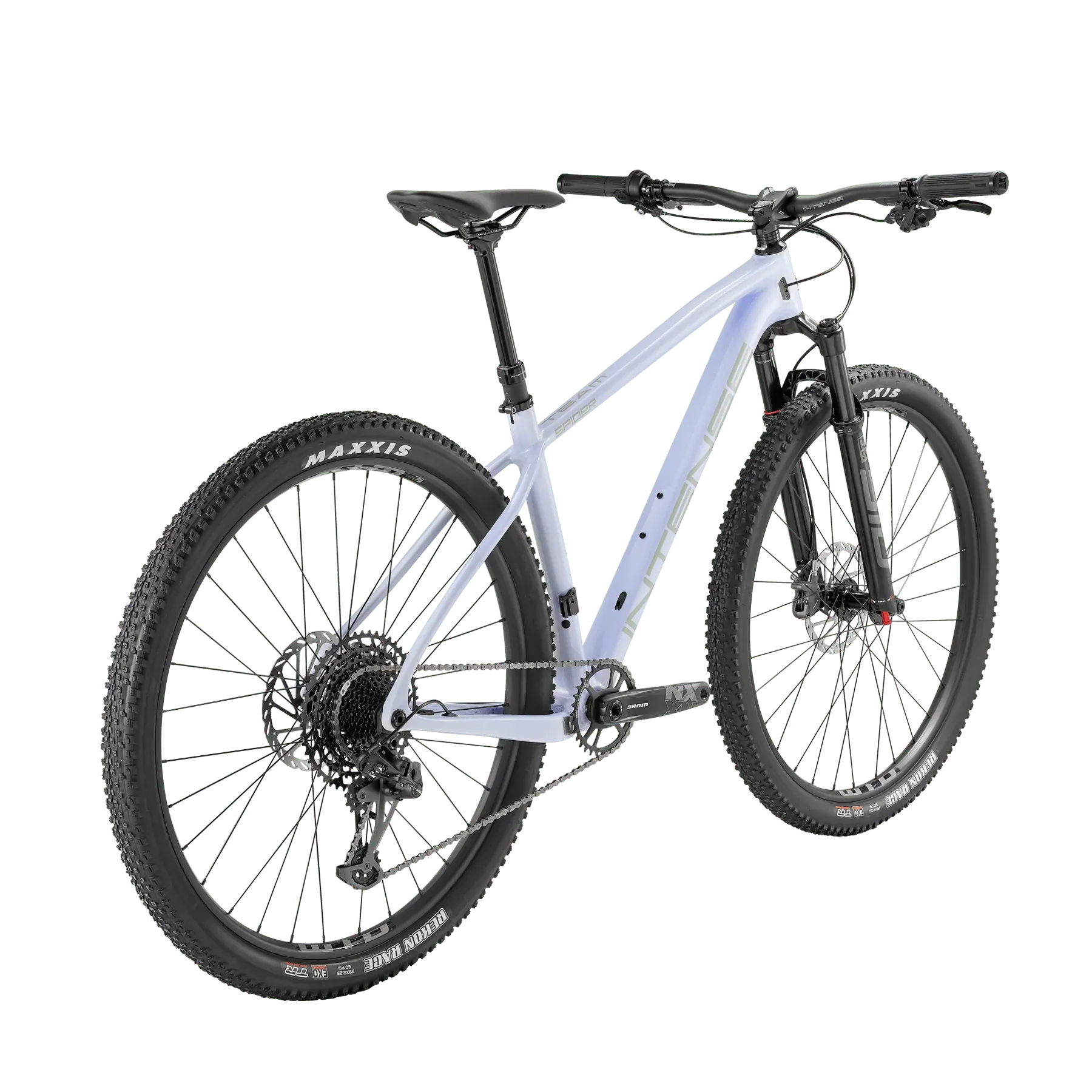

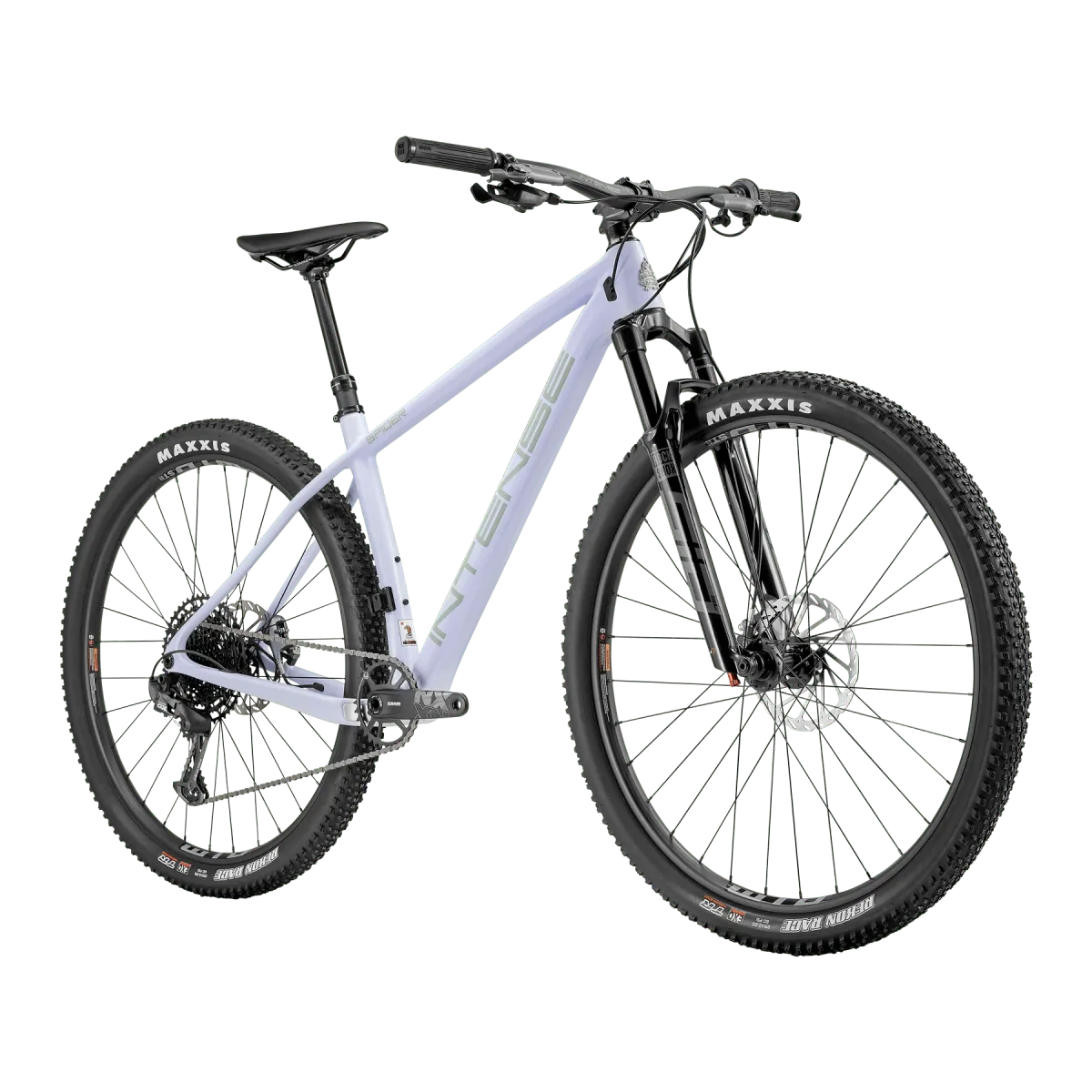

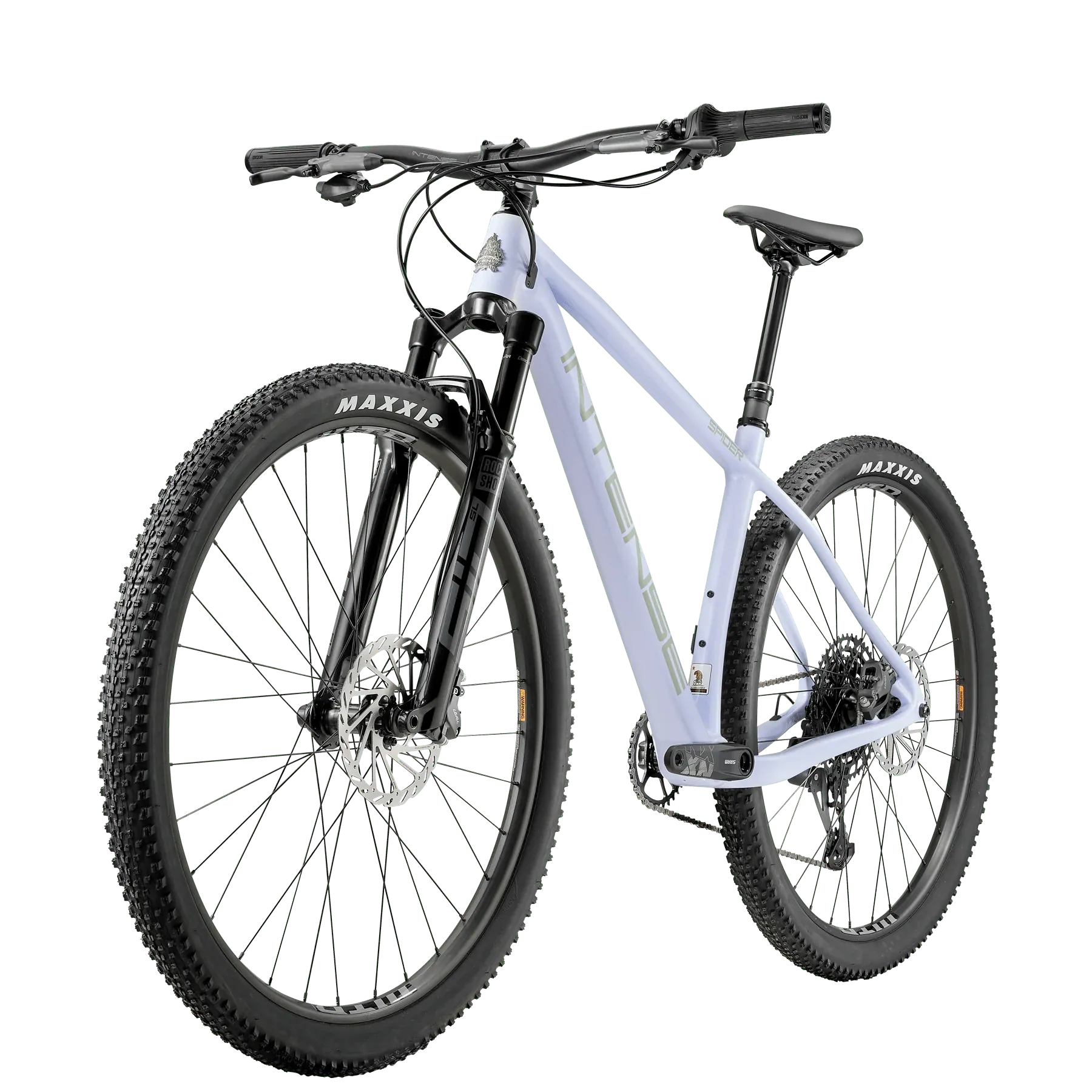

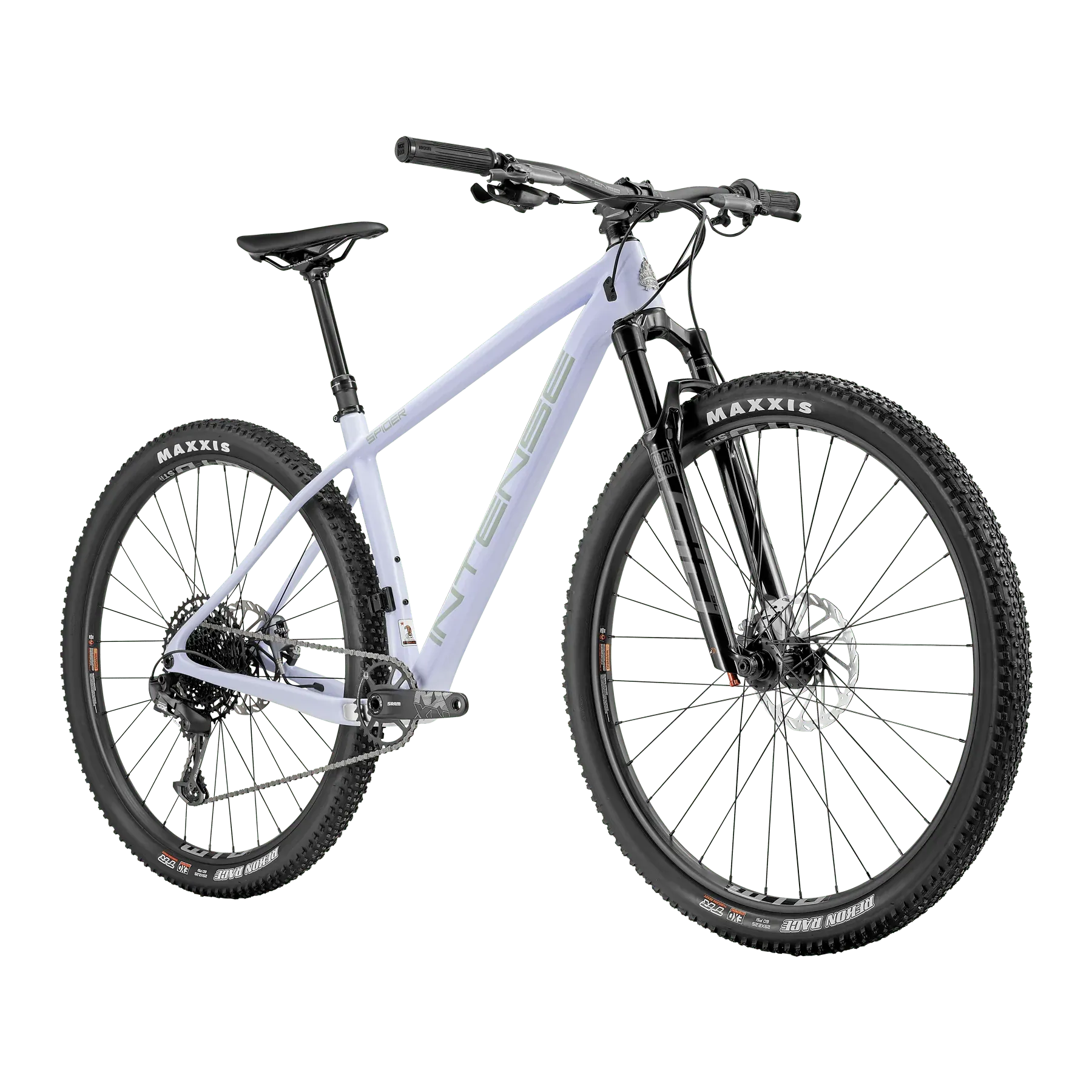

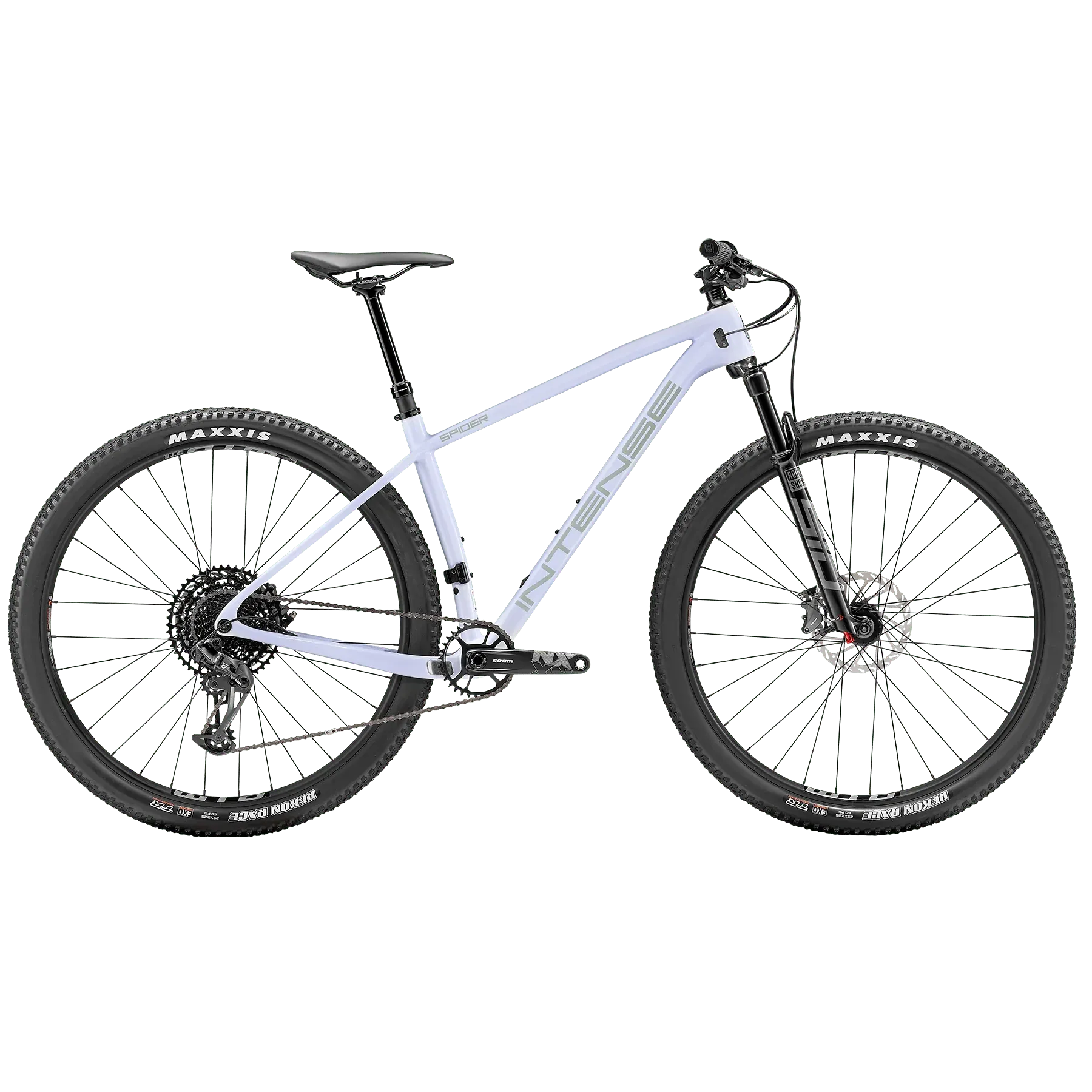

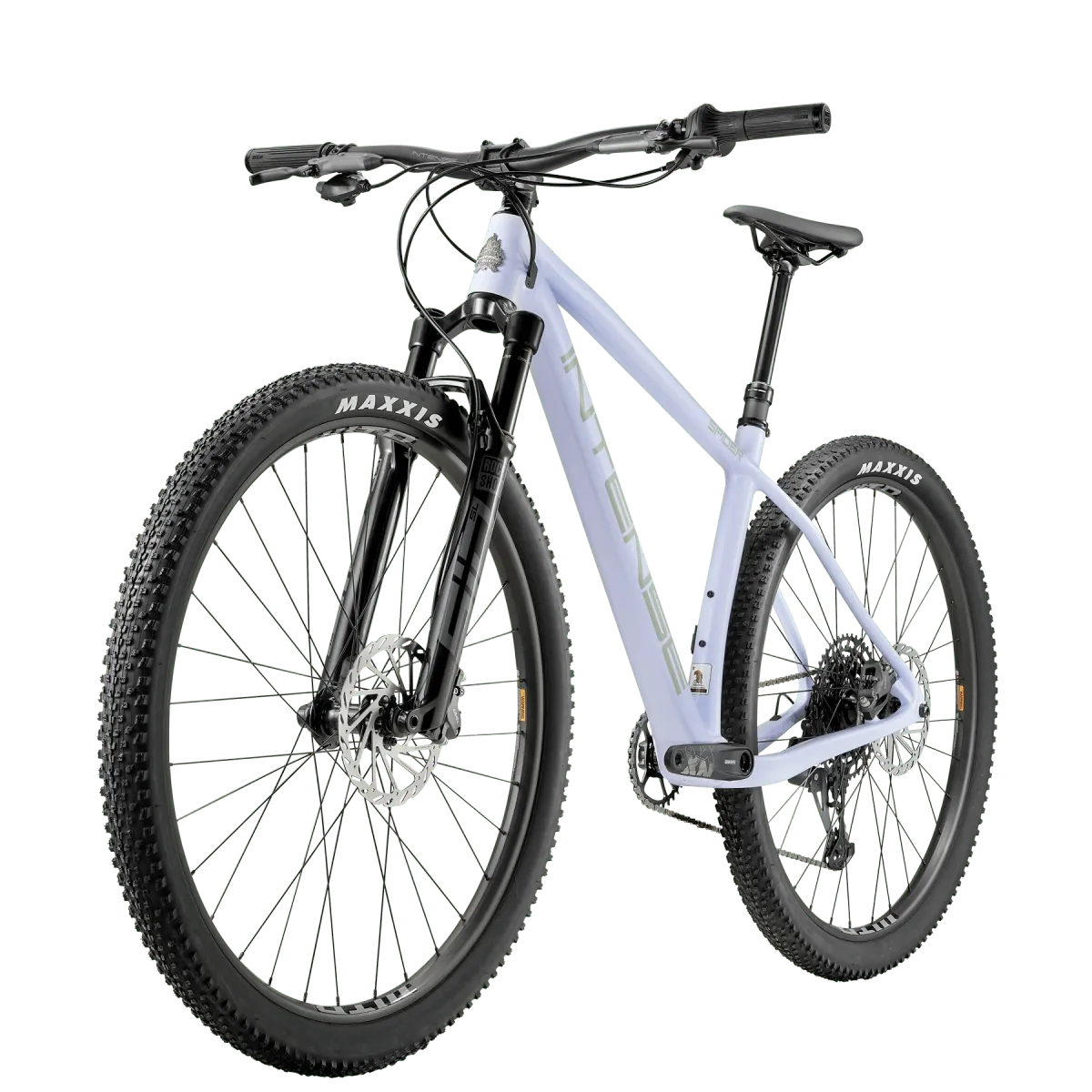

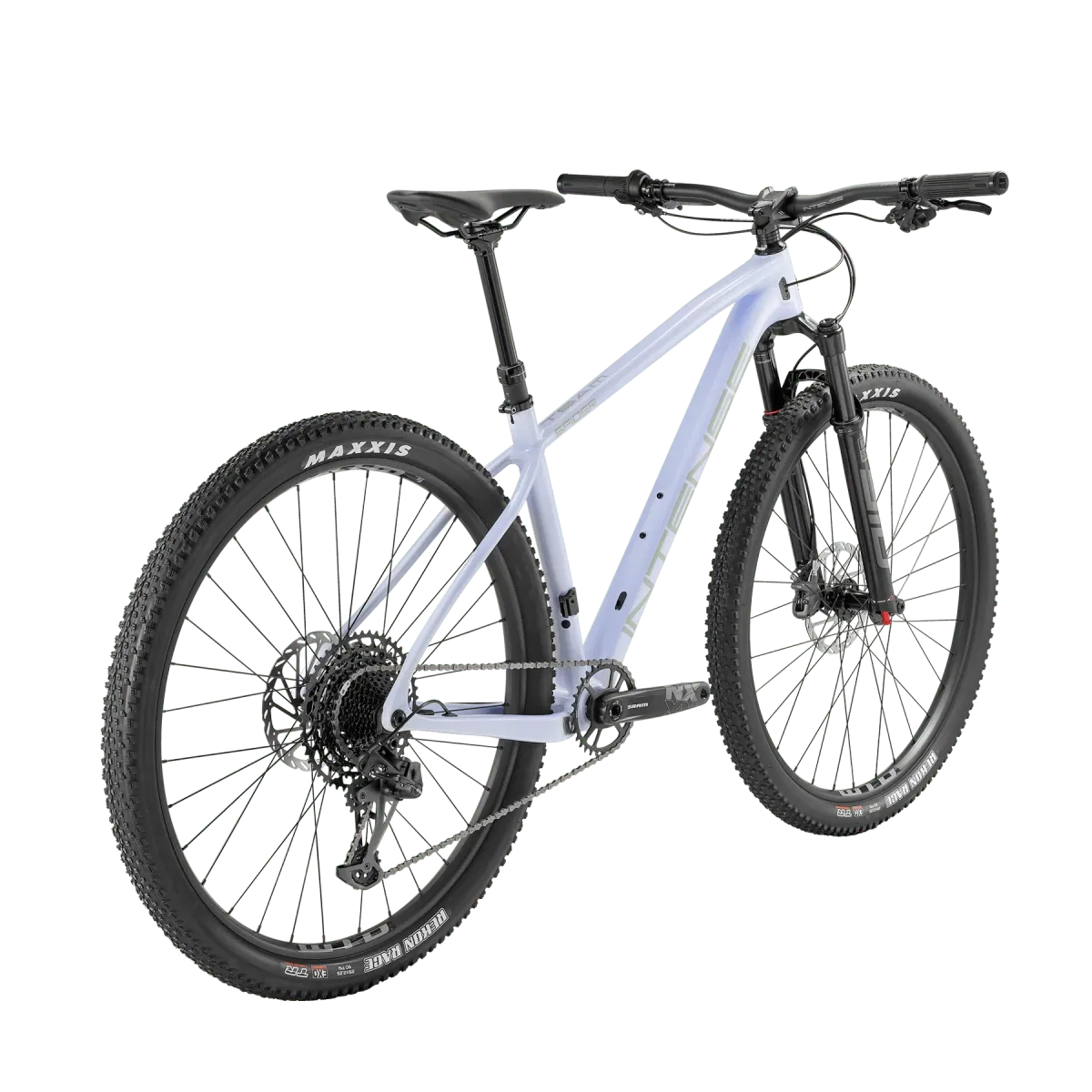

SPIDER CARBON TEAM
The Spider Carbon Team combines an ultralight carbon frame with the race-tuned RockShox SID SL fork featuring 100mm of travel and remote lockout. Outfitted with SRAM NX Eagle drivetrain and GX Eagle derailleur, this build offers precise shifting and excellent power transfer. Level Bronze Stealth brakes and carbon-ready handling make it the ultimate weapon for competitive racers seeking top-tier performance.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense XC carbon hardtail frame, 12x148 / 15x110 thru-axle, SRAM UDH compatible
FORKRockShox SID SL fork, 100mm travel, remote lockout
HEADSETSealed bearing Aheadset, tapered alloy steerer compatible
HEADSET SPACERSAlloy headset spacers, 3 × 5mm
BAR / STEM
HANDLEBAR6061-T6 alloy handlebar, 760mm, 31.8mm bore, 20mm rise, 7° sweep
STEM6061 forged alloy stem, 45mm, 0°, 31.8mm bar bore, 40mm height
GRIPSRAM integrated remote grip for fork lockout
WHEEL SET
TIREMaxxis Rekon Race 29x2.25, EXO/TR, 60TPI, foldable
RIMWTB i27 TCS 2.0 rim, 29”, 32h, anodized black
FRONT HUBFormula 711, 15mm axle, 110mm O.L.D., 6-bolt, 32h
REAR HUBFormula DHT 148, 12mm axle, 148mm O.L.D., 6-bolt, 32h
SPOKEStainless steel, 14G
SHIFTING DRIVE TRAIN
CRANKSETSRAM NX Eagle crankset, 32T, 175mm, DUB spindle
BOTTOM BRACKETSRAM DUB BSA bottom bracket, MTB73
REAR SHIFTERSRAM NX Eagle 12-speed trigger shifter
REAR DERAILLEURSRAM GX Eagle rear derailleur, 12-speed
CASETTE / FREEWHEELSRAM PG1230 Eagle cassette, 11–50T, 12-speed
CHAINSRAM NX Eagle 12-speed chain, 116 links, PowerLock
BRAKES
FRONT BRAKESRAM Level Bronze Stealth brakes, 2-piston, 180mm rotors
REAR BRAKESRAM Level Bronze Stealth brakes, 2-piston, 180mm rotors
SEATING
SADDLEIntense XC saddle, dual density base, cro-mo rails
SEAT POSTKS KSP900-i dropper, 31.6mm, 125mm travel, Westy alloy lever
SEAT CLAMPAnodized black seat clamp, without lever, φ35mm
