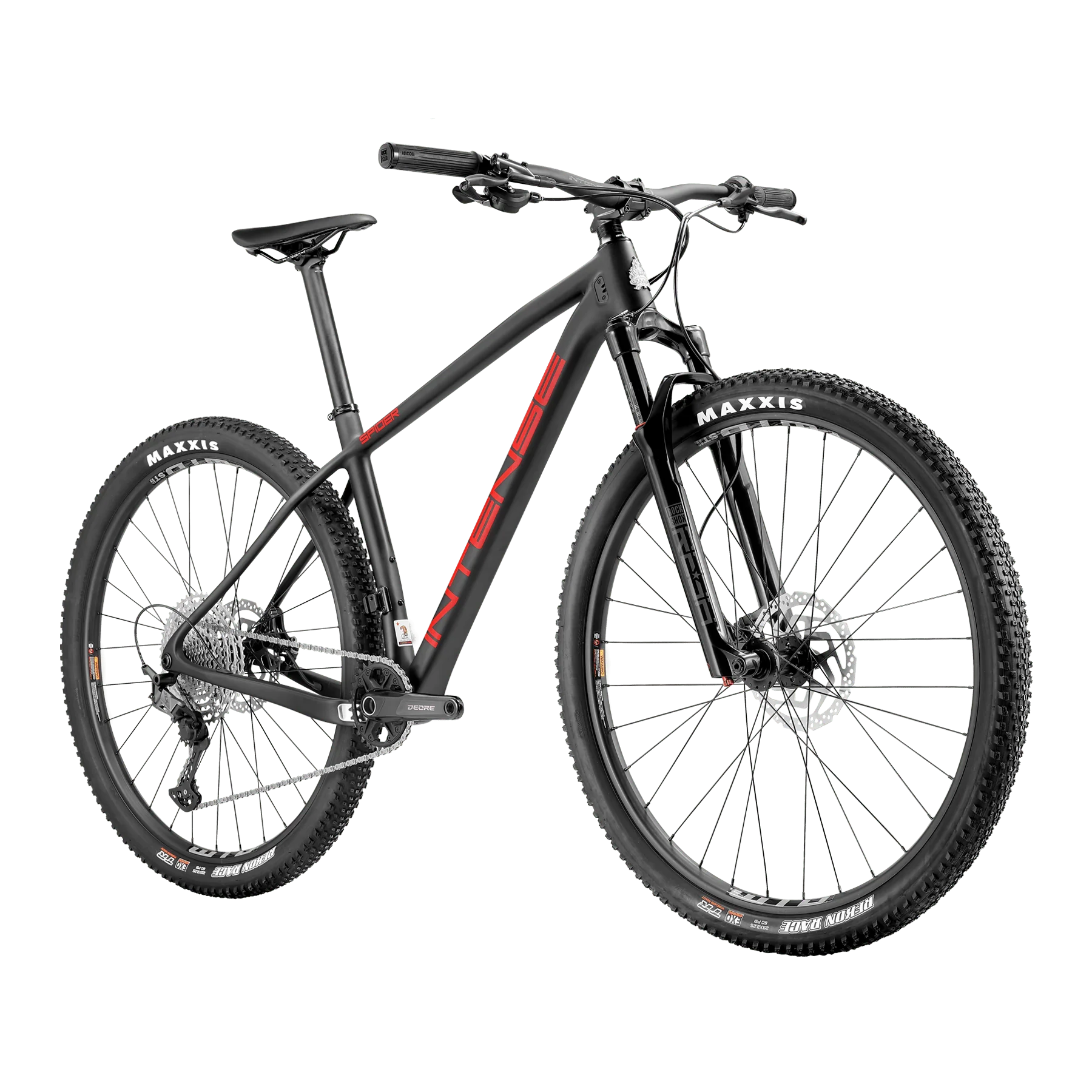

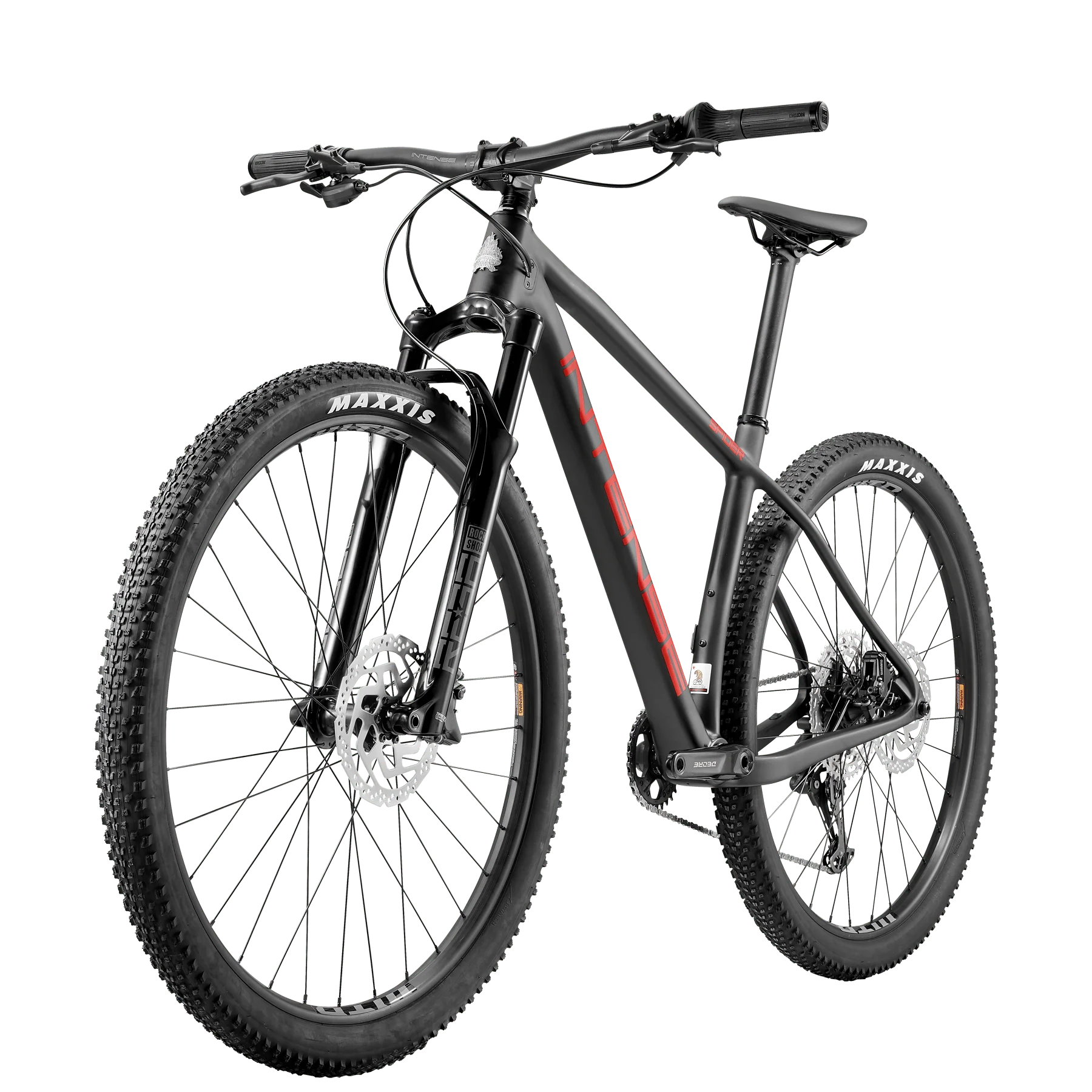

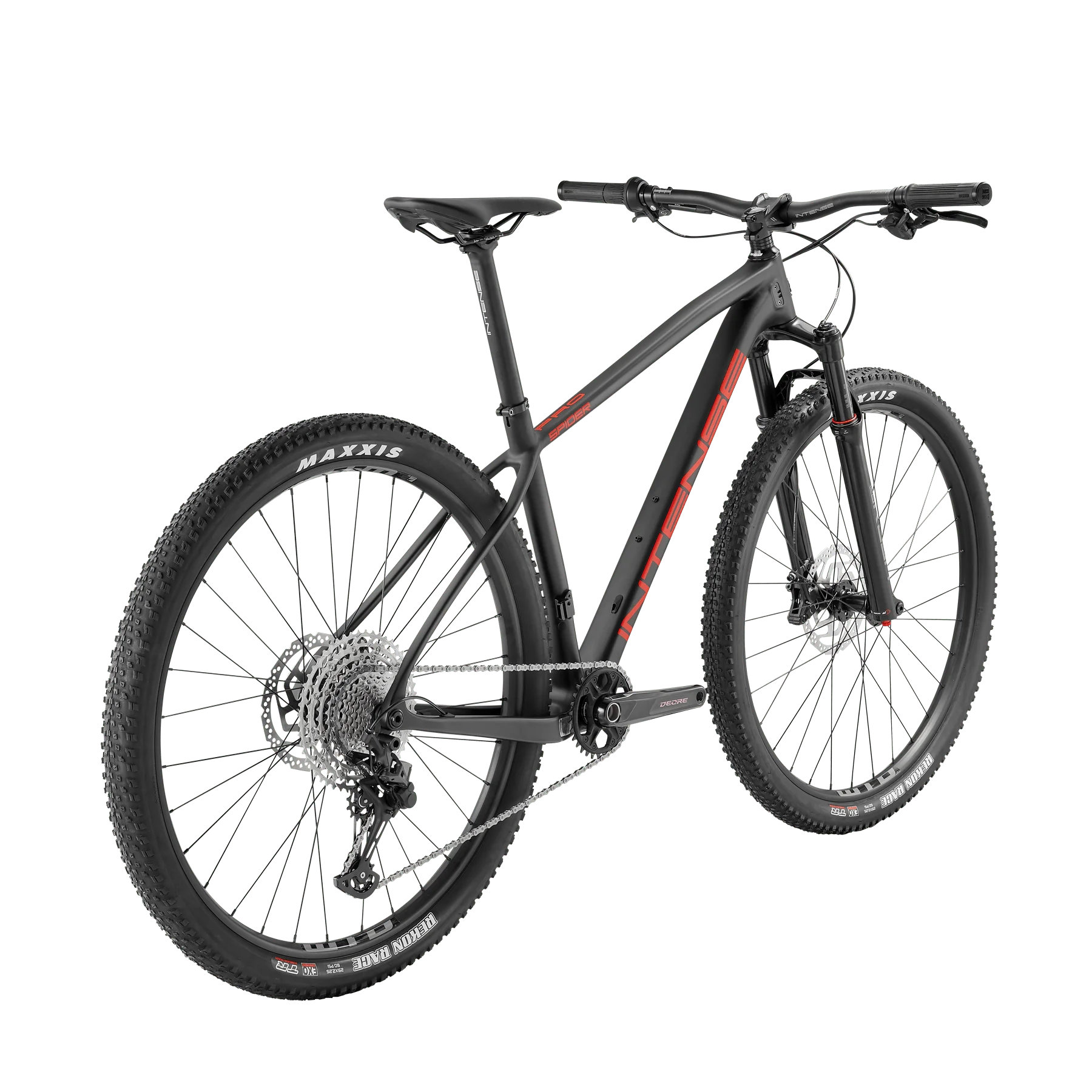

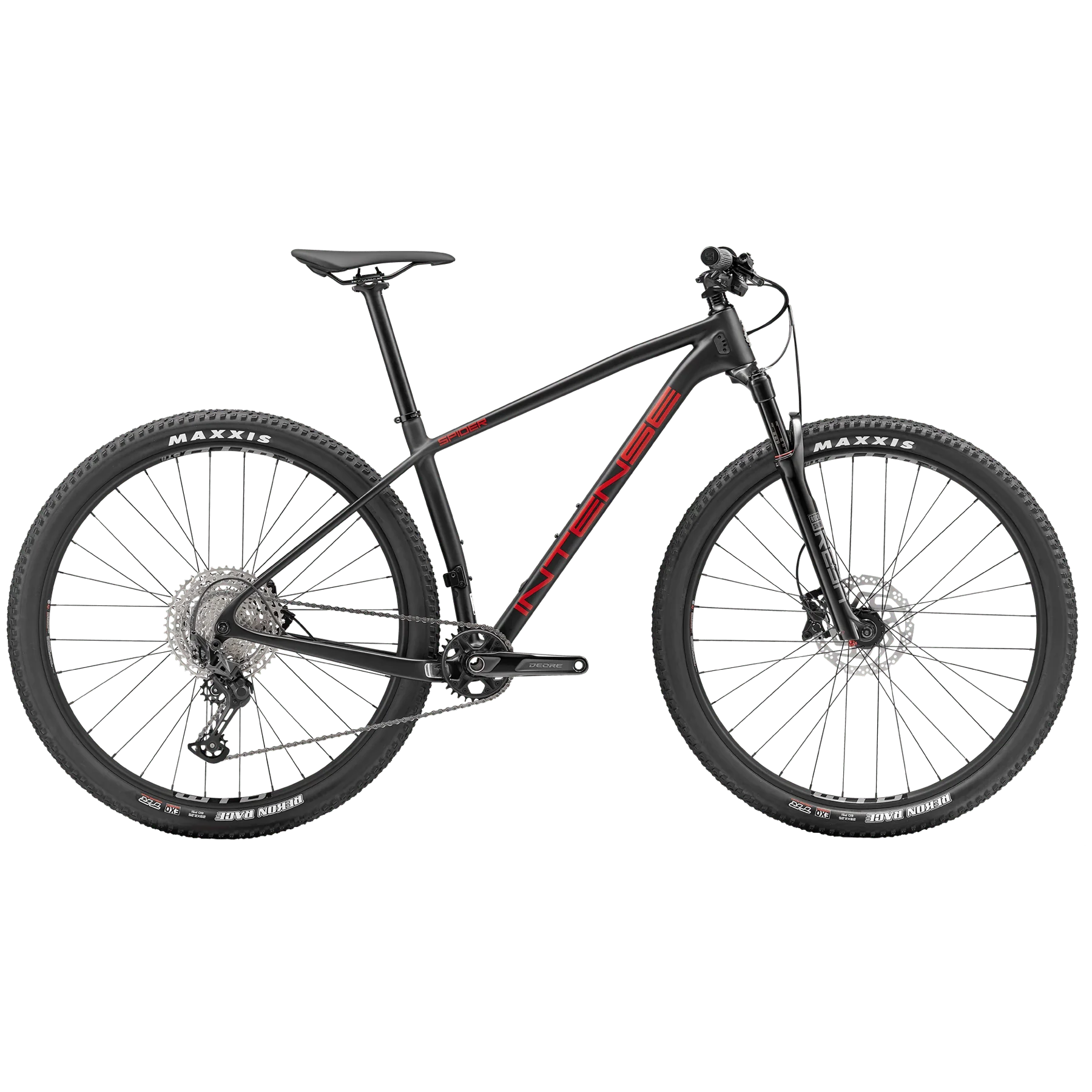

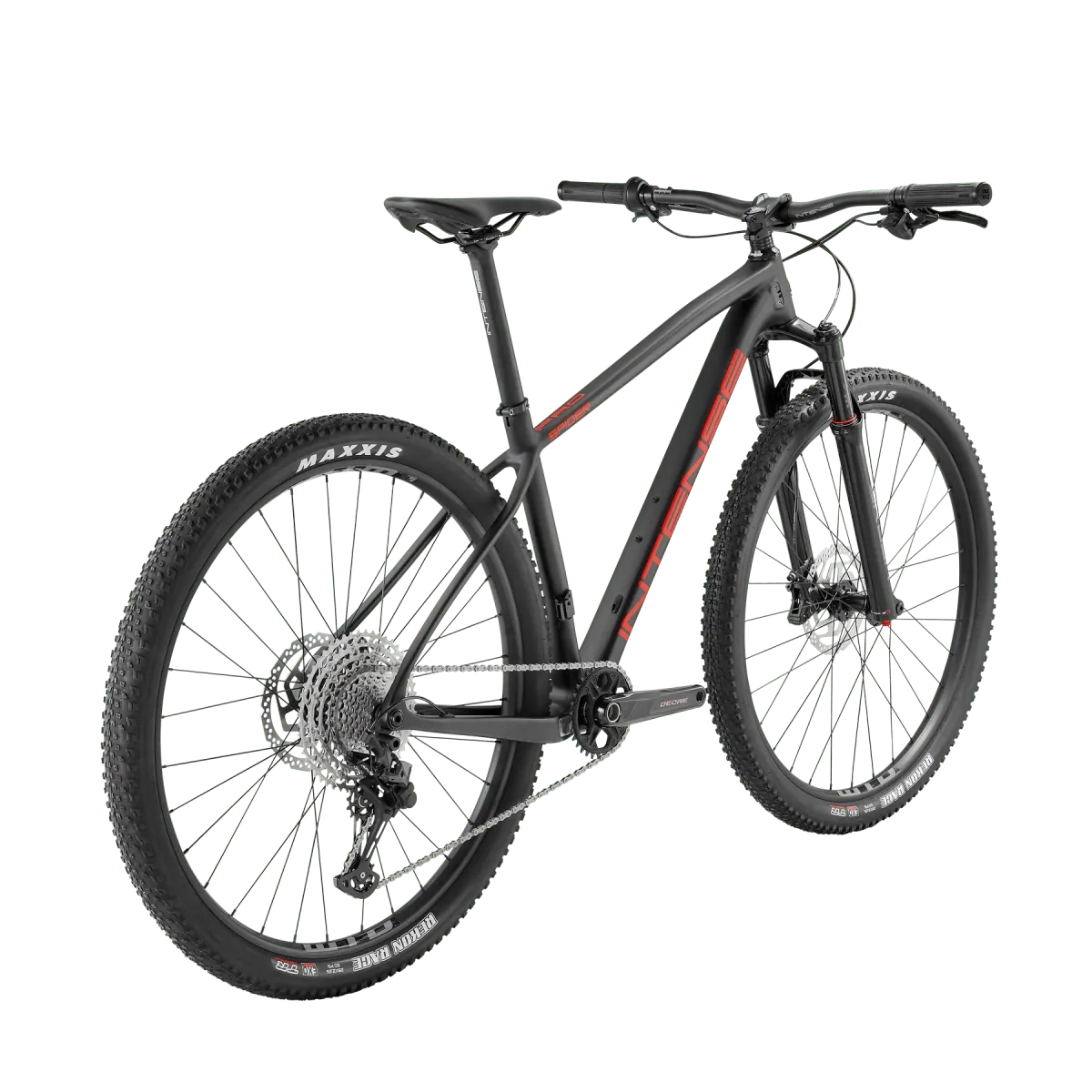

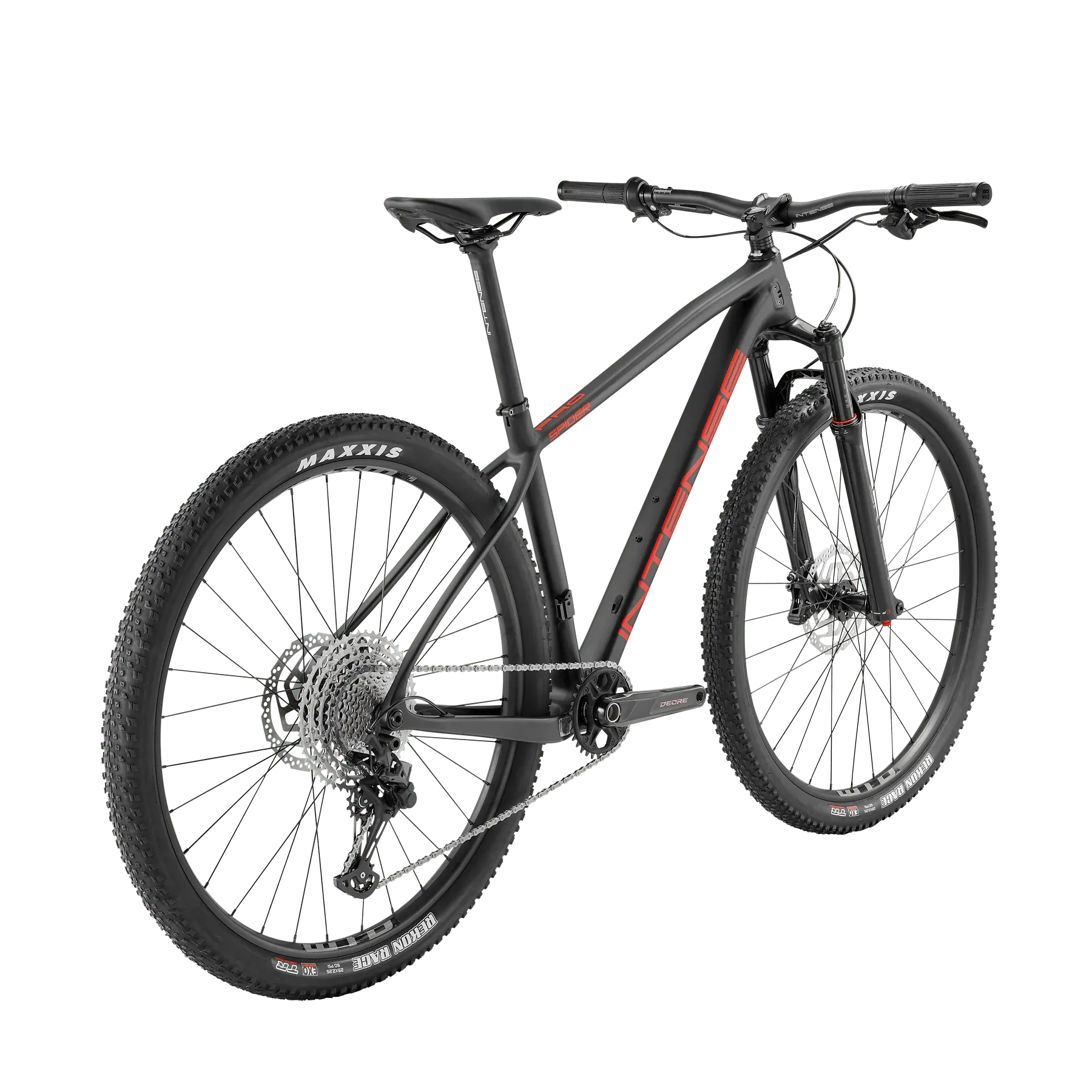

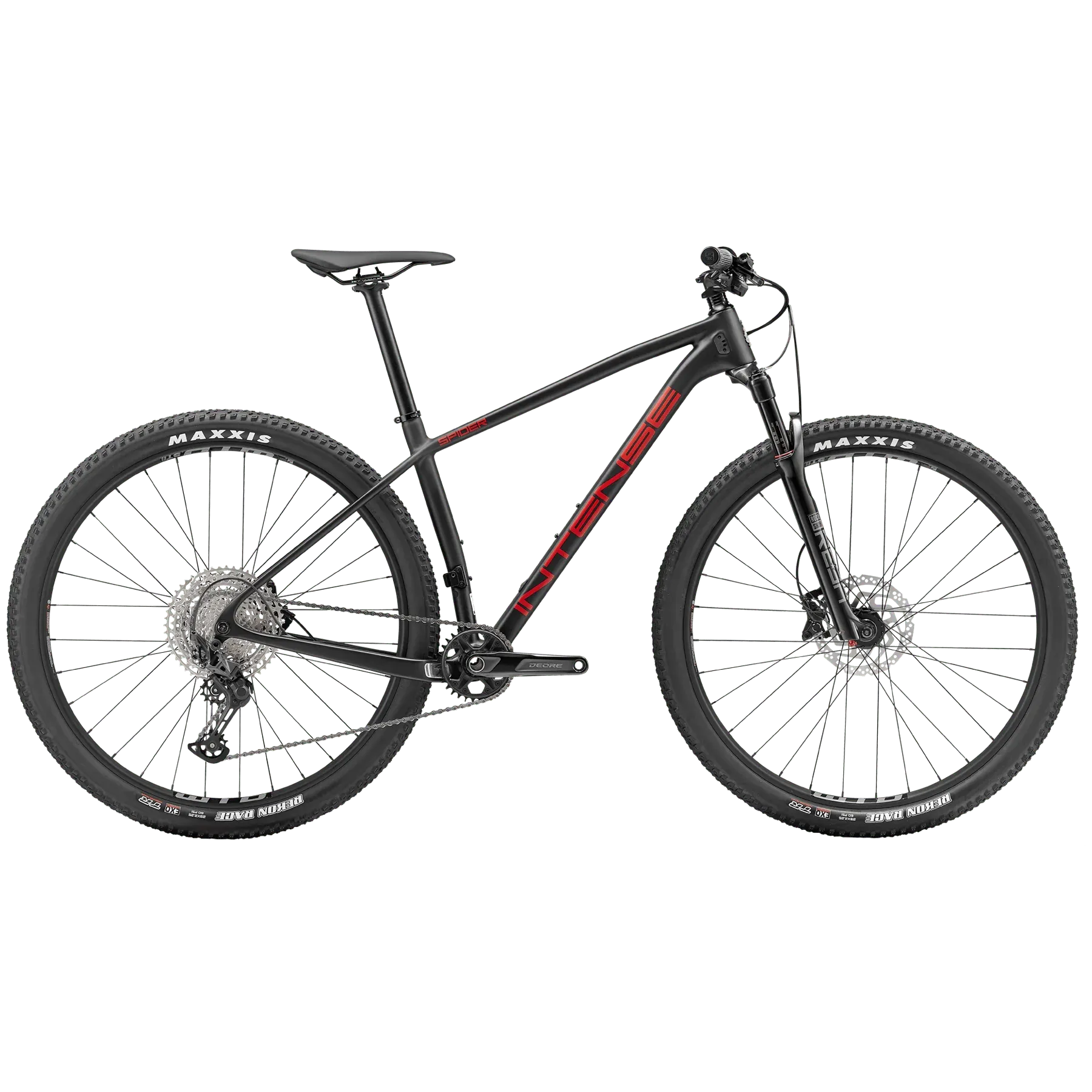

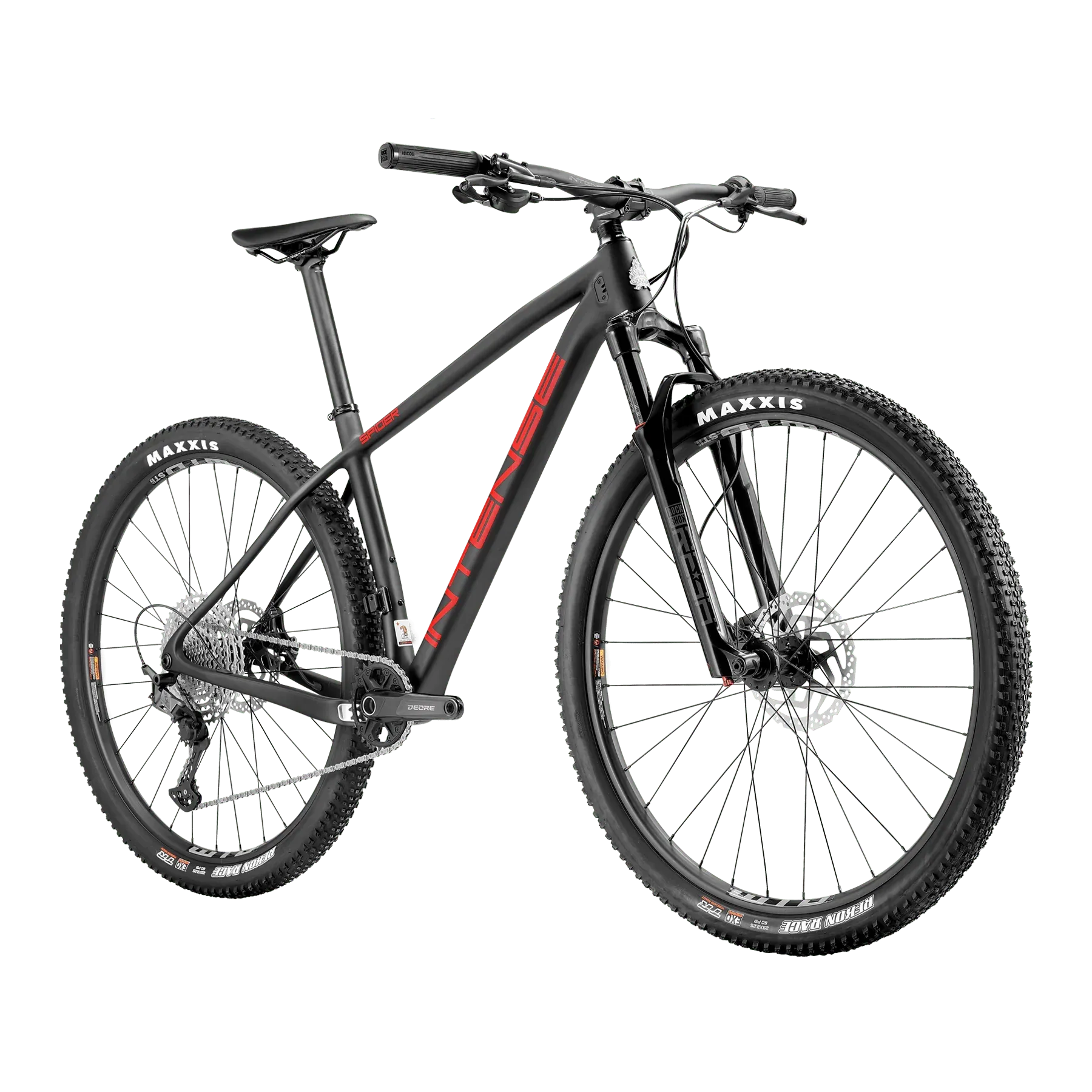

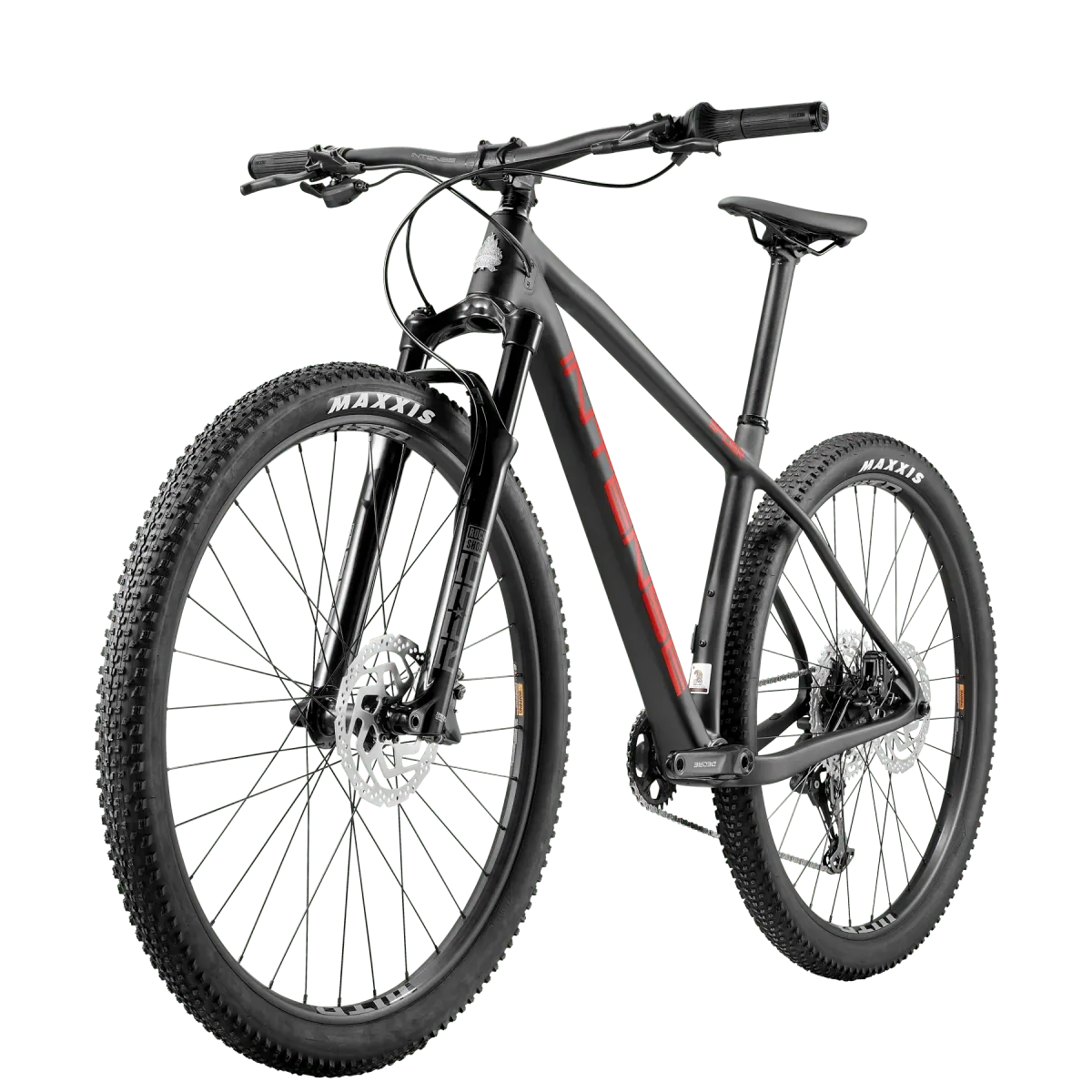

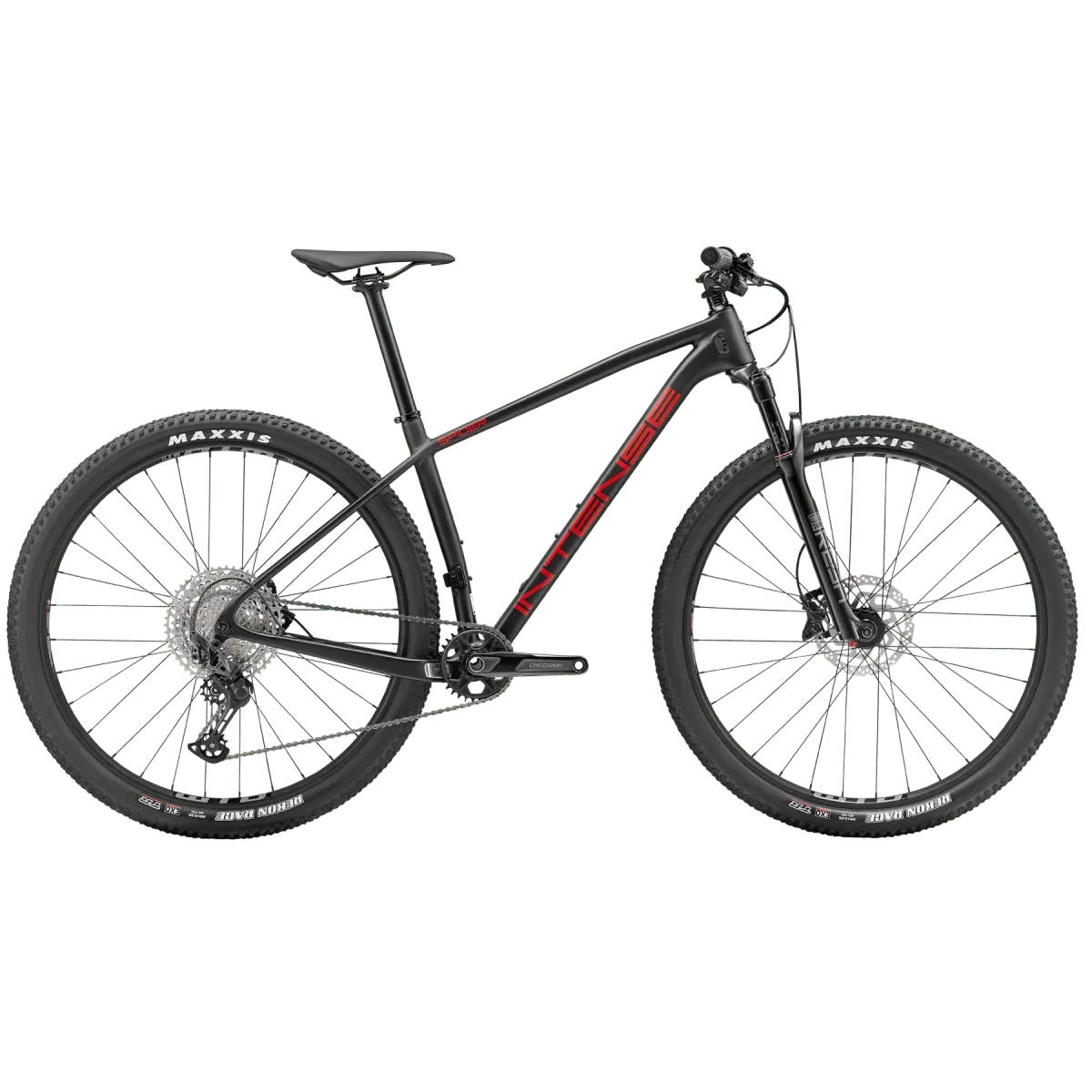

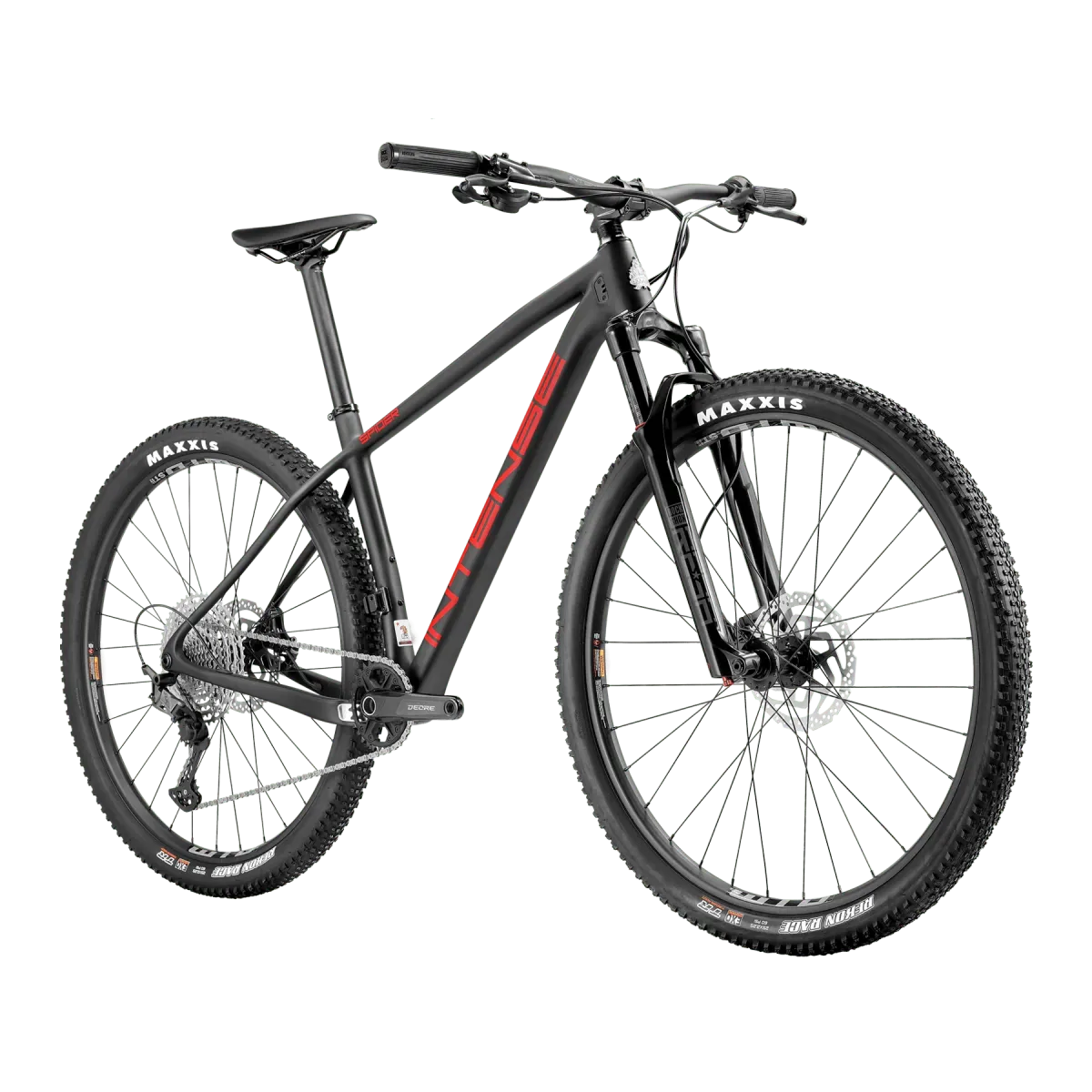

SPIDER CARBON PRO
Featuring a carbon frame and RockShox Reba RL fork with 100mm of travel and remote lockout, the Spider Carbon Pro is built for precision. Shimano’s SLX 12-speed drivetrain with a Hyperglide+ cassette ensures crisp and quick gear changes making it ideal for riders aiming to elevate their racing performance with a balance of speed and reliability.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense XC carbon frame, boost thru-axle (12x148 / 15x110), built to SRAM UDH standard
FORKRockShox Reba RL, 100mm travel, 29”, with remote lockout
HEADSETSealed bearing aheadset for tapered alloy steerer
HEADSET SPACERSAlloy headset spacers, 3 × 5mm
BAR / STEM
HANDLEBAR6061-T6 aluminum handlebar, 760mm width, 31.8mm bar bore, 20mm rise, 7° back sweep
STEM6061 aluminum stem, 45mm extension, 31.8mm bar bore, 0° angle, 40mm height
GRIPDual-density grip with lock-on design
WHEEL SET
TIREMaxxis Rekon Race, 29 × 2.25, 60 TPI, foldable, EXO/TR
RIMWTB i27 TCS 2.0, 29”, 32h, anodized black
FRONT HUBFormula DC-711 front hub, 15mm axle, 6-bolt, 110mm OLD, 32h
REAR HUBFormula MST 148 rear hub, 12mm axle, 148mm OLD, 32h, 6-bolt, 12-speed compatible
SPOKEStainless steel spokes / 14G
SHIFTING DRIVE TRAIN
CRANKSETShimano FC-M6120-1 crankset, 32T, 175mm, Hollowtech II
BOTTOM BRACKETShimano BB-MT501 bottom bracket
REAR SHIFTERShimano SLX SL-M7100-R 12-speed RapidFire Plus shifter
REAR DERAILLEURShimano RD-M7100-SGS rear derailleur, SLX, 12-speed
CASETTE / FREEWHEELShimano CS-M6100-12 cassette, 10–51T, Hyperglide+
CHAINShimano CN-M6100 chain, 116 links, Quick-Link, 12-speed
BRAKES
FRONT BRAKEShimano MT410 4-piston hydraulic brake, 180mm rotor
REAR BRAKEShimano MT410 4-piston hydraulic brake, 180mm rotor
SEATING
SADDLEIntense XC Race saddle, dual density base, cro-mo rail
SEAT POSTAlloy seat post, 31.6mm, 350mm, 0mm offset, forged
SEAT CLAMPAnodized black seat clamp, without lever, φ35mm
