SPIDER SPORT

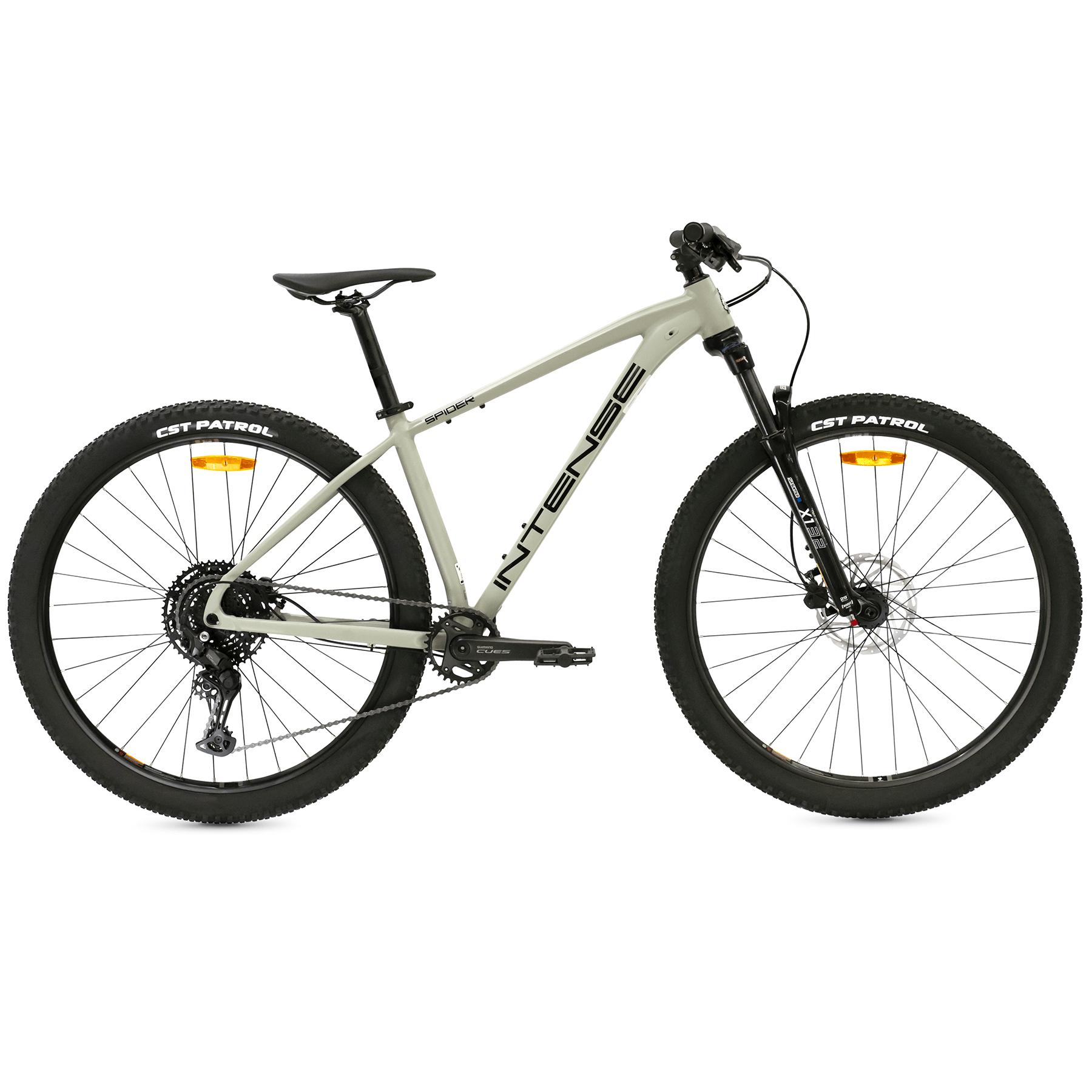

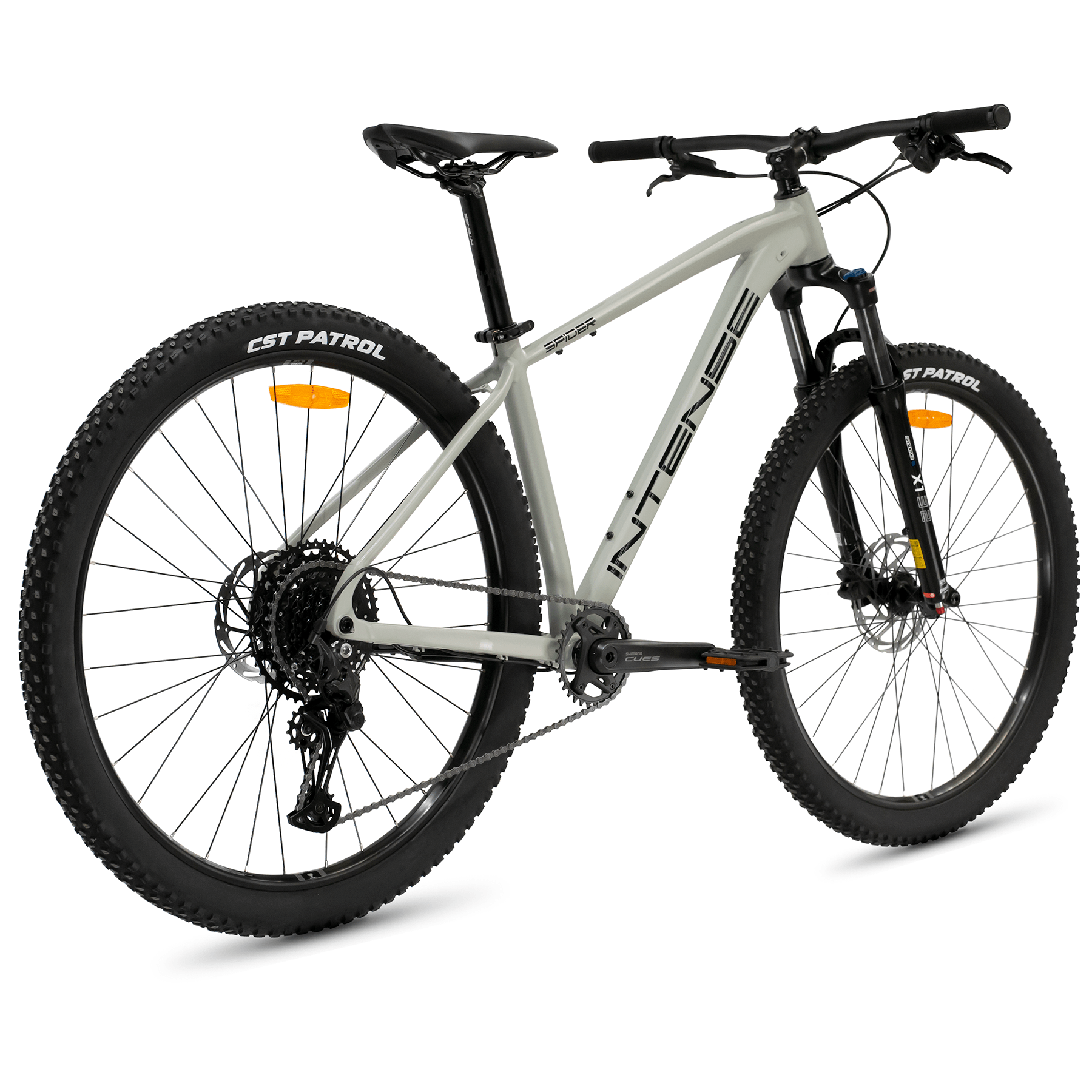

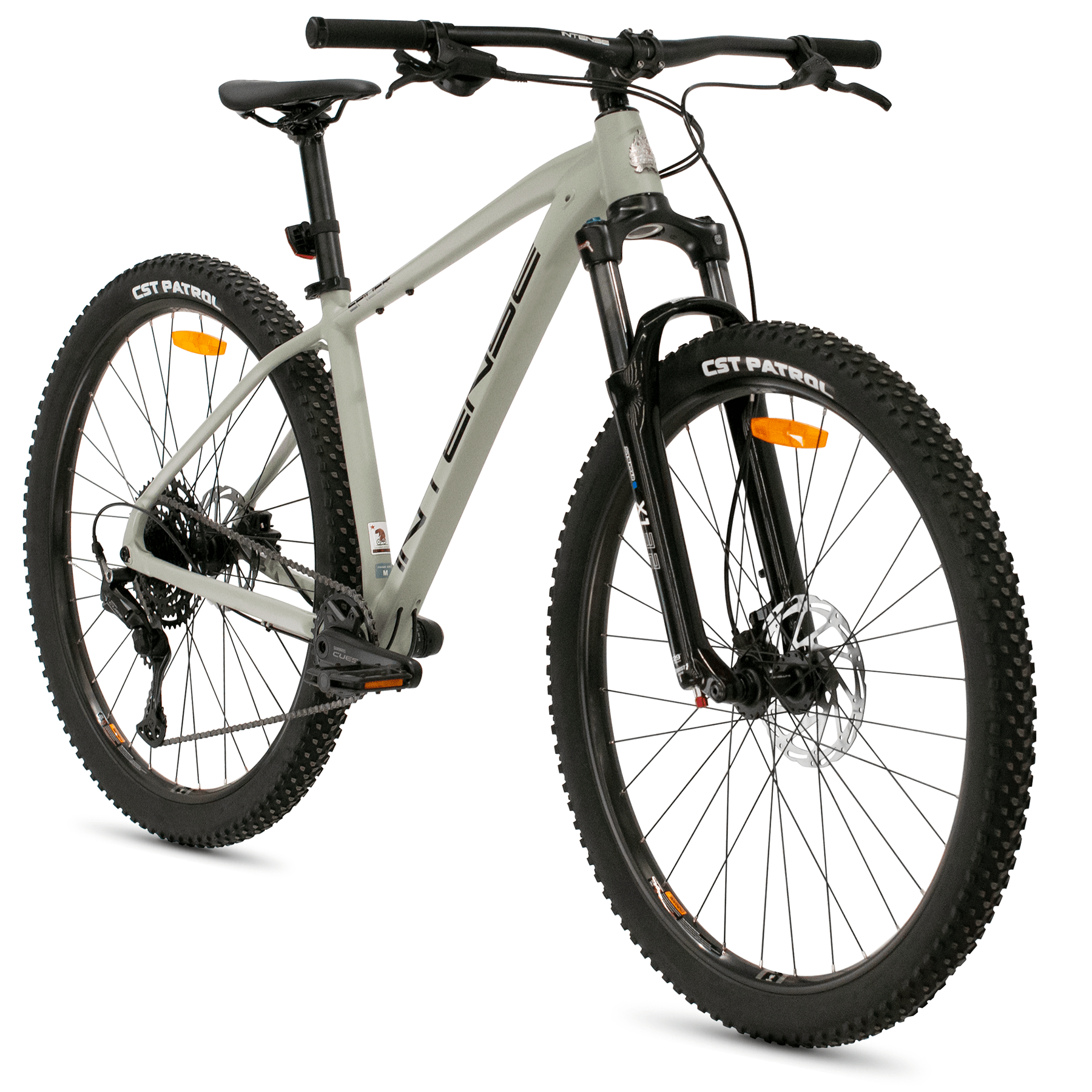

The Spider Sport is an ideal XC entry bike with a rugged 6061 alloy frame and the SR Suntour X1-BOOST AIR fork offering 100mm travel and size options. Shimano’s 10-speed CUES drivetrain with hidden dial and hydraulic disc brakes gives beginners a stable and responsive ride experience.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense XC Race frame, 6061 alloy, TIG-welded, smooth-welded, UDH compatible
FORKSR Suntour SF23 X1-BOOST AIR LOR, 100mm travel, 29" or 27.5" options
HEADSETSealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt
HEADSET SPACERSAlloy headset spacers, 3 × 5mm
BAR / STEM

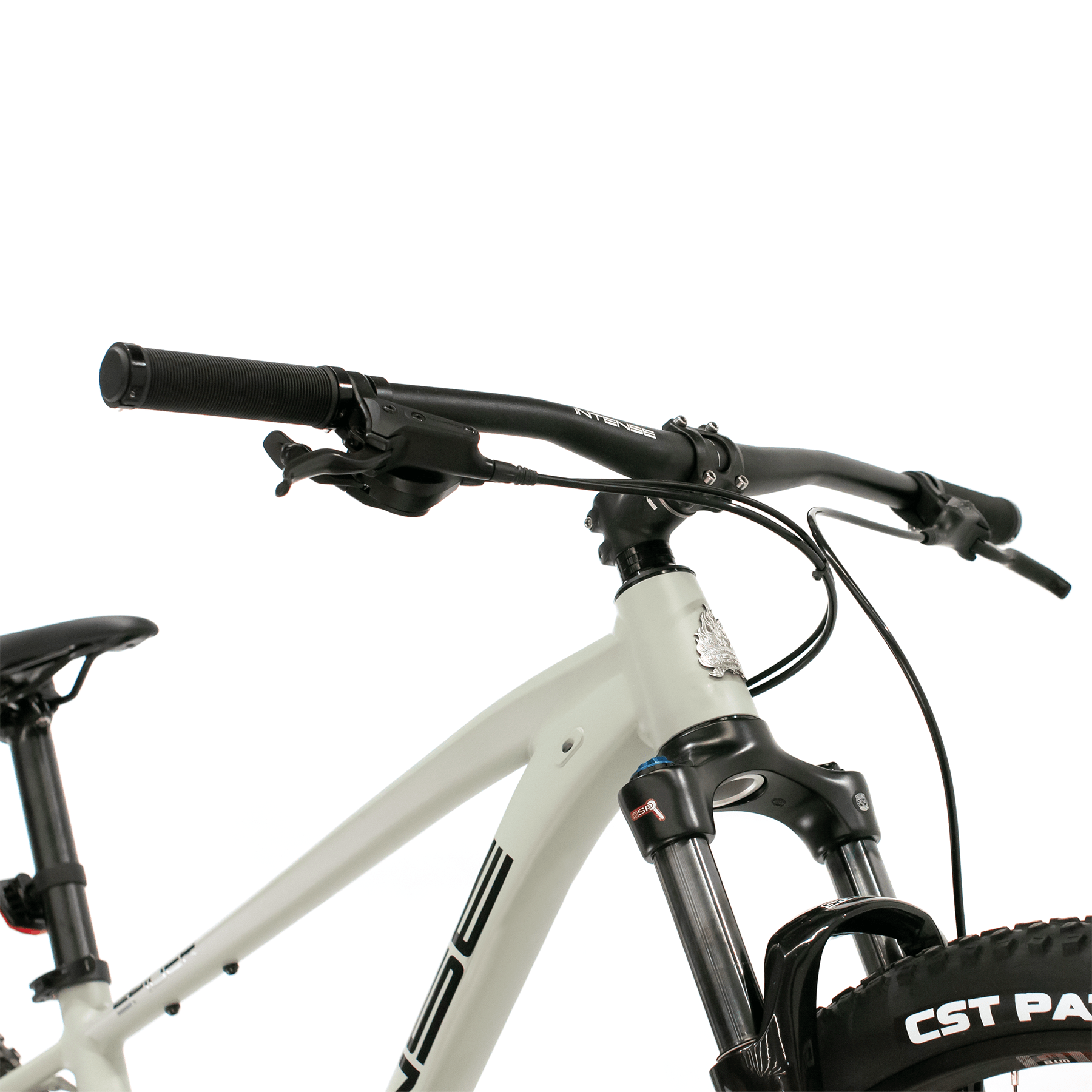

HANDLEBAR6061-T6 aluminum handlebar, 760mm width, 31.8mm bore, 7° back sweep, 20mm rise
STEM6061 forged alloy stem, 60mm extension, 6° angle, 31.8mm bore, 40mm height
GRIPDual-density grips with alloy lock-on and plastic end caps
WHEEL SET
TIRECST Patrol, 27 TPI, 29x2.25 or 27.5x2.25 wire bead
RIMWTB i27 TCS 2.0, anodized black, 29", 32h
FRONT HUBFormula 711, 110mm O.L.D., 15mm axle, 6-bolt disc, 32h
REAR HUBFormula DHT-252X, 148mm O.L.D., 12mm axle, sealed bearing, 6-bolt
SPOKEStainless steel spokes, 14G
SHIFTING DRIVE TRAIN

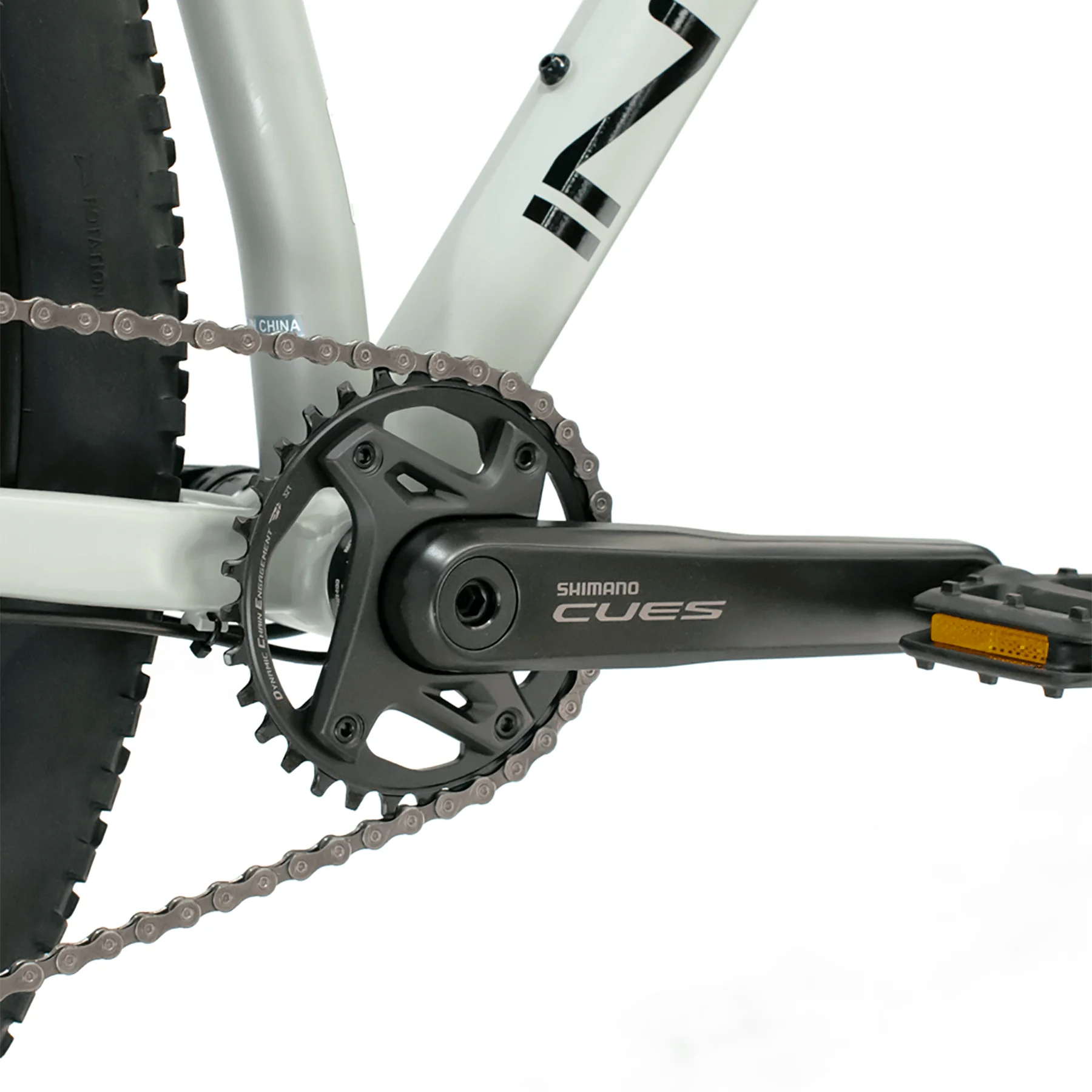

CRANKSETShimano FC-U6000-1 CUES crankset, 32T, 170/175mm
BOTTOM BRACKETShimano BB-UR400, 68mm
REAR SHIFTERShimano SL-U6000-10R, 10-speed, with indicator window

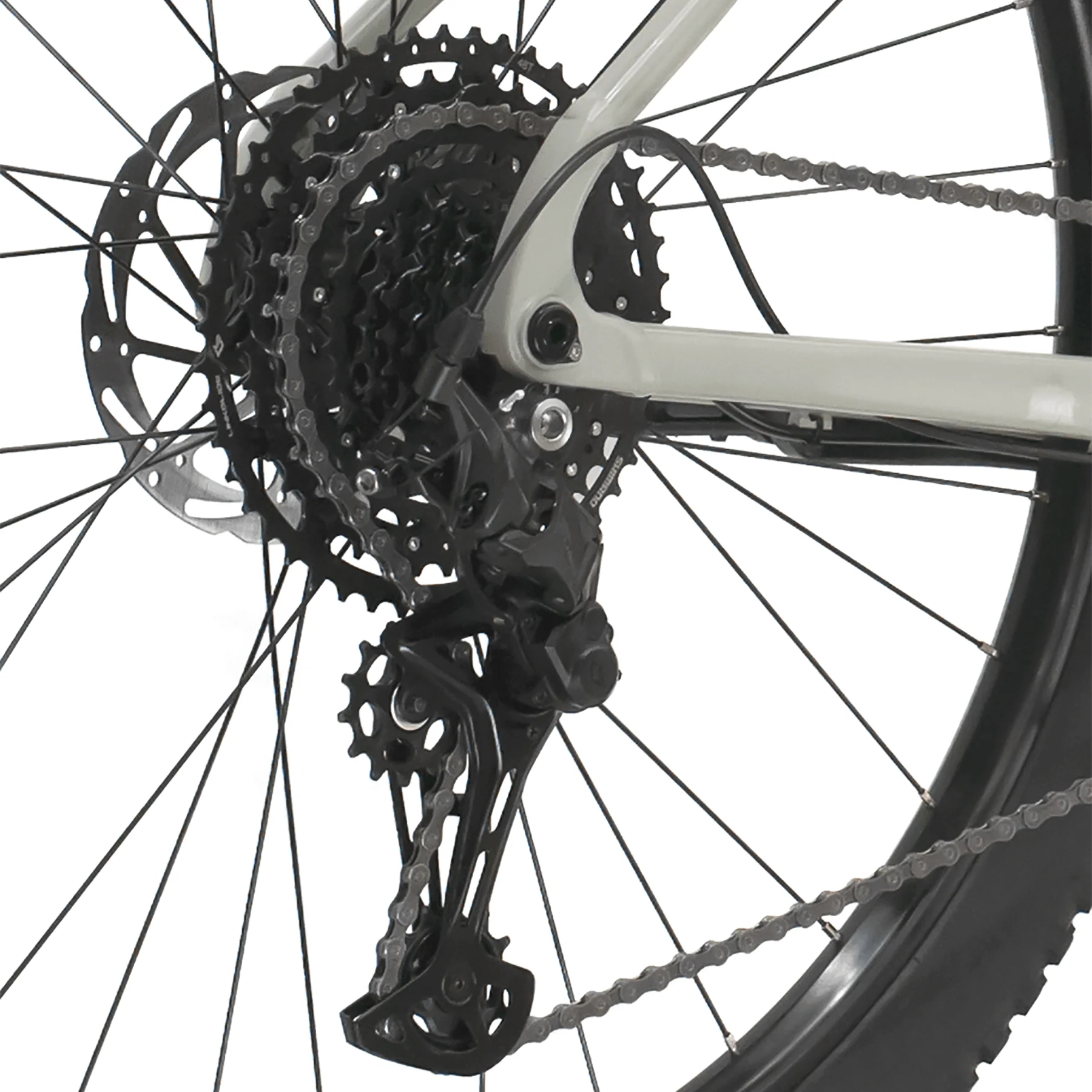

REAR DERAILLEURShimano RD-U6020, CUES, 10-speed, direct mount, hidden dial
CASETTE / FREEWHEELShimano CS-LG400-10, 10-speed, 11–48T
CHAINKMC XGlide chain, silver/silver
BRAKES
FRONT BRAKETektro HD-M275 hydraulic disc brake, 160mm rotor
REAR BRAKETektro HD-M275 hydraulic disc brake, 160mm rotor
SEATING

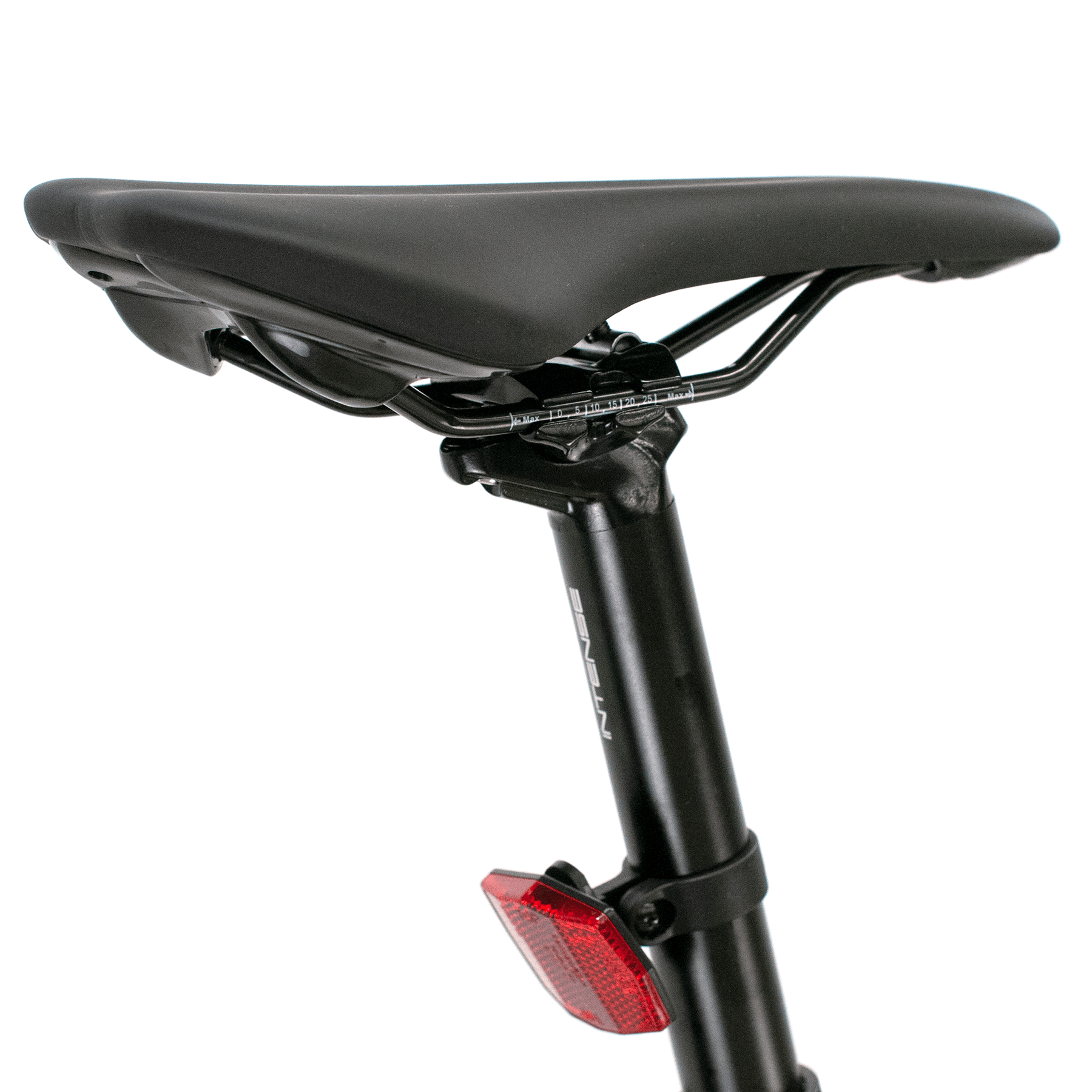

SADDLEDual-density XC saddle with cro-mo rails
SEAT POST6061 alloy seatpost, 31.6mm × 400mm, with 100mm safety line
SEAT CLAMPAnodized black, forged aluminum lever, 36.4mm
PEDALVP-535 nylon pedals
