FRAME SET

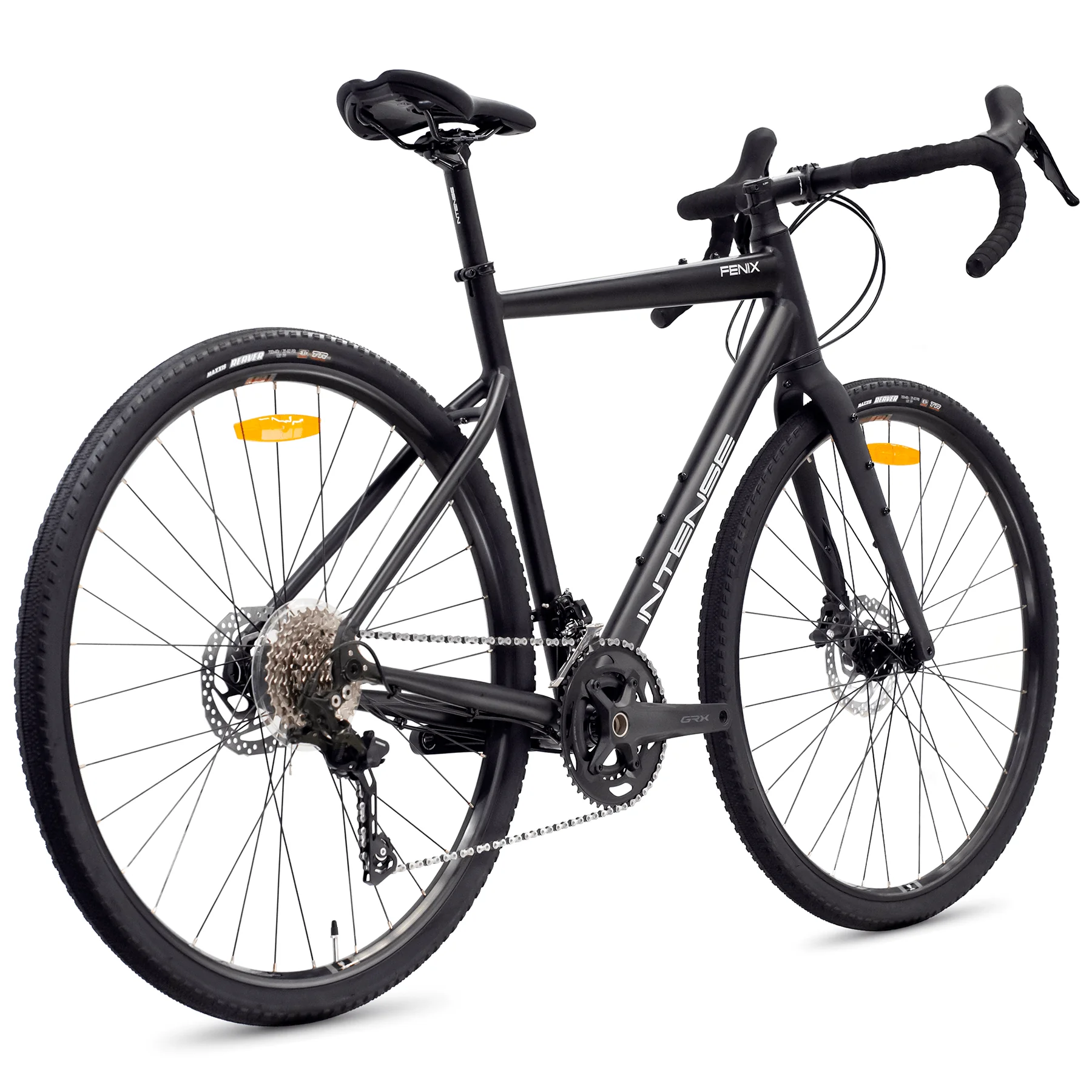

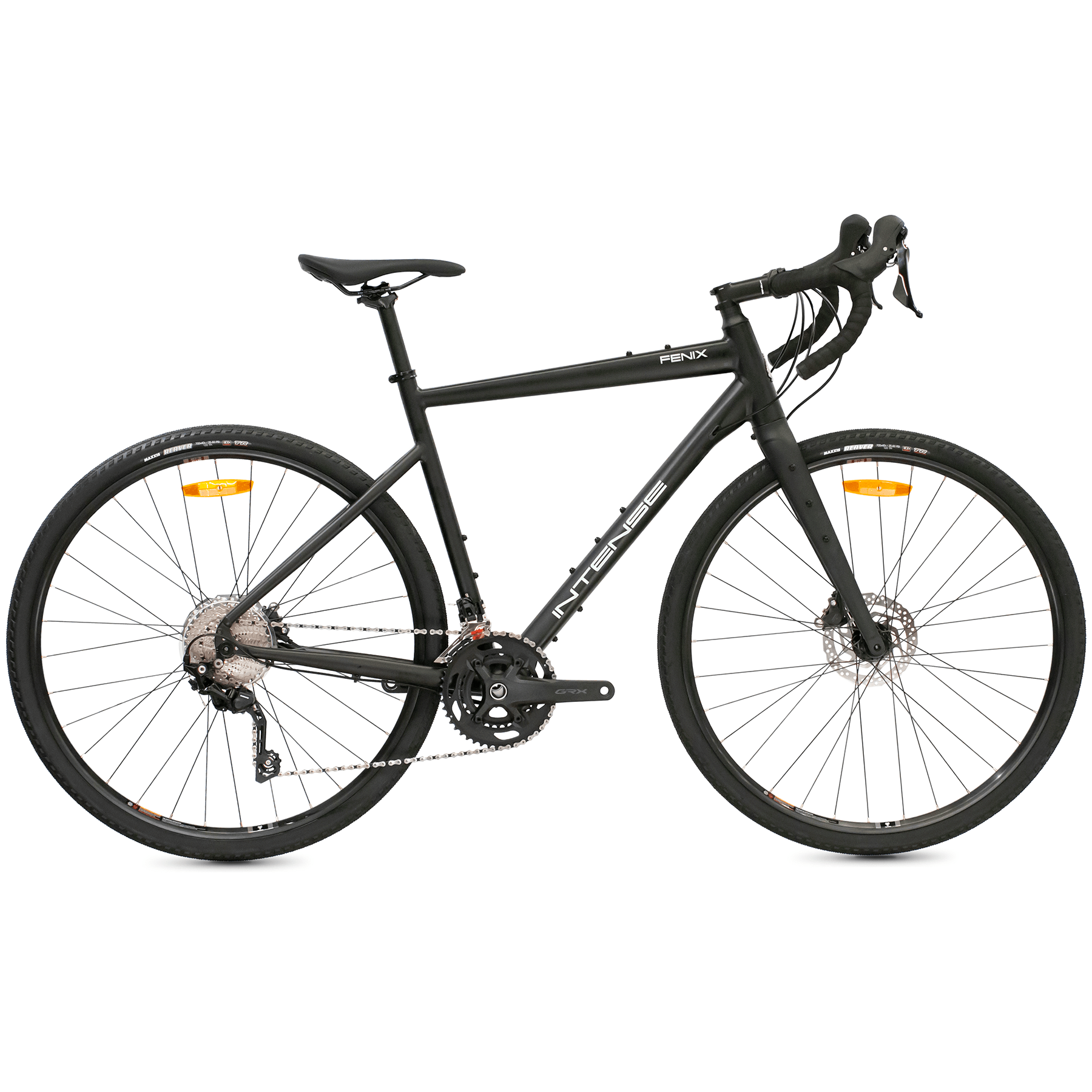

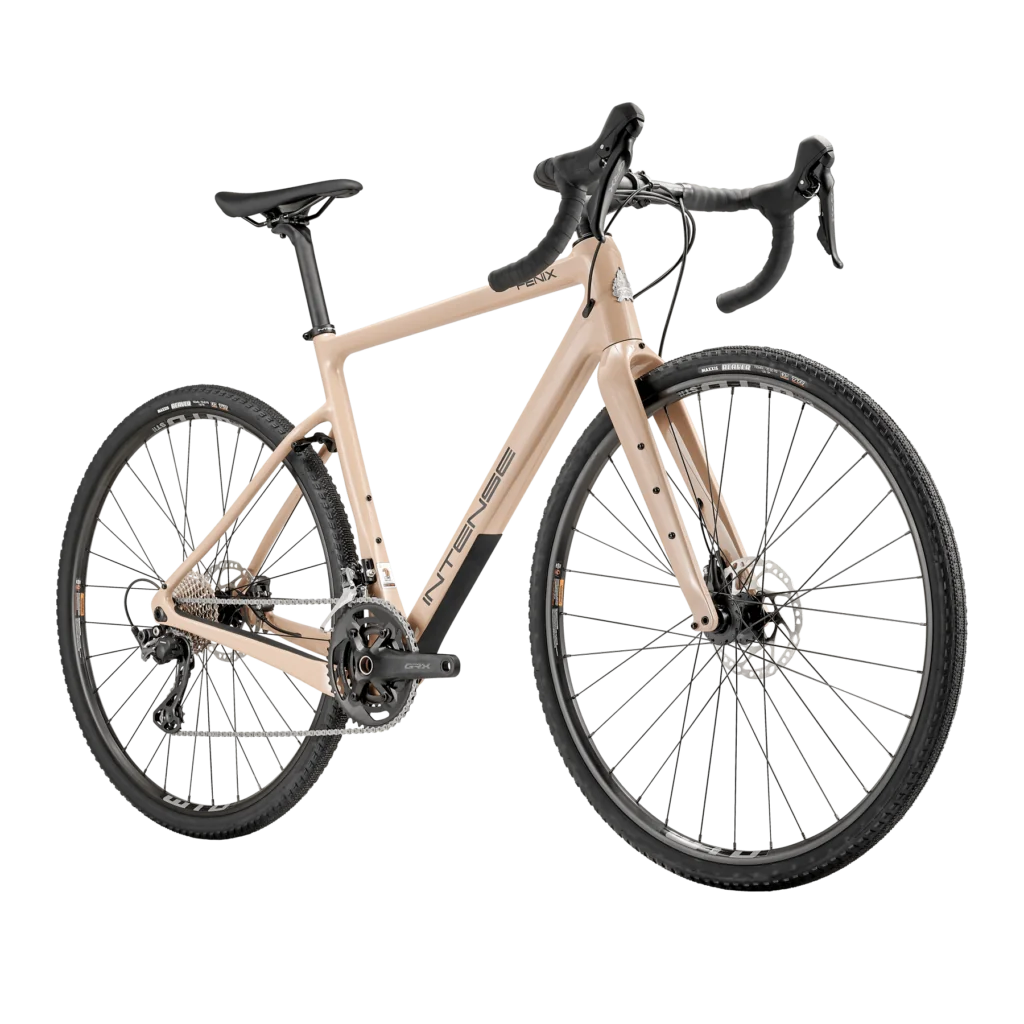

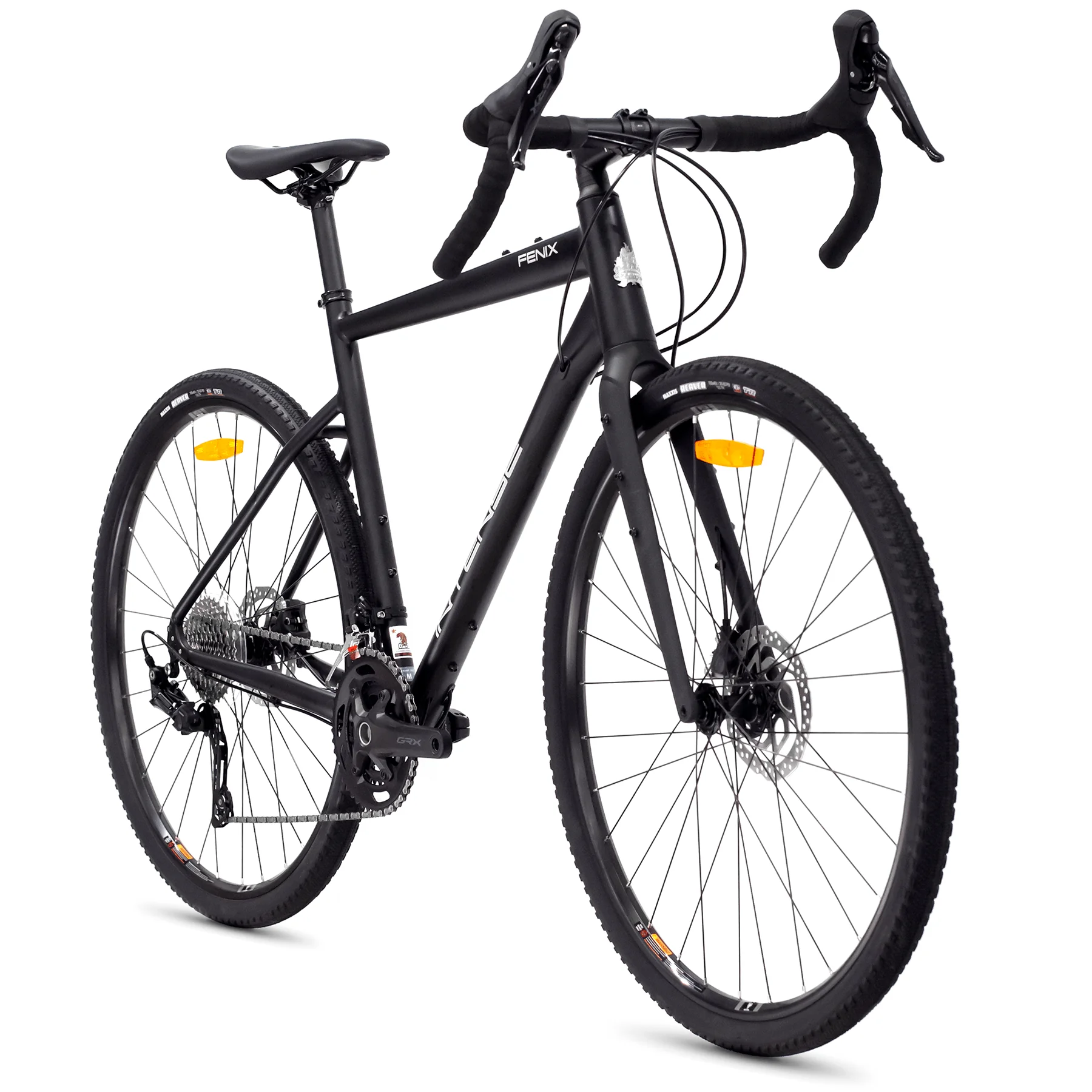

FRAME Intense gravel frame, heat-treated 6061 alloy, TIG-welded, built to SRAM UDH standard
FORK Intense design, carbon gravel fork with alloy steerer, disc brake mount, 100 × 12mm thru-axle
HEADSET Sealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt
HEADSET SPACERS Alloy headset spacers, 3 × 5mm

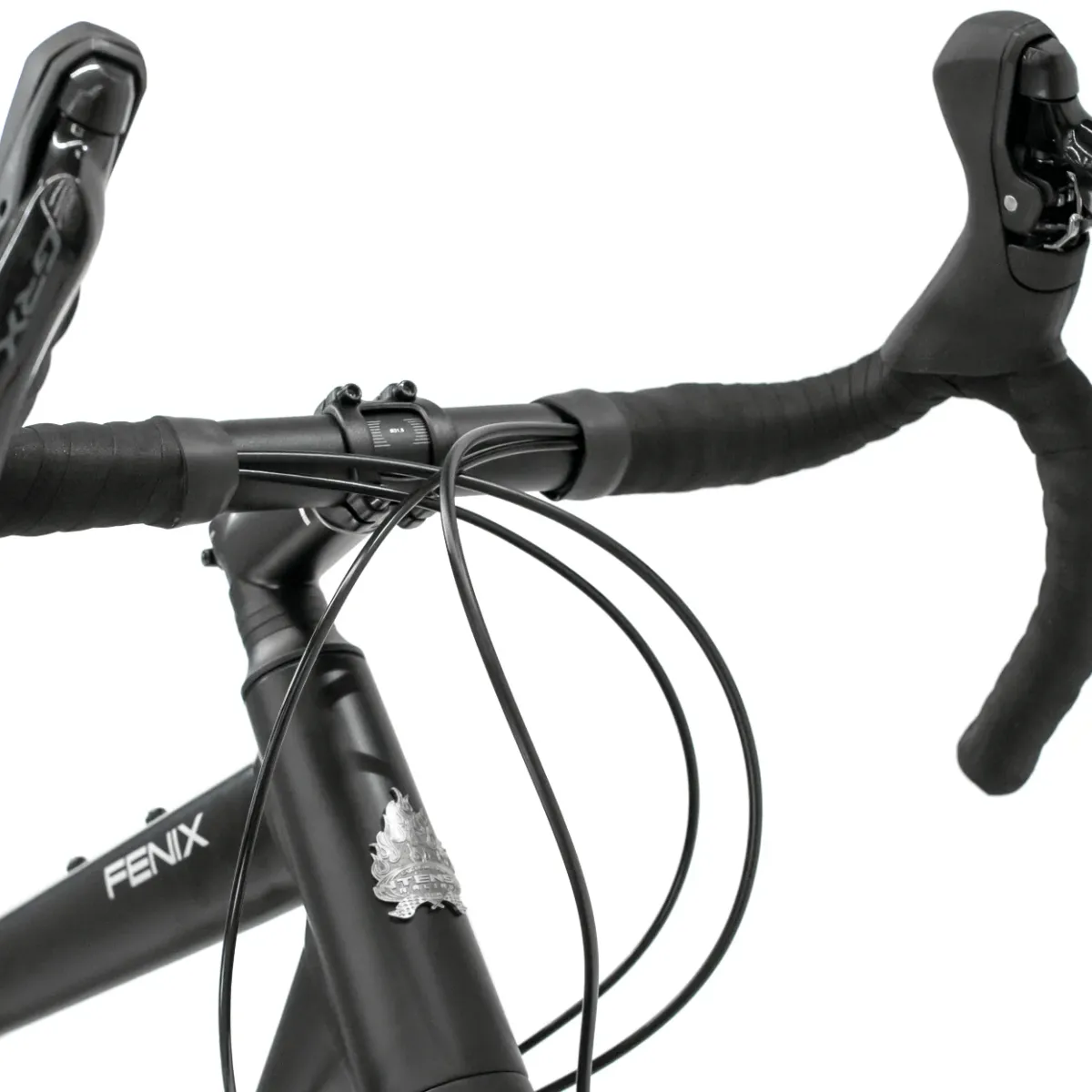

BAR / STEM

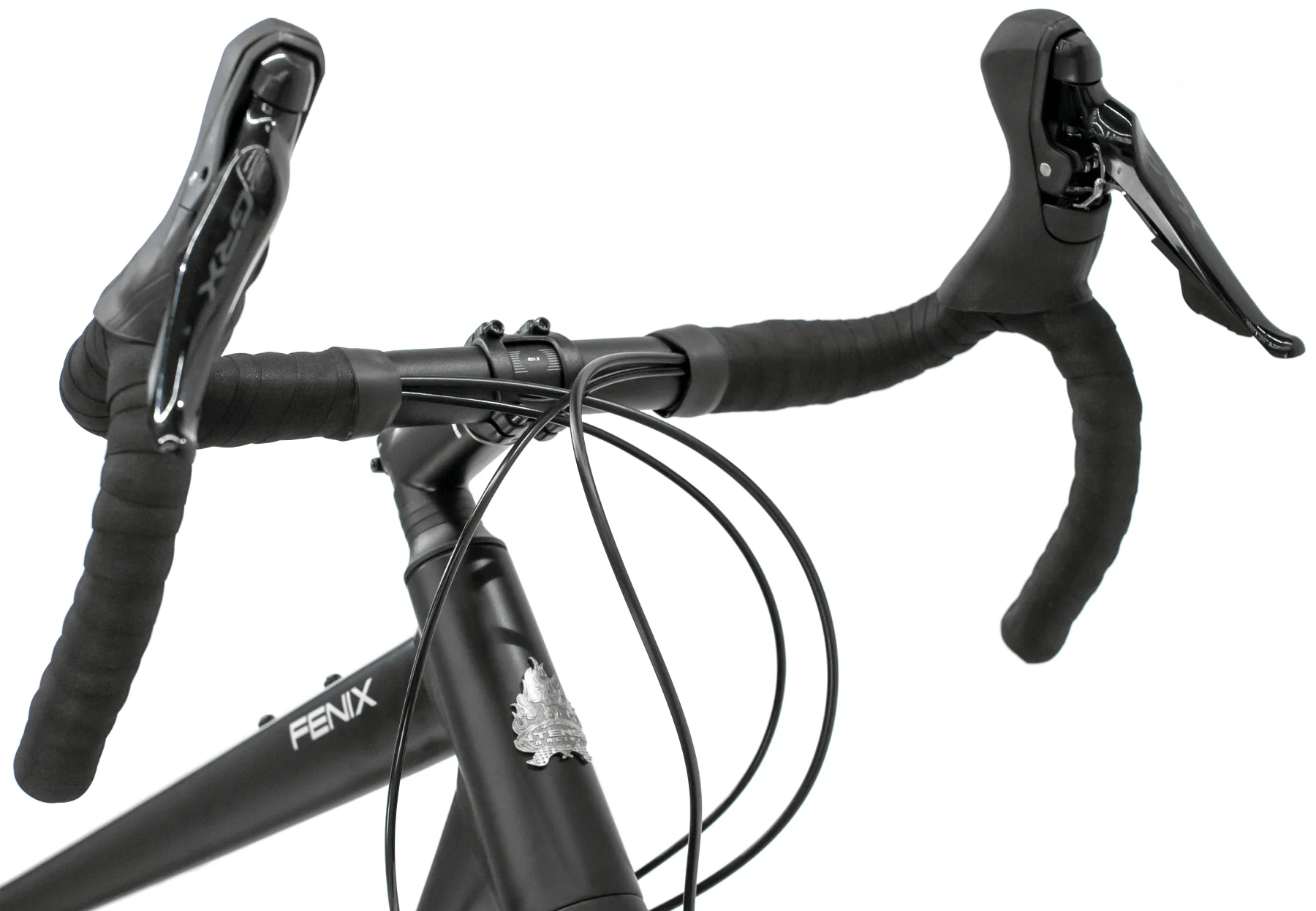

HANDLEBAR 6061 aluminum, 31.8mm bar bore, 125mm drop
HANDLEBAR SIZES S: 400mm, M&L: 420mm, XL: 440mm
STEM 6061 aluminum, forged face plate
STEM DIMENSIONS Extension: S: 70mm, M&L: 90mm, XL: 100mm; angle: 6°; bar bore: 31.8mm; height: 40mm
GRIP Hi Friction bar tape
WHEEL SET
TIRE Maxxis Reaver, 700x40C, 120TPI, folding tubeless
RIM WTB I23 TCS 2.0, anodized black, 700c, 32h
FRONT HUB Formula RX812, 100mm, 6-bolt, J-bend, 32h, thru-axle, without QR, 100 × 12mm
REAR HUB Formula RX142, anodized black, 142mm, 12mm axle, 9/10-speed, 32h, 6-bolt
SPOKE Stainless steel / 14G
SHIFTING DRIVE TRAIN

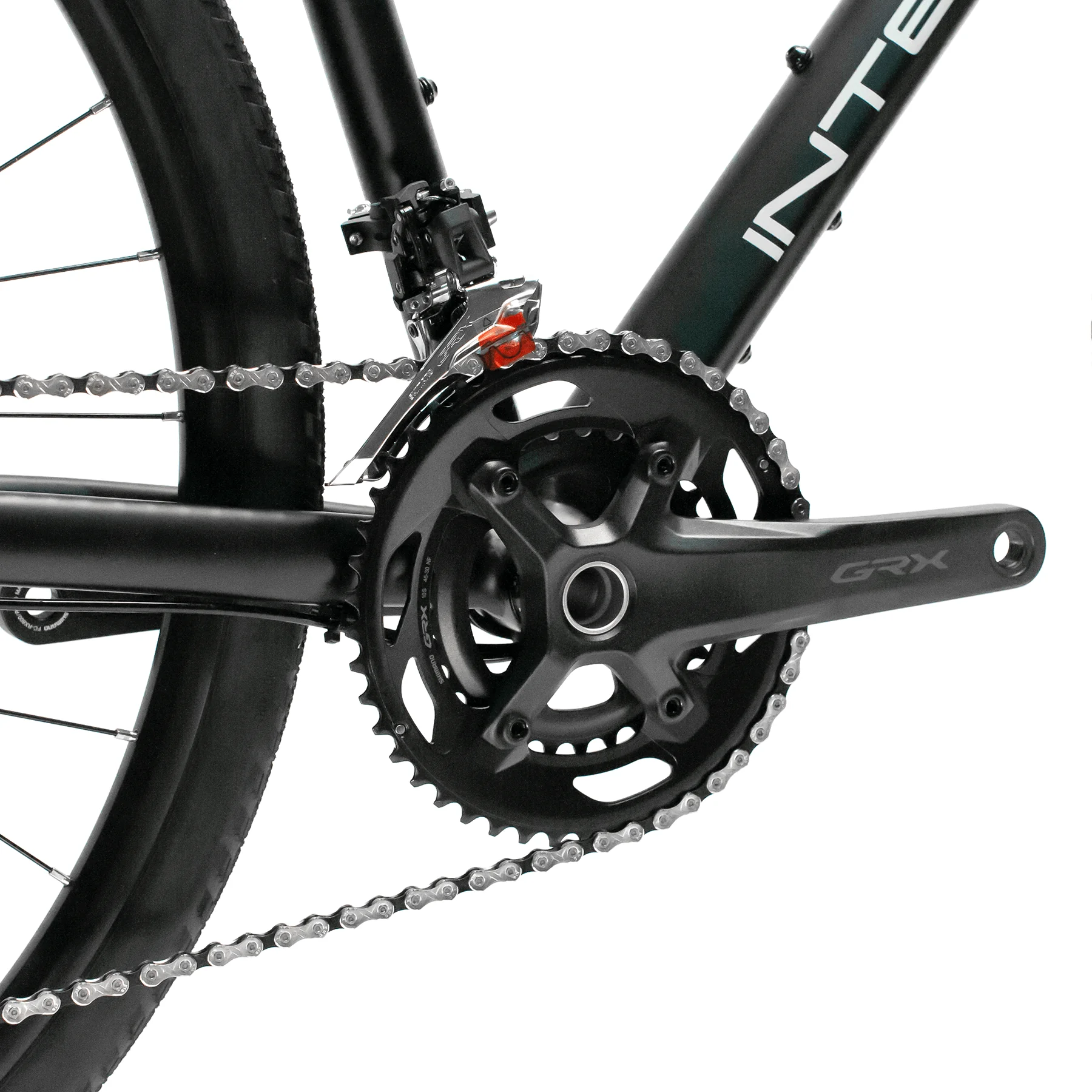

CRANKSET Shimano FC-RX600-10, 46/30T, aluminum crankset
BOTTOM BRACKET Shimano SM-BBR60 bottom bracket, BSA 1.37 x 24T
FRONT SHIFTER Shimano GRX ST-RX600 left shift/brake lever with BR-RX400 hydraulic front brake caliper
REAR SHIFTER Shimano GRX ST-RX600 right shift/brake lever with BR-RX400 hydraulic rear brake caliper
FRONT DERAILLEUR Shimano GRX FD-RX400 front derailleur

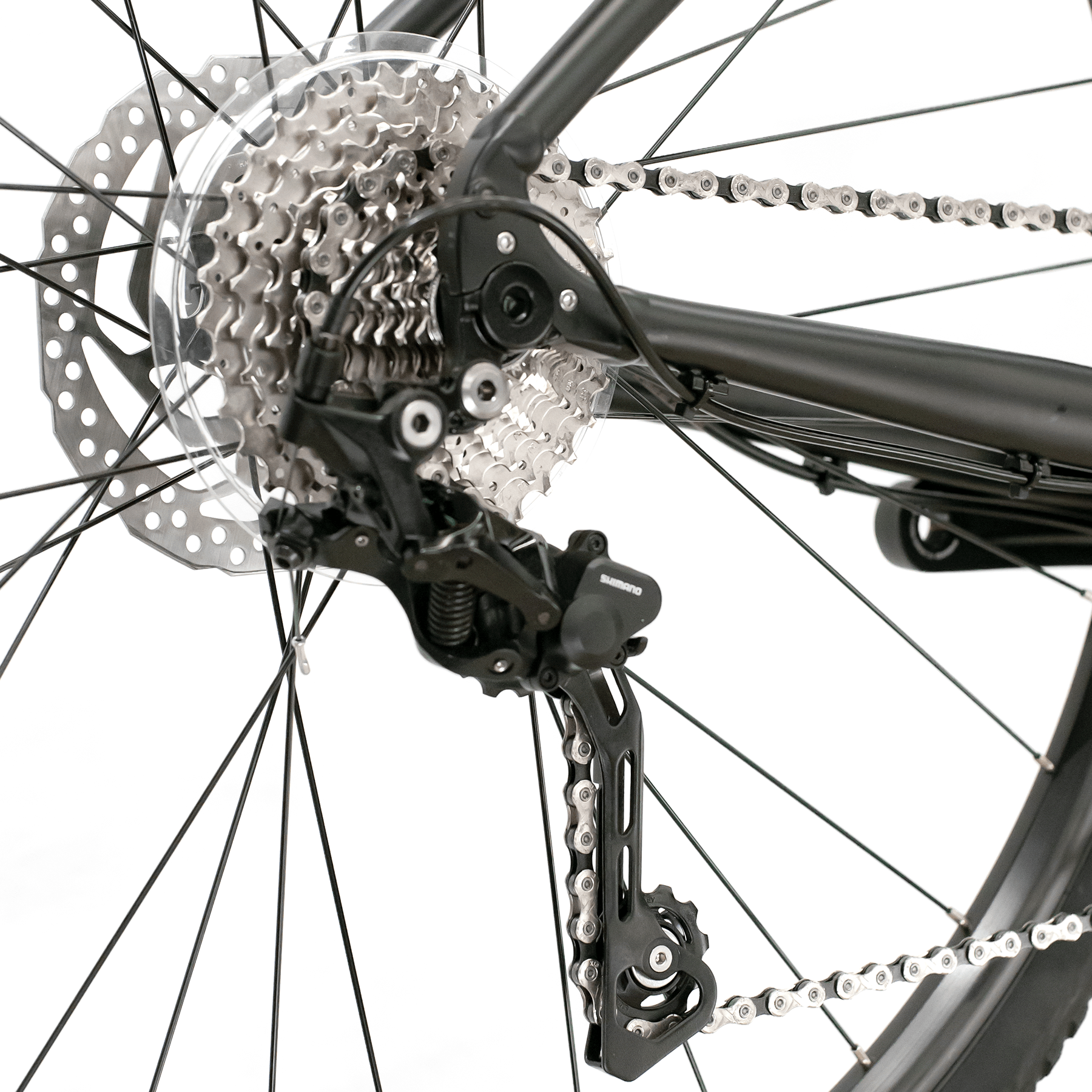

REAR DERAILLEUR Shimano GRX RD-RX400, 10-speed, 34T max
CASETTE / FREEWHEEL Shimano CS-HG500-10 cassette, 10-speed, 11–34T
CHAIN KMC X10-NP-BKS, silver/black, 1/2" x 3/32", 112 links, with CL559R snap connector
BRAKES
FRONT BRAKE Shimano SM-RT26 rotor, 160mm, 6-bolt
REAR BRAKE Shimano SM-RT26 rotor, 160mm, 6-bolt
SEATING

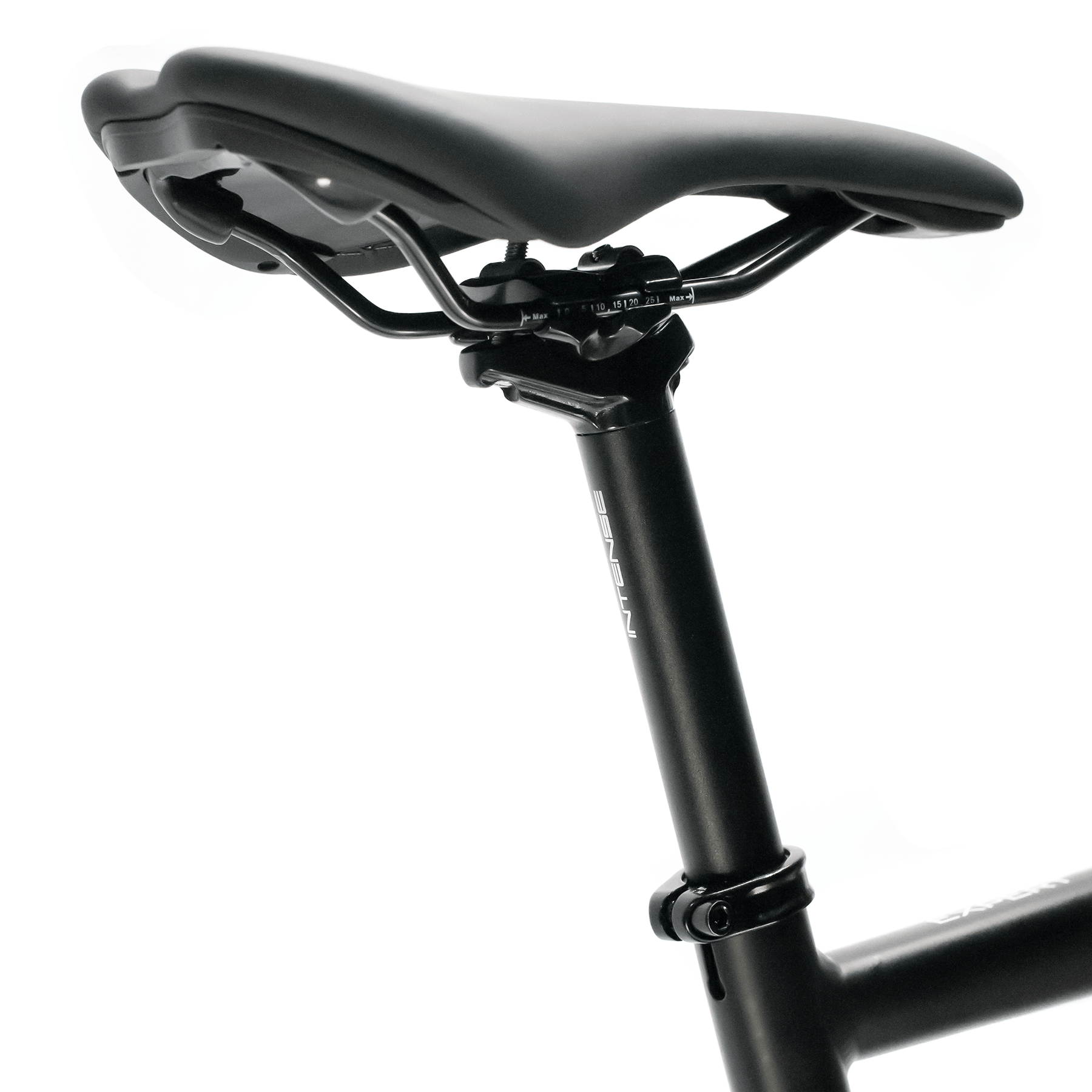

SADDLE Intense Gravel Design, dual density base and cro-mo rail
SEAT POST Intense alloy 27.2mm × 350mm
SEAT CLAMP Anodized black, without lever, φ31.8
