FRAME SET
FRAME Intense trail frame, 6061 heat-treated aluminum, TIG-welded, SRAM UDH, Boost spacing (12x148 / 15x110)
FORK RockShox FS 35G RL fork, 29”, 130mm travel
HEADSET Sealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt
HEADSET SPACERS Alloy headset spacers, 3 × 5mm
BAR / STEM

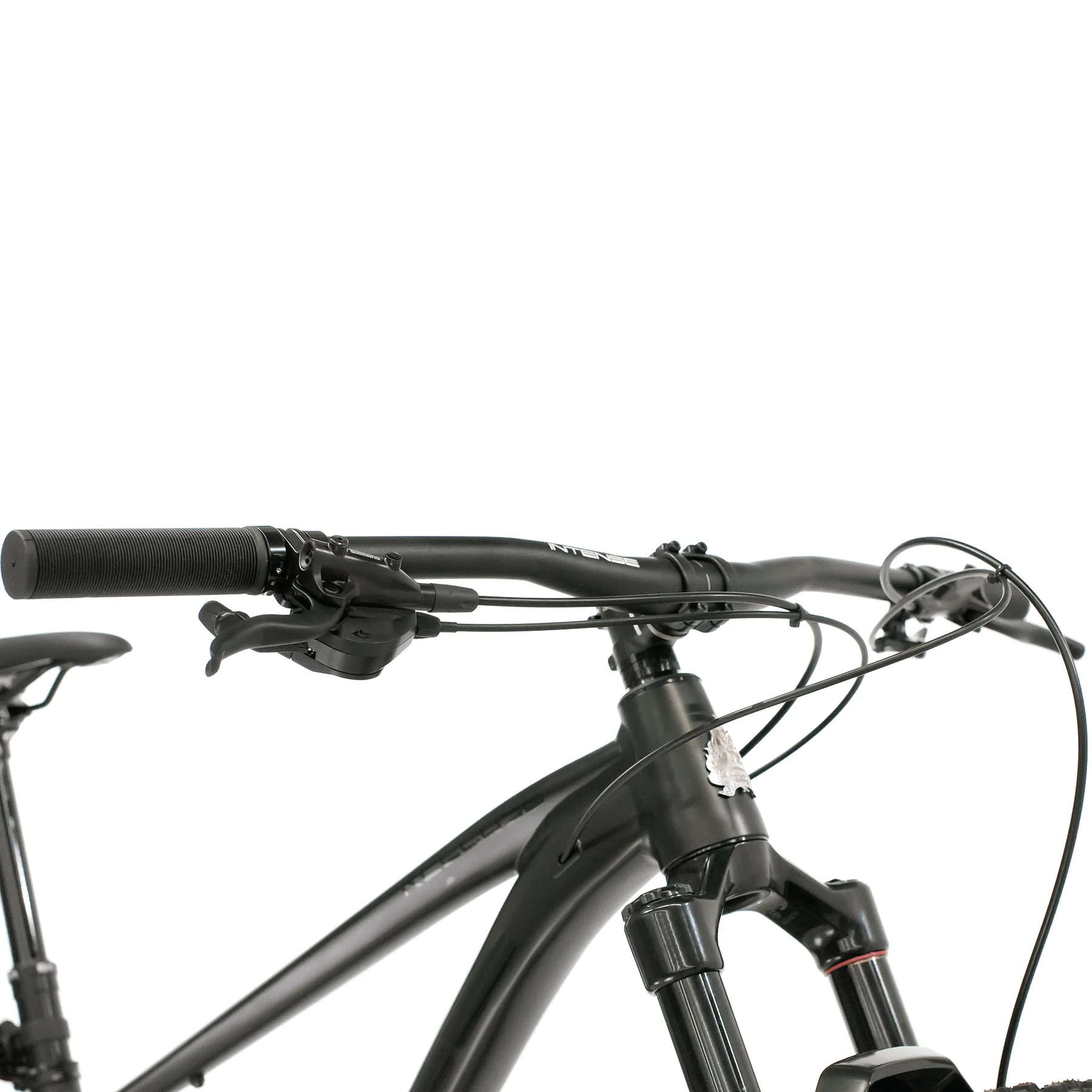

HANDLEBAR 6061-T6 aluminum, 780mm width, 7° back sweep, 20mm rise, 31.8mm clamp
STEM 6061 aluminum stem, 45mm extension, 0° angle, 31.8mm clamp, 40mm height
GRIP Intense design, dual-density grip with alloy lock-on and plastic end cap
WHEEL SET
TIRE Kenda Booster, 29x2.4”, SCT
RIM WTB i30 TCS 2.0, 29”, 32h
FRONT HUB Formula DC-711 hub, 15mm axle
REAR HUB Formula DHT 148 hub, 12mm axle, 148mm O.L.D., 6-bolt
SPOKE Stainless steel / 14G
SHIFTING DRIVE TRAIN

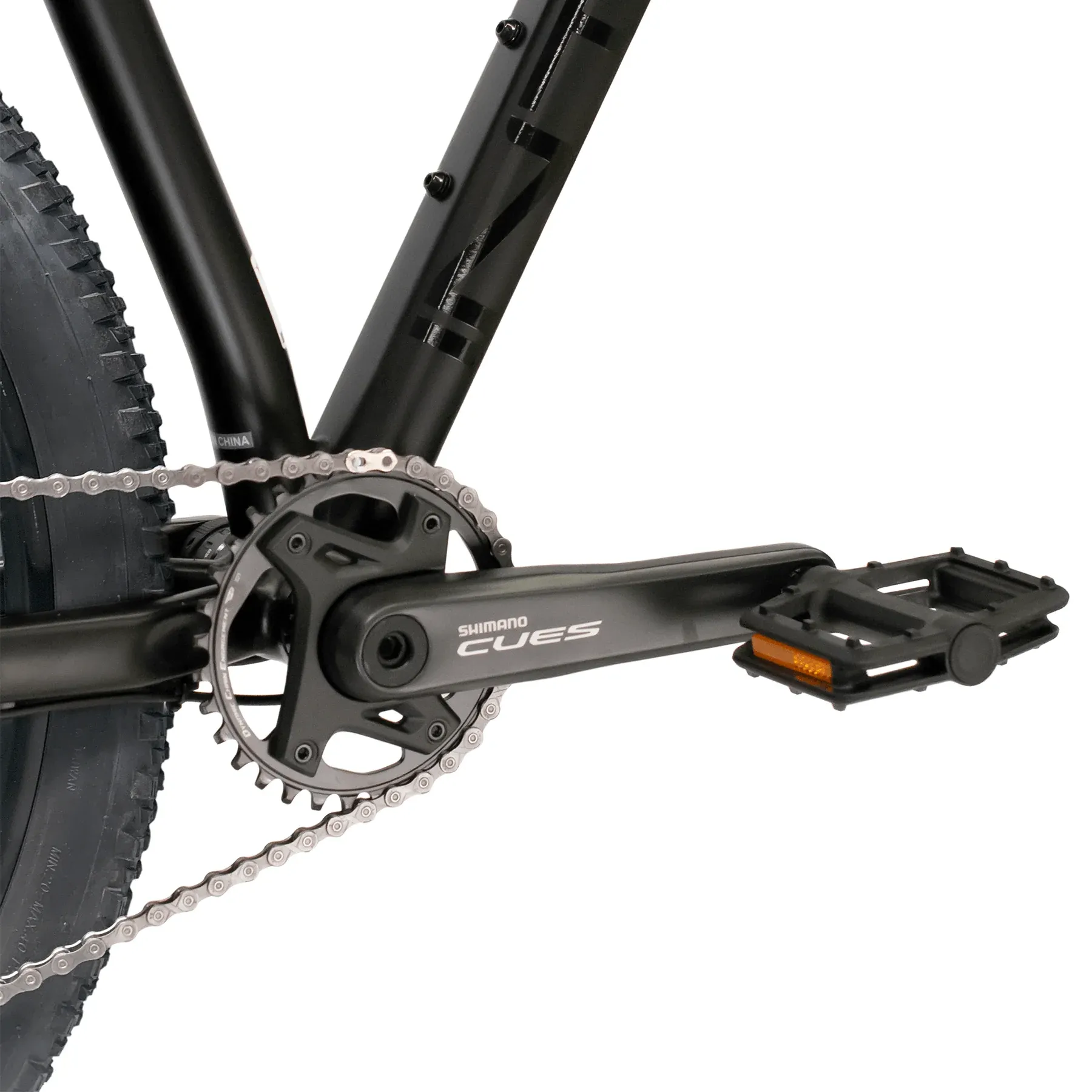

CRANKSET Shimano FC-U6000 crankset, 170mm, 32T
BOTTOM BRACKET Shimano BB-UR400 bottom bracket, 68mm
REAR SHIFTER Shimano SL-U6000-11R, CUES, 11-speed Rapidfire shifter
FRONT DERAILLEUR N/A

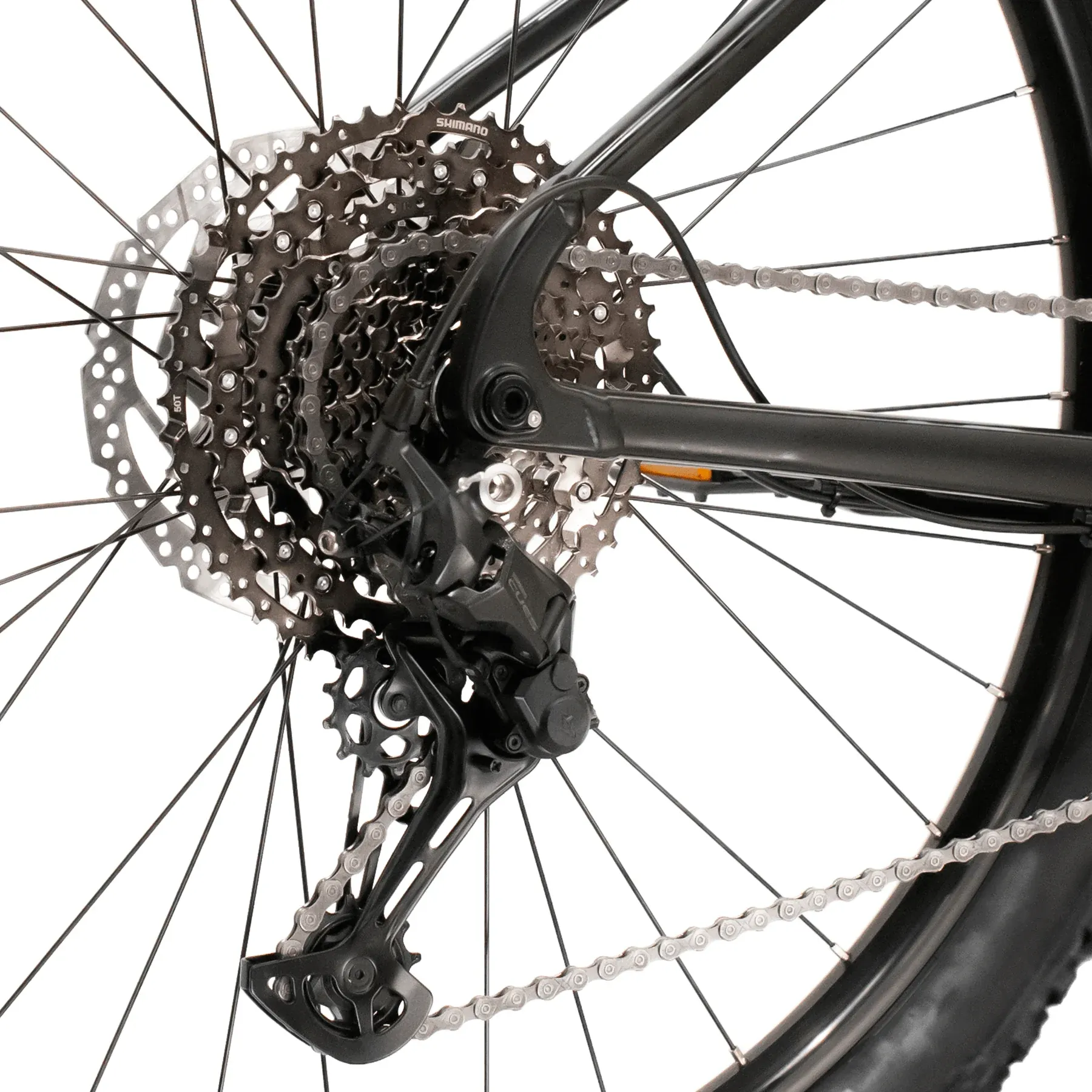

REAR DERAILLEUR Shimano RD-U6000 CUES GS rear derailleur, 10/11-speed
CASETTE / FREEWHEEL Shimano CS-LG400-11 cassette, 11-speed, 11–50T
CHAIN KMC XGlide chain, silver/silver
BRAKES
FRONT BRAKE Shimano MT401/MT420 hydraulic front disc brake, 180mm rotor
REAR BRAKE Shimano MT401/MT410 hydraulic rear disc brake, 180mm rotor
SEATING
SADDLE Intense trail saddle, dual density base, cro-mo rail

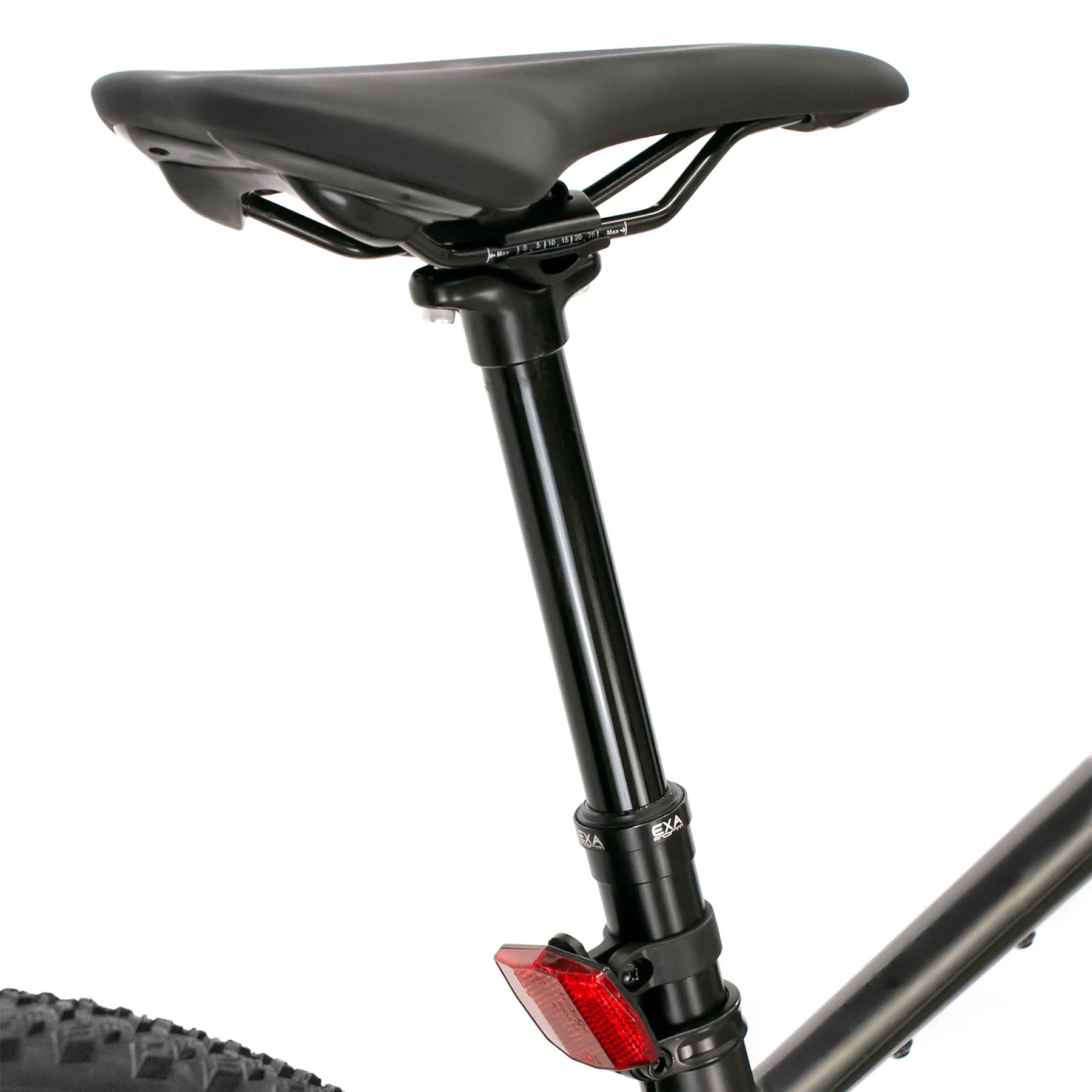

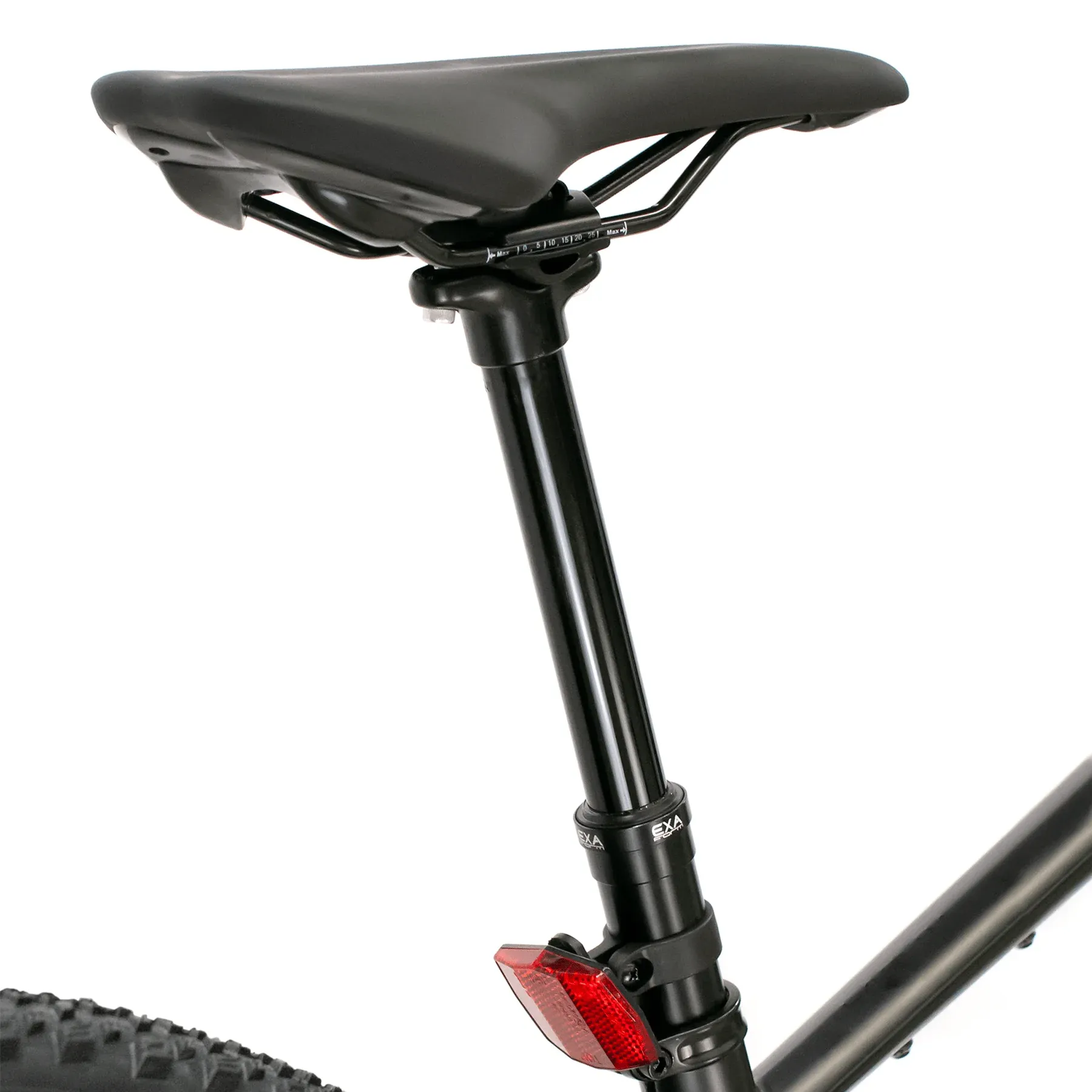

SEAT POST KS KSP900-i dropper post, 31.6mm, 150mm travel, Westy alloy lever
SEAT CLAMP Anodized black, without lever, φ35mm
PEDAL VP-535 nylon platform pedals
