TRAILView Specs

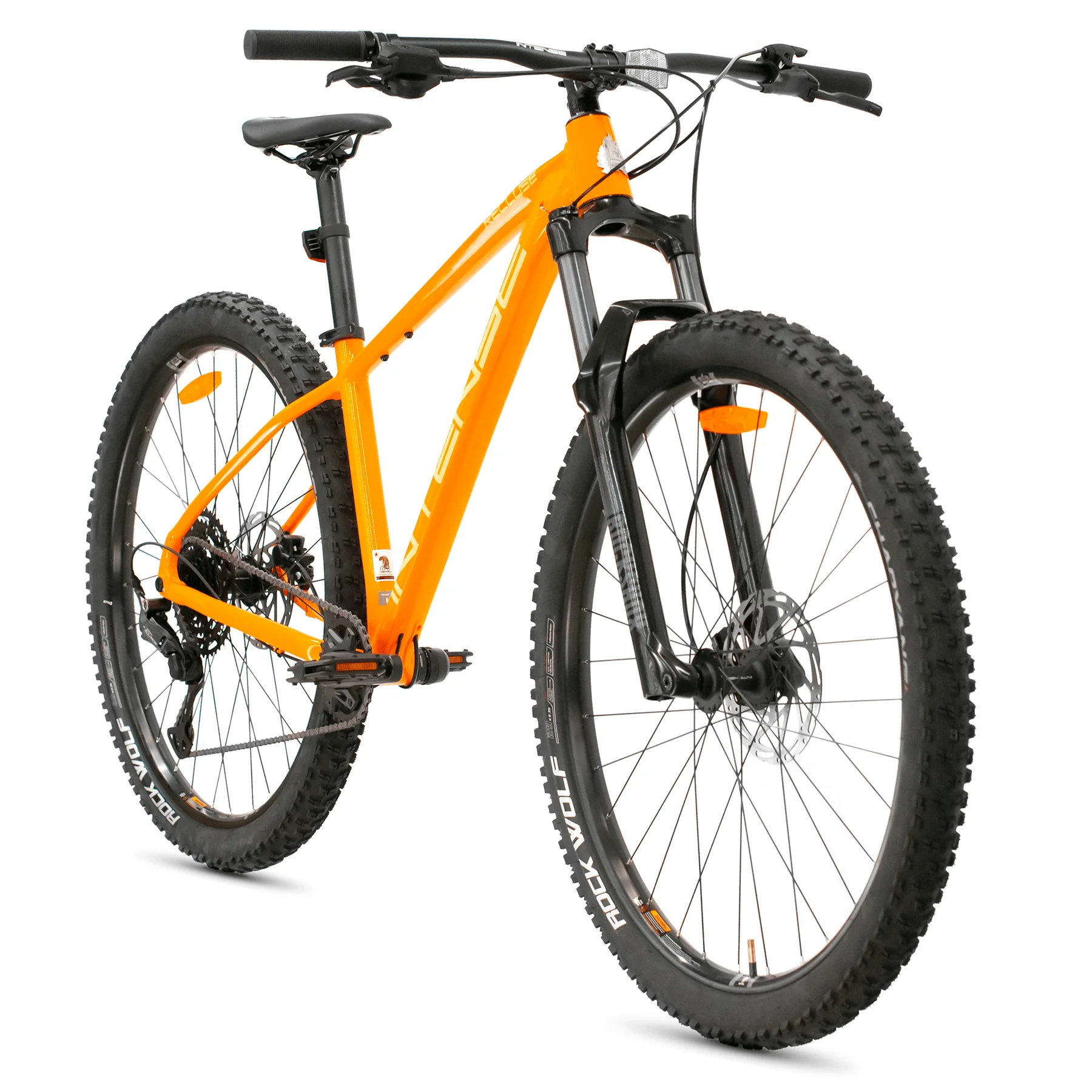

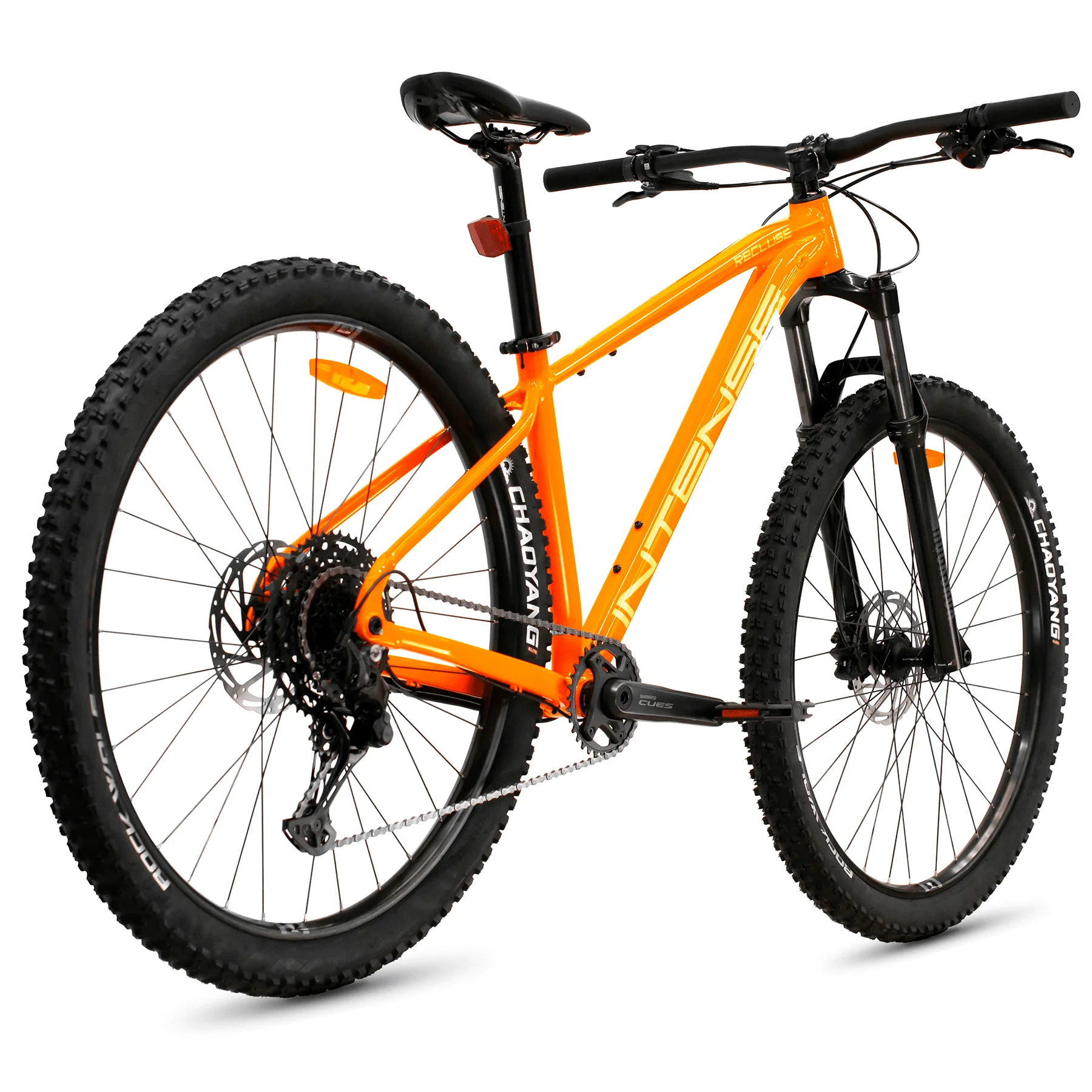

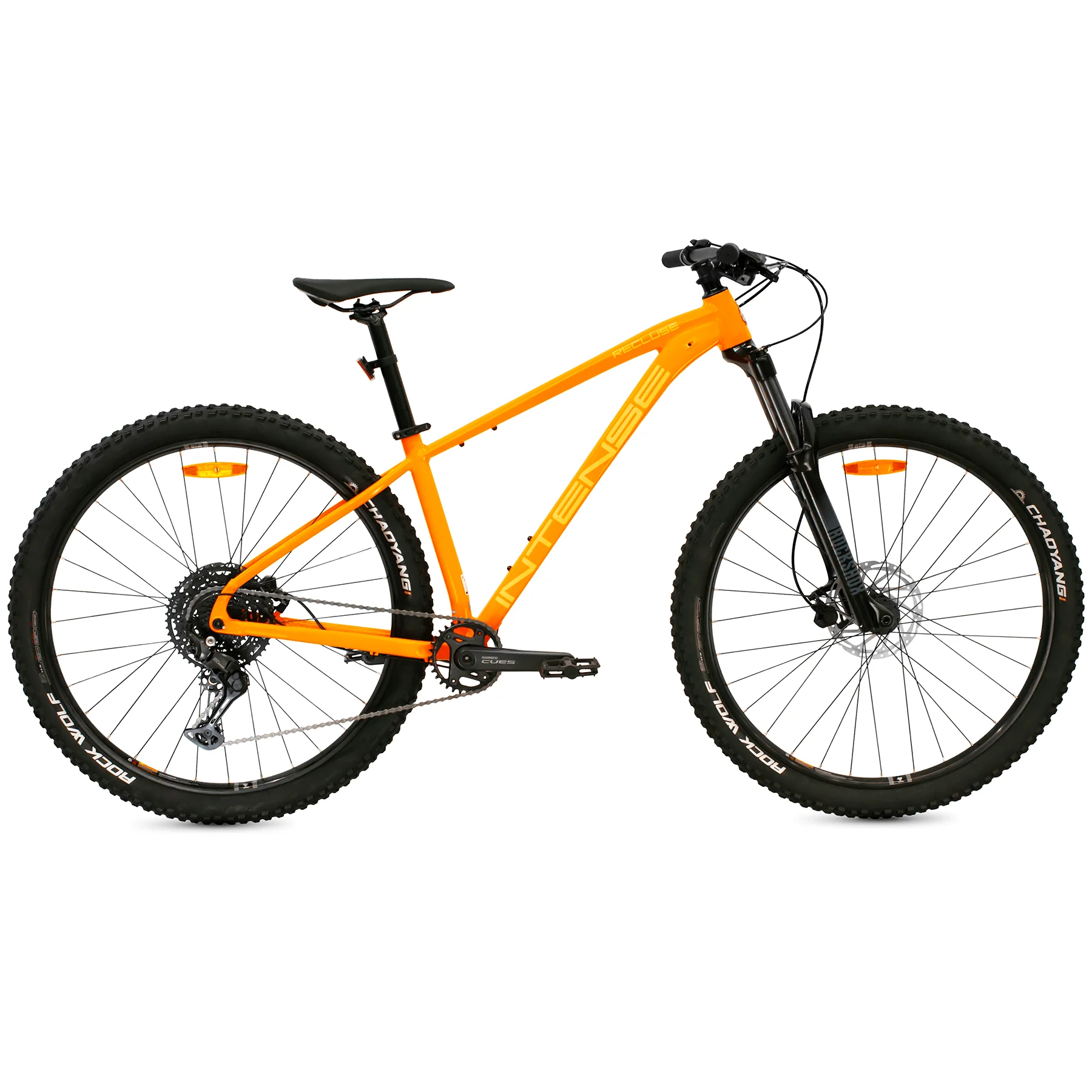

RECLUSE SPORT HT
The Recluse Sport HT offers a dynamic trail experience with the responsiveness of a hardtail frame. Featuring a modern Shimano CUES 10-speed drivetrain and hydraulic disc brakes, it balances climbing agility and downhill control. Updated cockpit and wheelset components deliver comfort and confidence for cross-country adventurers.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense trail frame, 6061 heat-treated alloy, TIG-welded, with 12x148 rear and 15x110 front spacing, SRAM UDH standard
FORKRock Shox RCNS TK R 29 SB CL 130, black, 130mm travel, 15x110mm axle, barrel shaft
HEADSETSealed bearing aluminum Aheadset with aluminum top cap and 6mm cro-mo bolt
HEADSET SPACERSAlloy headset spacers, 3 × 5mm
BAR / STEM

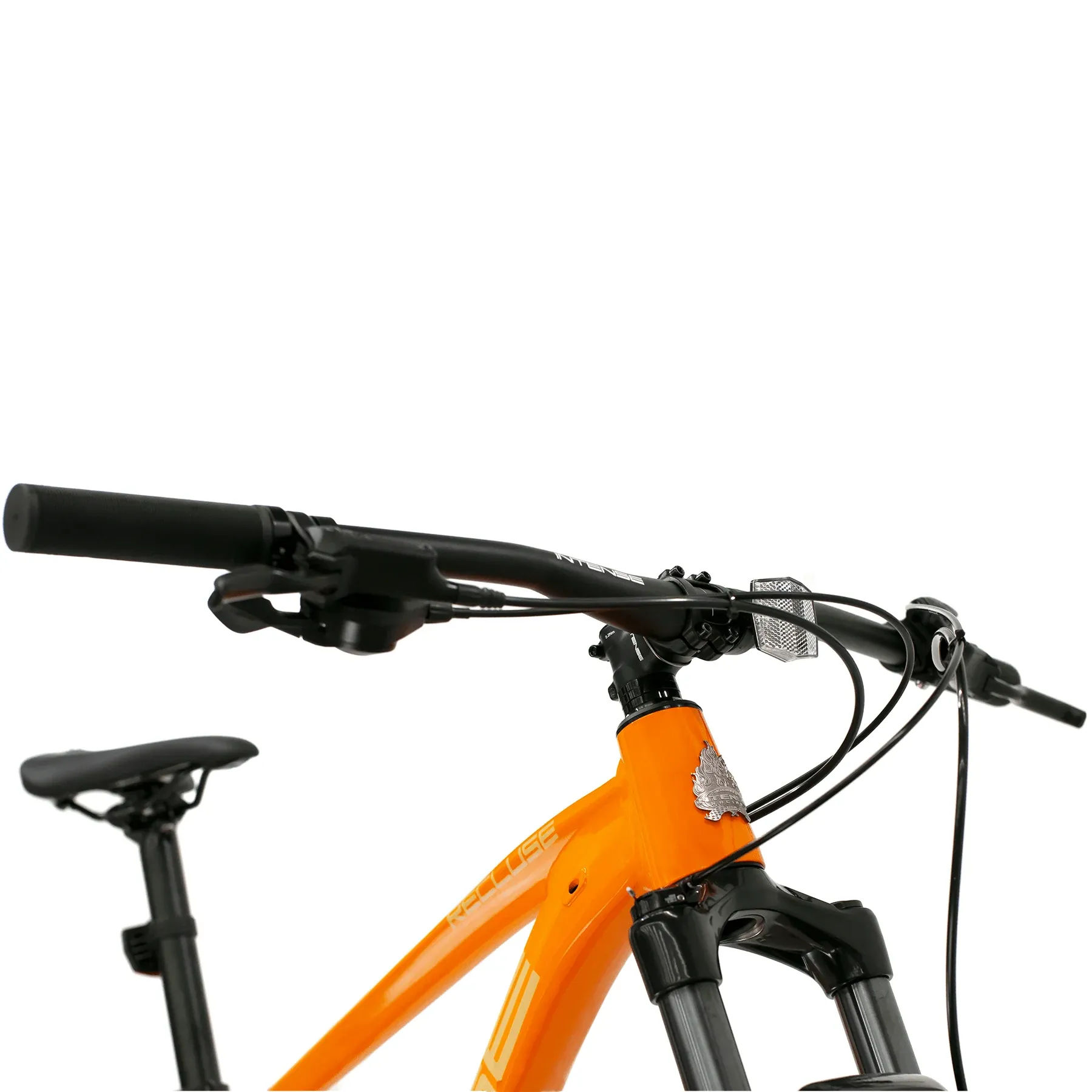

HANDLEBAR6061-T6 aluminum, 780mm width, 31.8mm bore, 20mm rise, 7° back sweep
STEM3D forged 6061 alloy, anodized black, 45mm extension, 0° angle, 31.8mm bar bore, 40mm height
GRIPIntense Design, dual density grips with alloy lock-on and plastic end caps
WHEEL SET
TIREChaoyang Rock Wolf, 29 × 2.4, SPS/TR folding
RIMWTB I30 TCS 2.0, anodized black, 29", 32h
FRONT HUBFormula DC-711, anodized black, 15mm axle, 110mm O.L.D., 32h, 6-bolt rotor
REAR HUBFormula DHT 148, anodized black, 12mm axle, 148mm O.L.D., 32h, 6-bolt
SPOKEStainless steel / 14G
SHIFTING DRIVE TRAIN

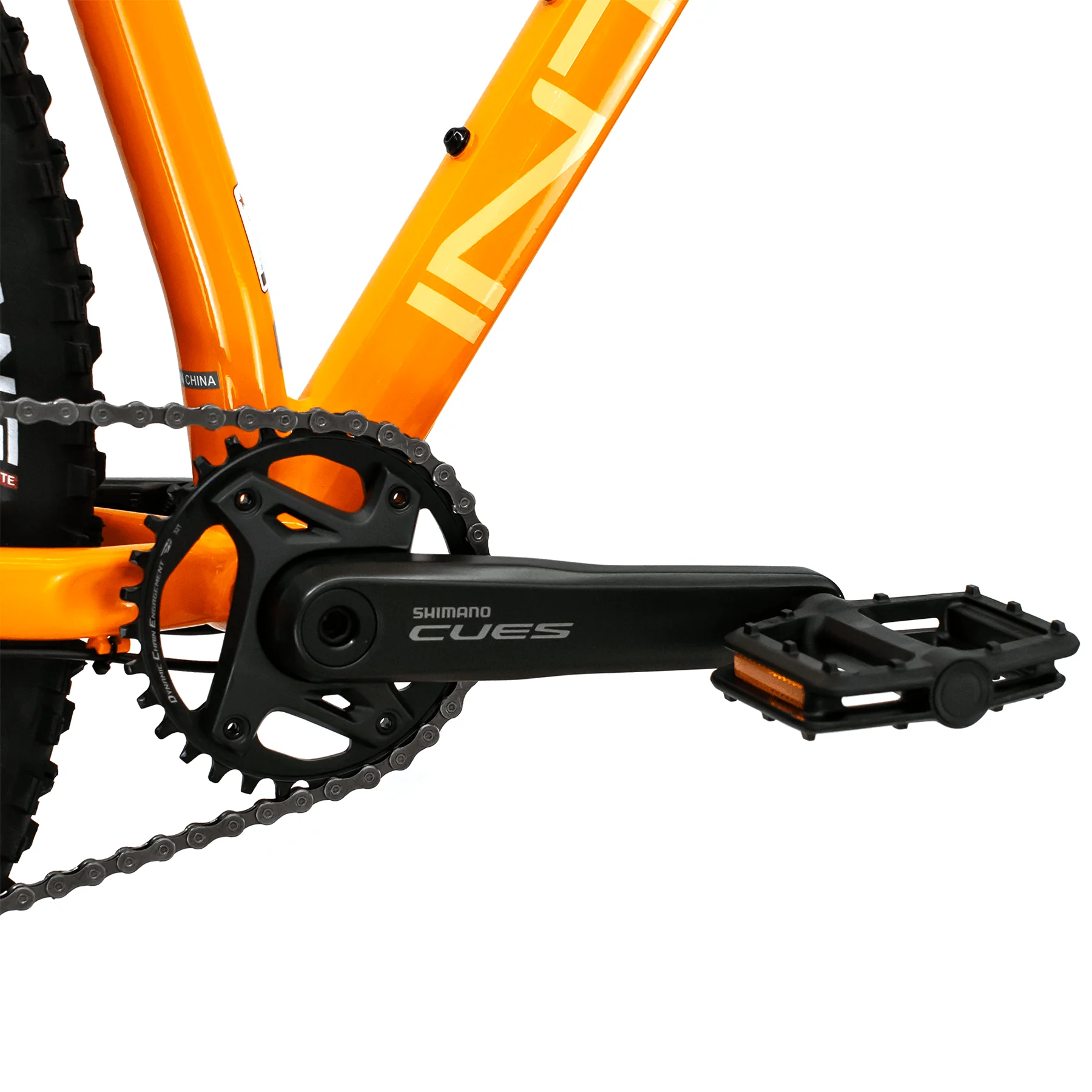

CRANKSETShimano FC-U6000-1 crankset, 32T, 170mm
BOTTOM BRACKETShimano BB-UR400, sealed, 68mm
REAR SHIFTERShimano SL-U6000-10R shifter, 10-speed, with window display

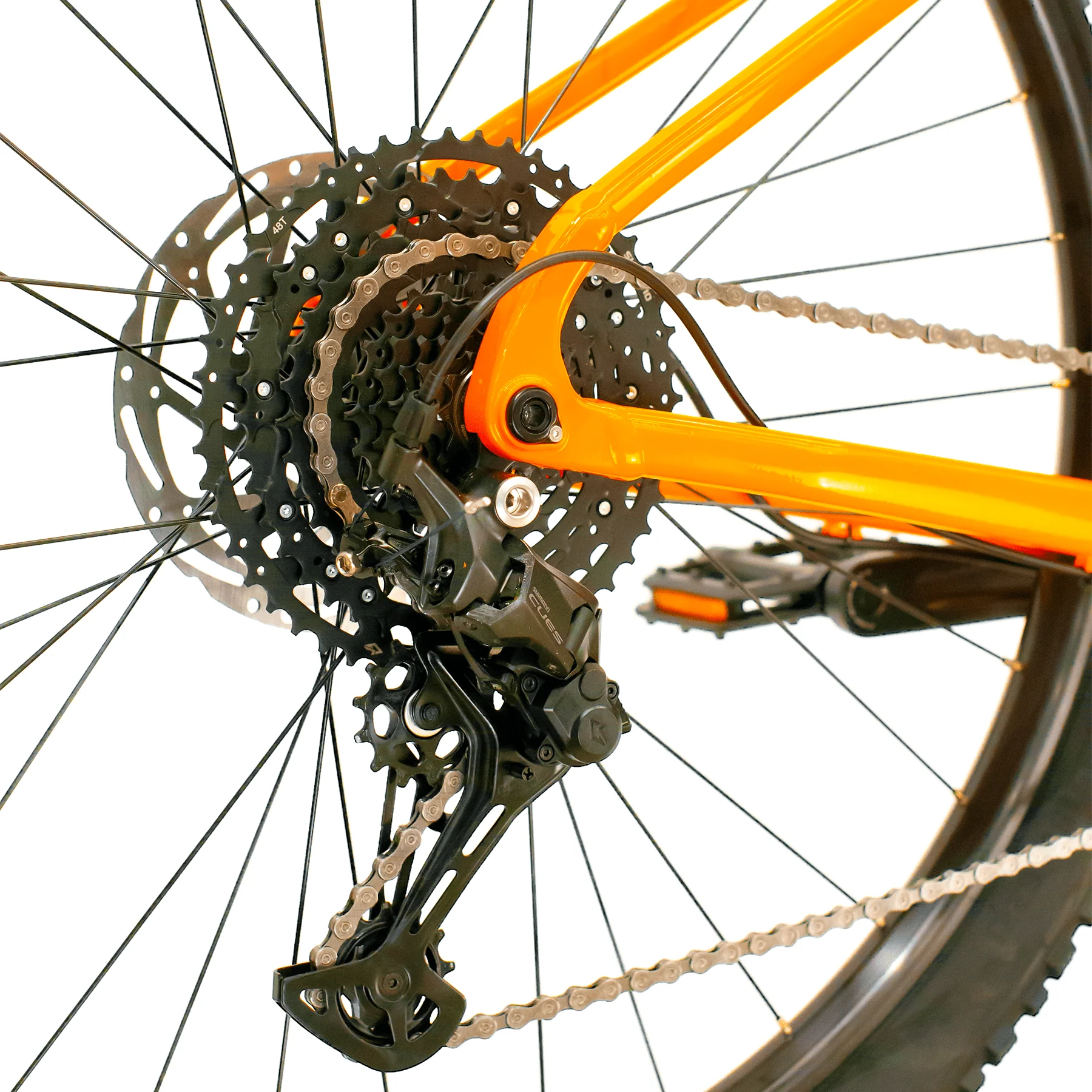

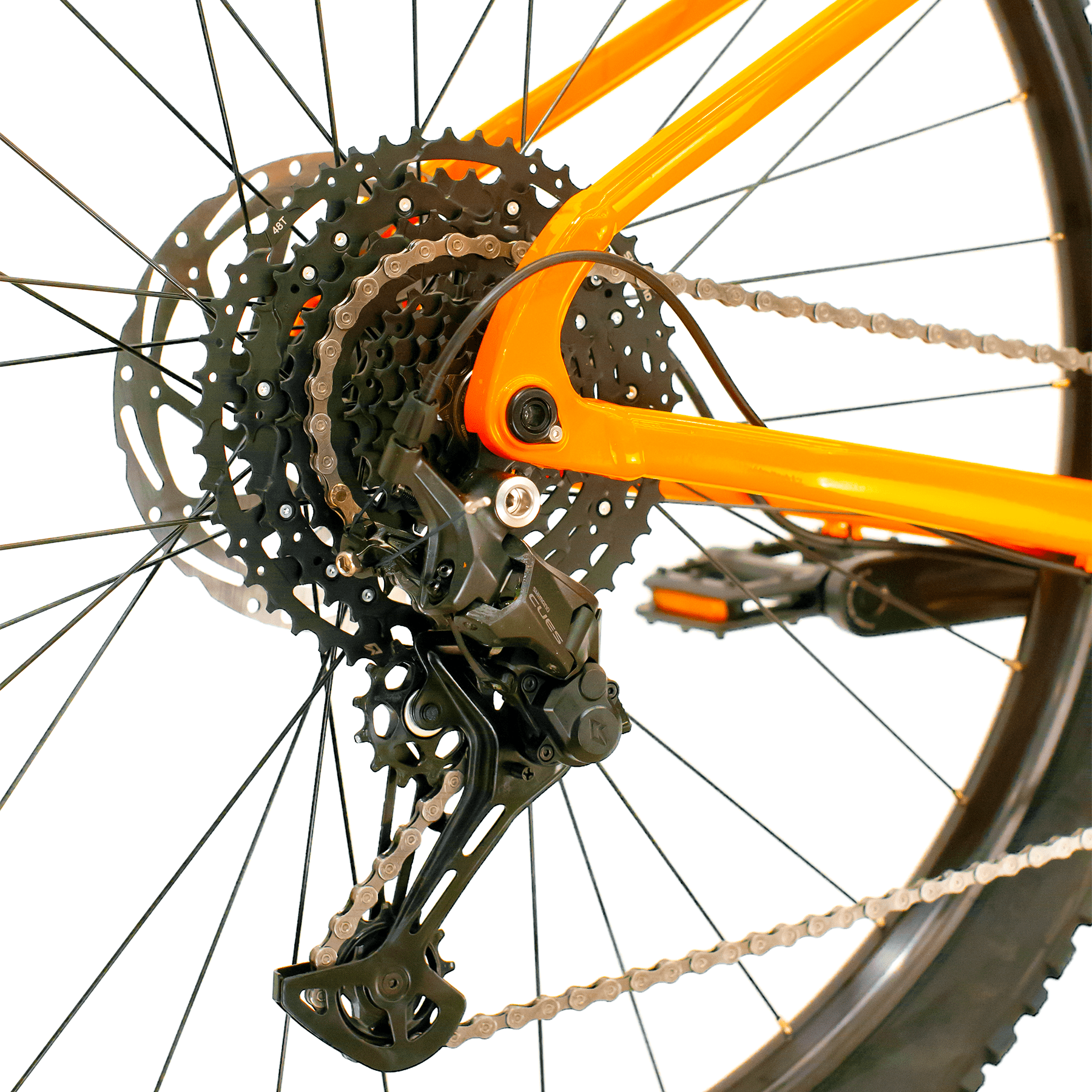

REAR DERAILLEURShimano RD-U6020-10, CUES, 10-speed, direct attach
CASETTE / FREEWHEELShimano CS-LG400-10, 10-speed, 11–48T
CHAINKMC XGlide chain, silver, 10-speed
BRAKES
FRONT BRAKETektro HD-M275 hydraulic disc brake with 180mm rotor
REAR BRAKETektro HD-M275 hydraulic disc brake with 180mm rotor
SEATING

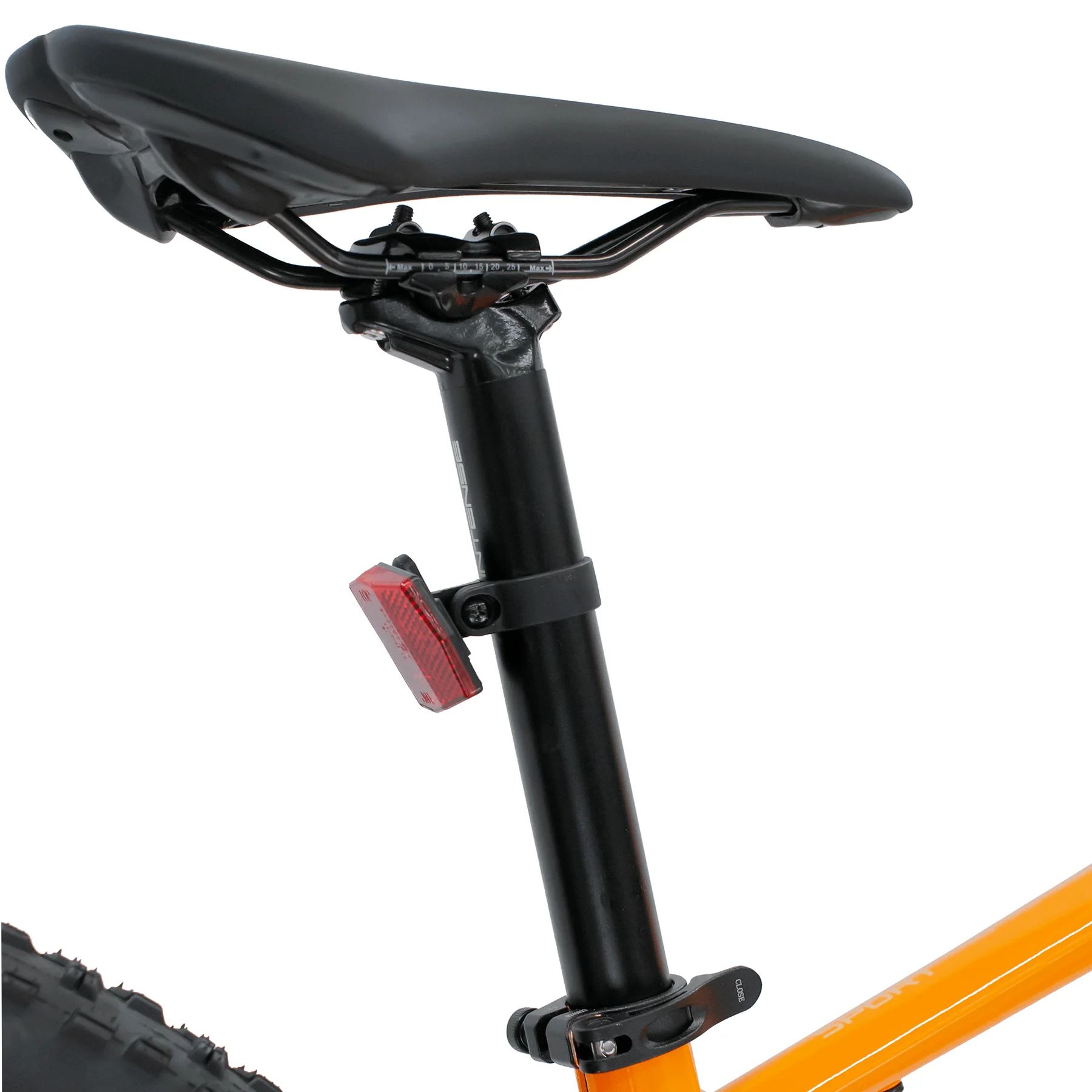

SADDLEIntense Trail Design, dual density base and cro-mo rail
SEAT POSTIntense 6061 T6 alloy seat post, 31.6mm, 400mm length, 0mm offset
SEAT CLAMPSandblasted anode sub-black aluminum seat clamp, φ35mm
PEDALVP-535 nylon body
