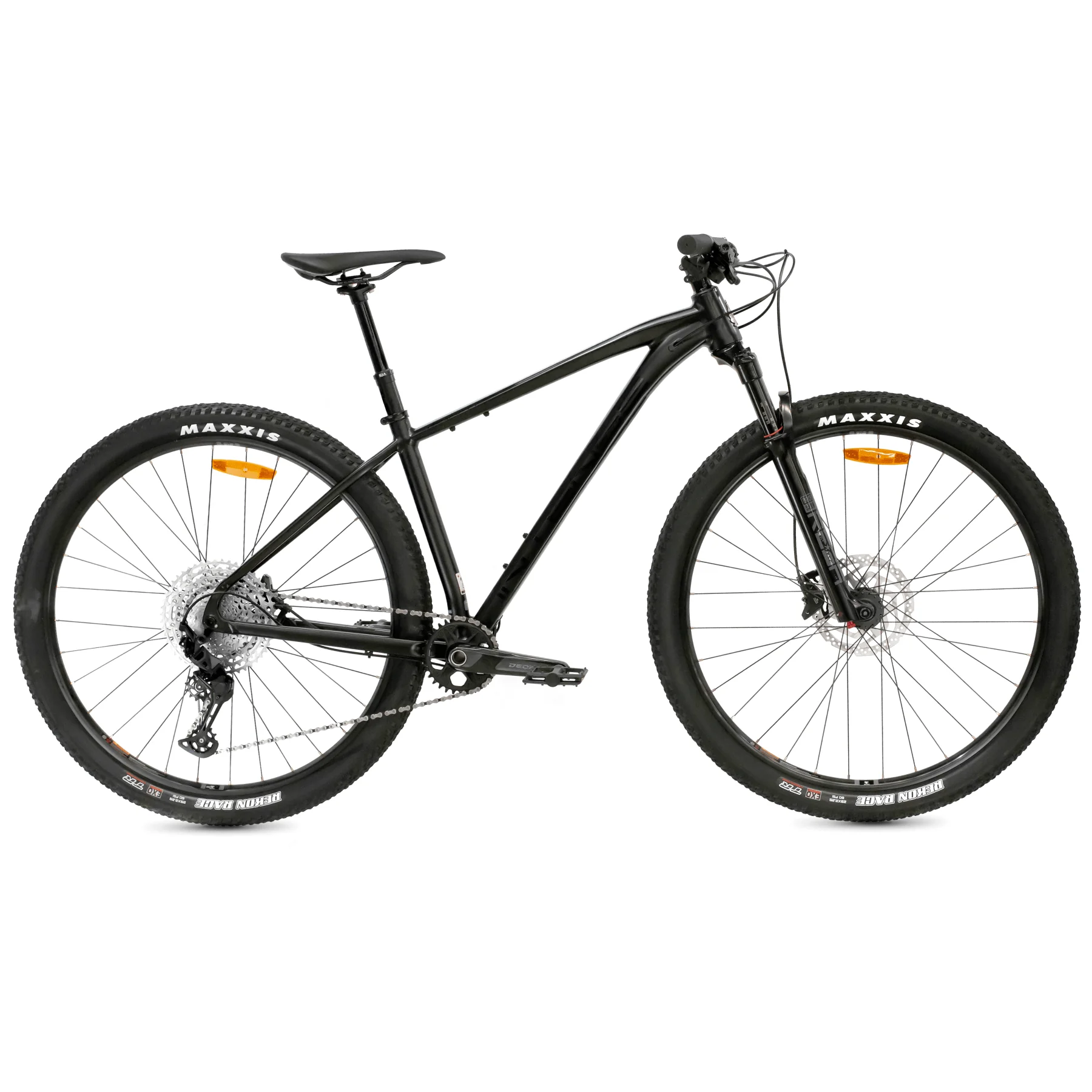

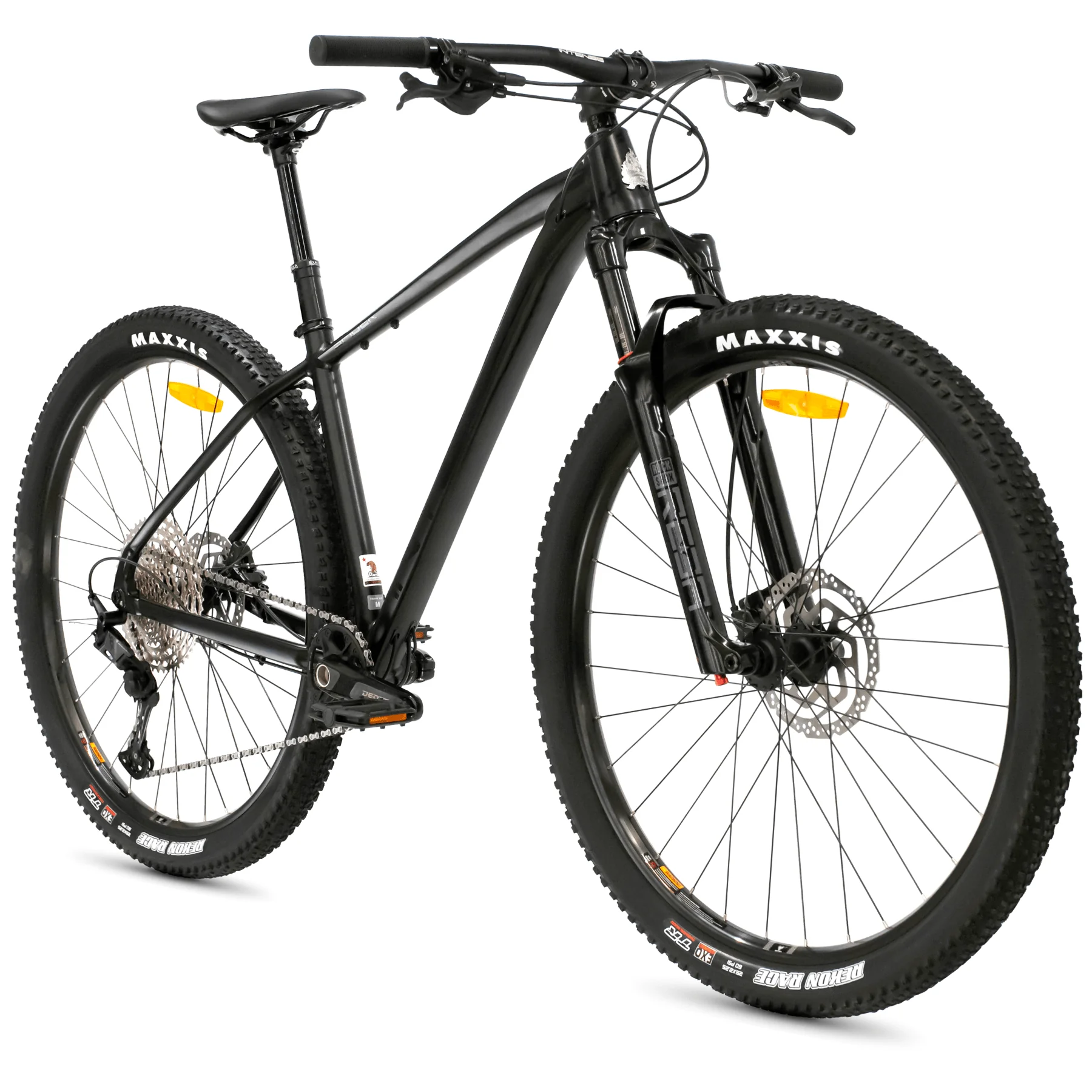

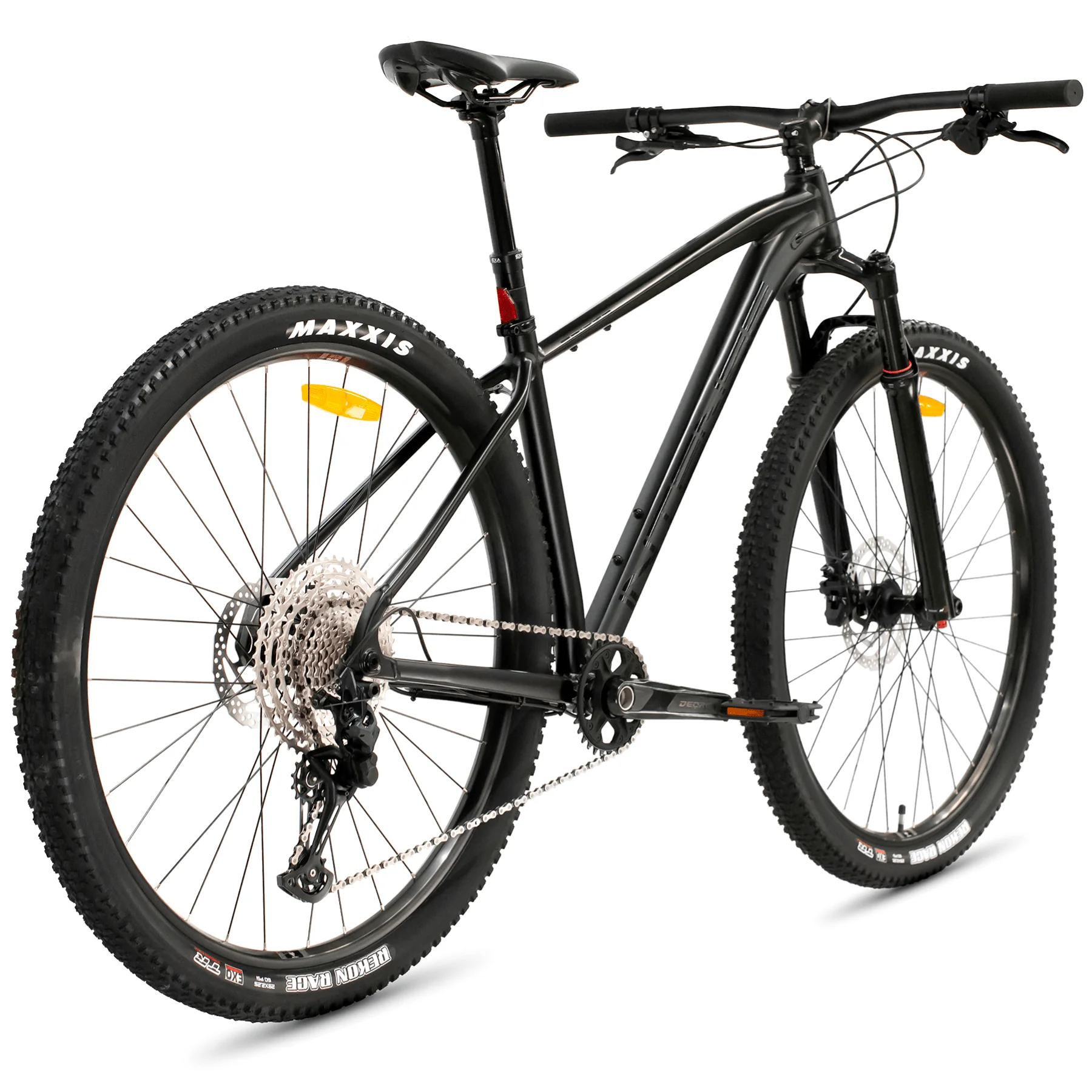

SPIDER ALLOY PRO
Built on a strong and responsive 6061 aluminum frame, the Spider Pro features a RockShox REBA RL fork with 100mm of travel and OneLoc remote. Paired with Shimano’s SLX 12-speed drivetrain and MT410 4-piston brakes, it delivers performance and durability for committed XC riders.
SIZE
BUILD SPECS
FRAME SET
FRAMEIntense XC Race Design, 6061 alloy frame, smooth and TIG-welded, with UDH rear dropout
FORKRockShox REBA RL R 29 SB 100mm, OneLoc remote, 51mm offset
HEADSETSealed bearing aluminum aheadset, 6mm cro-mo bolt, alloy top cap
HEADSET SPACERSAlloy spacers, 3 × 5mm
BAR / STEM

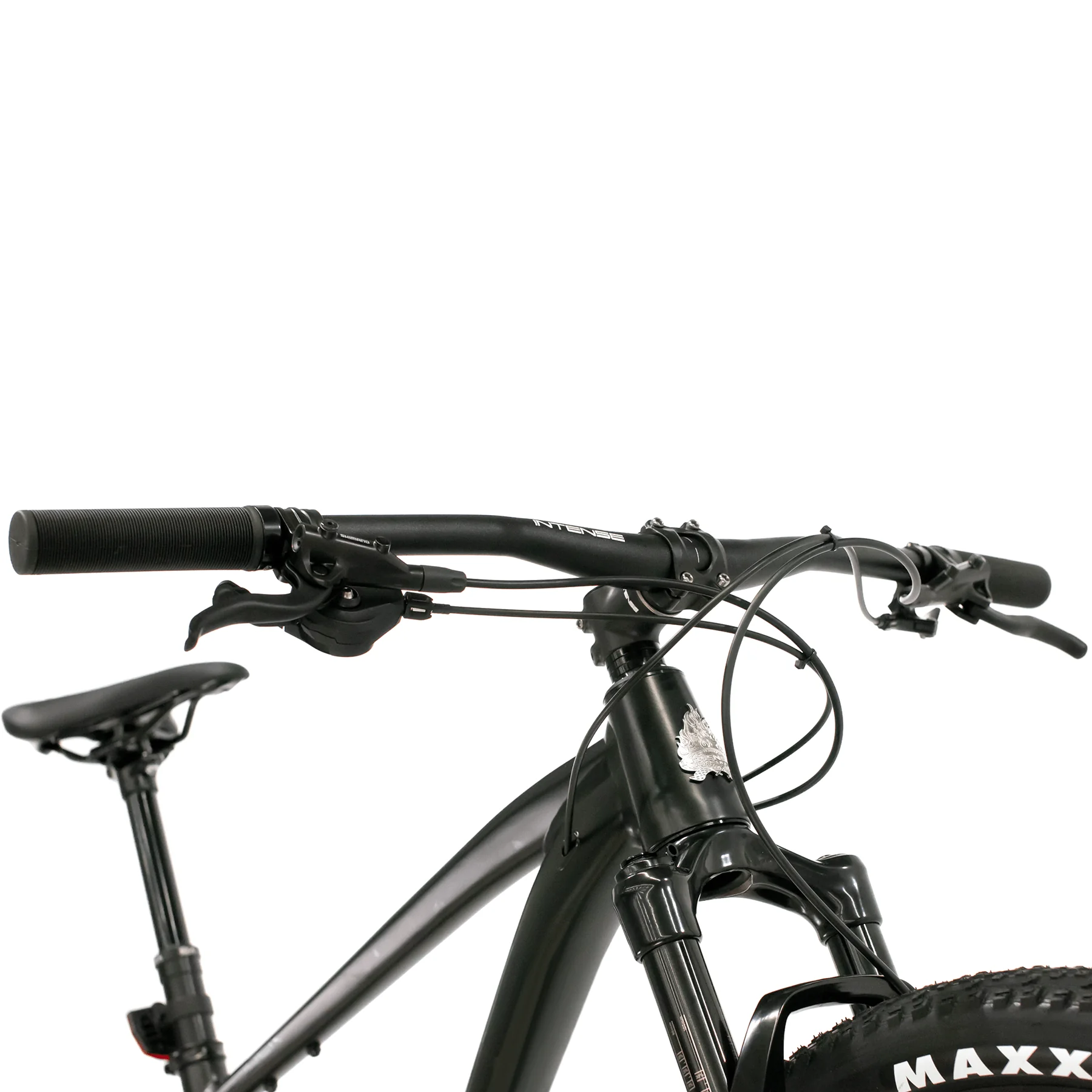

HANDLEBAR6061-T6 alloy handlebar, 760mm width, 7° back sweep, 20mm rise, 31.8mm bar bore
STEM6061 forged alloy stem, 60mm extension, 6° angle, 31.8mm bore, 40mm height
GRIPDual-density grips with alloy lock-on rings and plastic end caps
WHEEL SET
TIREMaxxis Rekon Race 29x2.25, foldable, 60 TPI, EXO/TR
RIMWTB i27 TCS 2.0, 29”, 32h, anodized black
FRONT HUBFormula 711 hub, 110mm, 6-bolt, 15mm axle, black anodized
REAR HUBFormula MST 148, 12mm axle, 148mm O.L.D., 32h, 6-bolt, anodized
SPOKEStainless steel spokes, 14G
SHIFTING DRIVE TRAIN

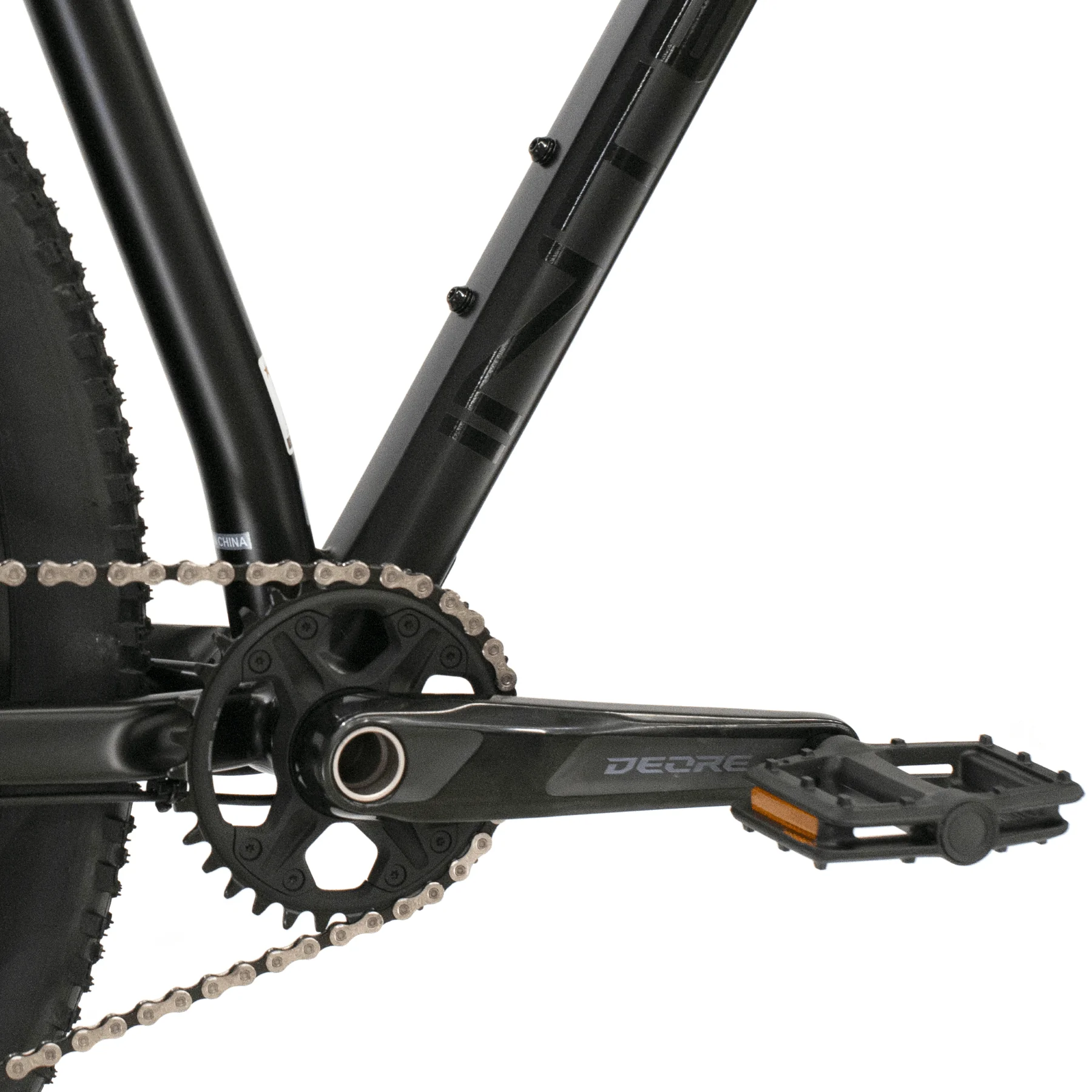

CRANKSETShimano FC-M6120-1 crankset, Deore, 32T, 175mm, Hollowtech II
BOTTOM BRACKETShimano BB-MT501 bottom bracket
REAR SHIFTERShimano SLX SL-M7100-R shifter, 12-speed, Rapidfire Plus

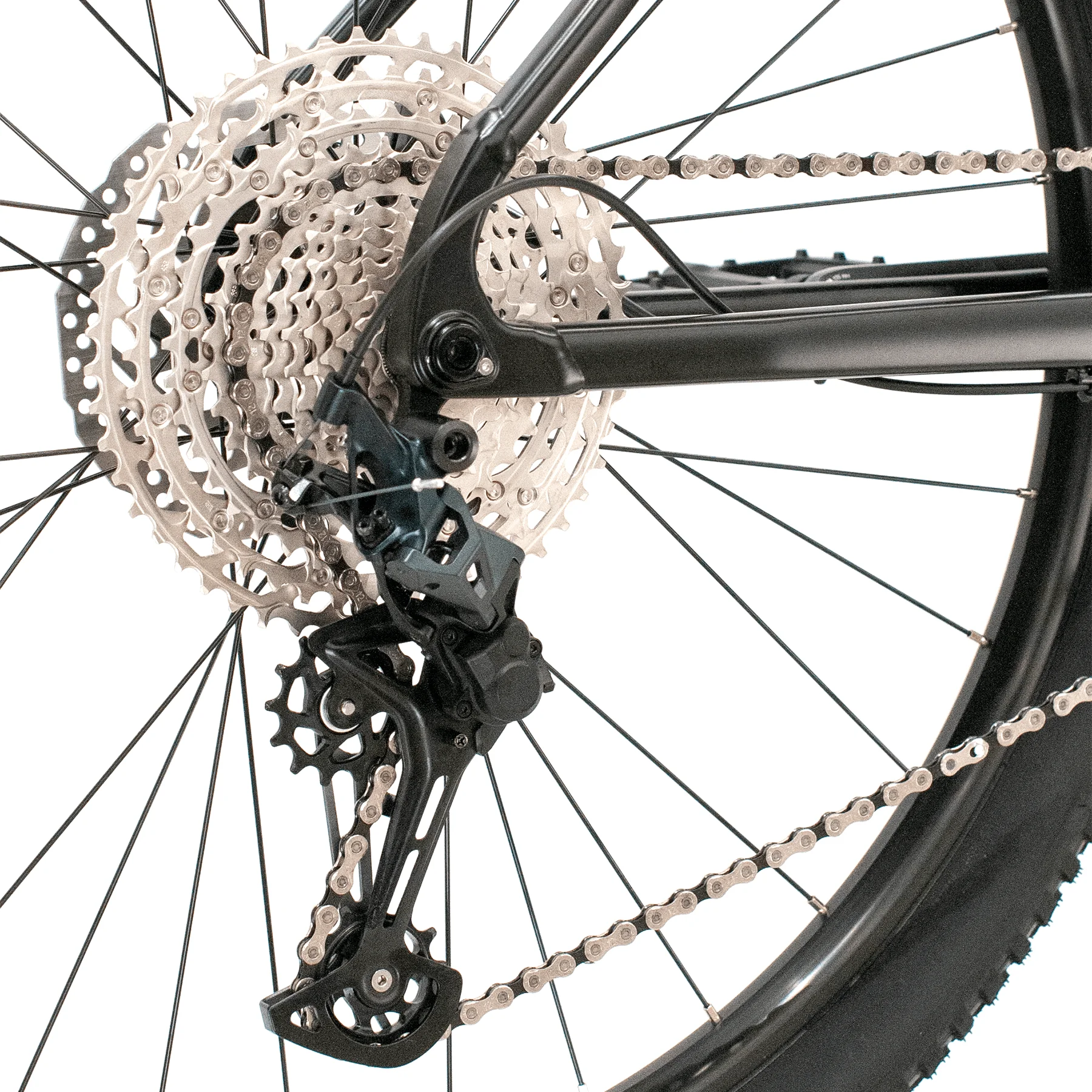

REAR DERAILLEURShimano RD-M7100-SGS rear derailleur, SLX, 12-speed
CASETTE / FREEWHEELShimano CS-M6100-12 cassette, 12-speed, 10–51T (Hyperglide+)
CHAINKMC X12, 12-speed chain
BRAKES
FRONT BRAKEShimano BR-MT410 brakes, 2-piston caliper, 180mm front rotor
REAR BRAKEShimano BR-MT410 brakes, 2-piston caliper, 160mm rear rotor
SEATING
SADDLEIntense XC saddle, dual density base, cro-mo rail

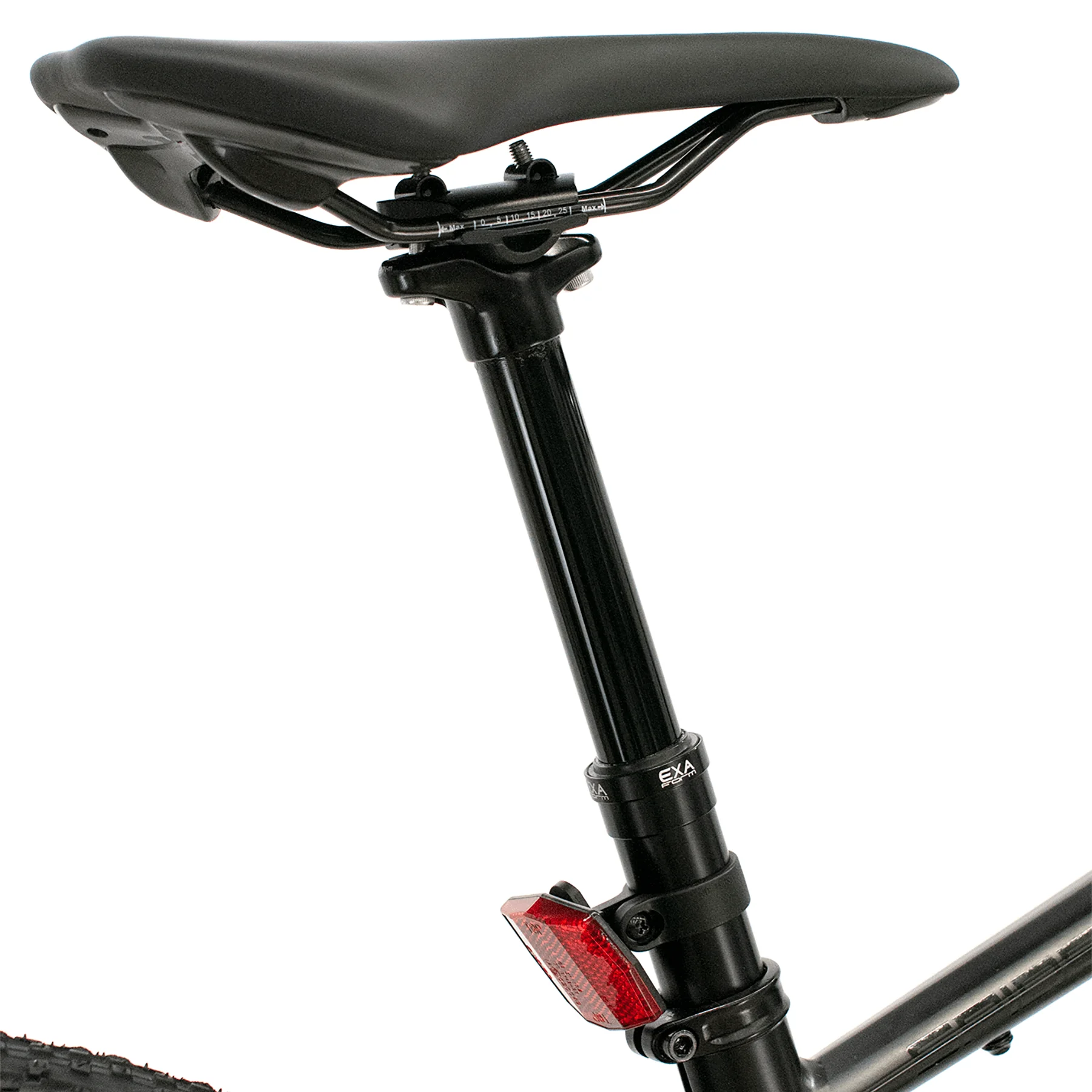

SEAT POSTKS KSP900-i dropper post, 31.6mm diameter, 125mm travel, Westy alloy lever
SEAT CLAMPAnodized black, without lever, 36.4mm
PEDALVP-535 nylon platform pedals
